Product details of the city street lights

Quick Overview

Shanghai CHZ Lighting Co.,Ltd insists on using first-class raw material. All its technical details are investigated to make sure the right quality of the product. Over the years CHZ Lighting has won the trust and recognition of consumers.

Product Description

The city street lights produced by CHZ Lighting has better quality, as shown below.

>> CHZ products are designed for the global market. Please contact our sales team for certification details.

>> Products information is for reference only. Some options may not be available for each configuration. Please contact us for further details.

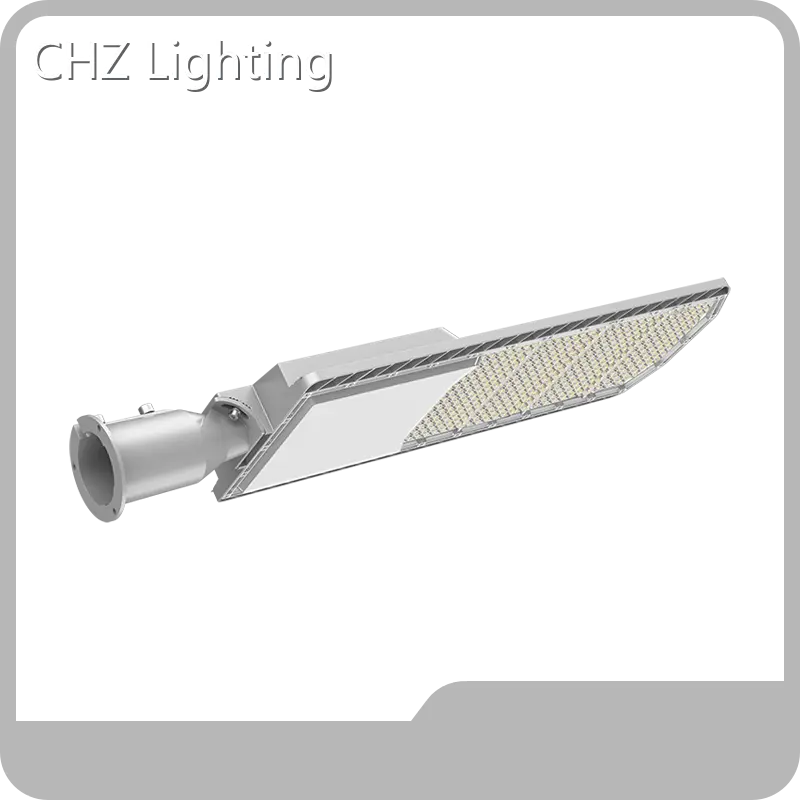

ST43 LED street light adopts high-quality LED lamp beads and PC lens, with a light efficiency of 140 lumens/watt. 50,000 hours of service life and 5-year warranty, saving 60% of electricity compared with sodium lamp. Through standardized modules + large-scale procurement, the price is 20% lower than the market. The whole lamp is light in weight and small in size, easy to transport, saving logistics costs. Whether it is urban and rural road lighting, parking lots, industrial parks and other places, it can be quickly installed and adapted.

Model No.	CHZ-ST43 series
Power	20W, 30W, 40W, 50W, 60W, 80W, 100W, 120W, 150W, 160W, 180W, 200W, 240W
Efficacy	>140lm/W
Input Voltage	100-240/277 VAC, 50/60 Hz
Power Factor	>0.95
Surge Protection	10KV (Default) / 20KV (available on request) with IEC61643-11
IP Rating	IP66
IK Rating	IK09
CCT	2200K, 3000K, 4000K, 5000K, 5700K, 6500K
CRI	Ra>70 (Default) / Ra>80
Operating Temperature	-40°C to + 50°C
Beam Angle	Type I, Type II, Type III, Type IV, Type V
Mounting Option	Side entry, or vertical pole mounted with adapters
Warranty	5 Years
Certification/Report	CE, RoHS, ENEC, CB, Zhaga-D4i, LM79, LM80, TM-21, IP66, IK09, IEC62471/62778, IEC60068-2-6, IEC61643-11, ISO9001
Control	Daylightsensor, DALI Dimmable, NEMA / Zhaga Socket, Motion Sensor, 1-10V Dimmable, Zigbee or LORA control

TYPE I

City Street Lights Street Lighting Wholesale - CHZ Lighting 20

TYPE II

City Street Lights Street Lighting Wholesale - CHZ Lighting 21

TYPE III

TYPE IV

TYPE V

City Street Lights Street Lighting Wholesale - CHZ Lighting 24

Specifications ST43

City Street Lights Street Lighting Wholesale - CHZ Lighting 25

User manual ST43

路灯案例（1）

路灯案例（2）

路灯案例（3）

路灯案例（4）

路灯案例（5）

路灯案例（6）

Frequently Asked Questions

What is the power range of LED street lights? What scenarios are suitable for?

Our LED street lights cover a power range of 30W-300W. 30W-80W is suitable for community trails, 100W-150W is suitable for main roads, and 200W and above are suitable for high-brightness demand scenarios such as highways/ports.

How many options are there for the color temperature of street lights? Which one is more eye-friendly?

Three color temperatures are provided: 3000K (warm yellow), 4000K (neutral white), and 5000K (cold white). 4000K is closest to natural light, with low glare, and is suitable for sidewalks and residential areas.

What is the difference between protection levels IP65 and IP66?

IP65 is dustproof and low-pressure water spray, IP66 is resistant to high-pressure water spray (such as typhoon weather), and IP66 is recommended for coastal areas.
