Product details of the led lawn lighting

Quick Overview

Gorgeous design of led lawn lighting shows Shanghai CHZ Lighting Co.,Ltd's advanced technologies. The product performance has been greatly improved by our innovative R&D team. With the above excellent characteristics, the product has good competitiveness and good development prospects.

Product Information

led lawn lighting's outstanding quality is shown in the details.

Description

Datasheet

Optics

Videos

Download

Application

FAQ

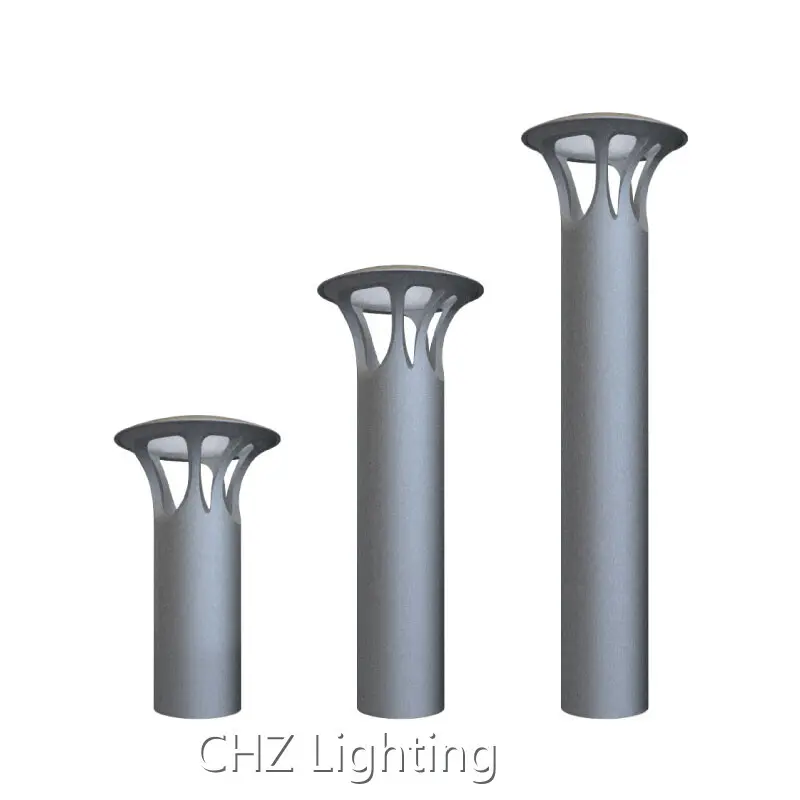

CHZ-CPL02 High Quality Smart Control Aluminum LED Lawn Light outdoor IP65 Waterproof

1. Main body is made of Die-casting aluminum alloy with Extruded aluminum alloy.

2. The diffuser is a frosted anti-UV glass for high efficiency and vandal resistance.

3. Lumileds2835 or 3030 chip and Philips driver as regular, Tridonic, Eaglerise, Kegu driver options.

4. Easy access to LED and driver via a removable head.

5. Tamper proof fixings for increased vandal resistance.

6. Anti-UV electrostatic powder spraying, Black, Silver, RAL7043, RAL7016 color optional.

Model No.	CHZ-CPL02 series
Power	10~20W
Efficacy	>60lm/W
Input Voltage	200-240 VAC, 50 / 60 Hz
Power Factor	>0.9
IP Rating	IP65
IK Rating	IK08
CCT	2200K, 3000K, 4000K, 5000K, 5700K, 6500K
CRI	Ra>80
Operating Temperature	-40°C to + 50°C
Beam Angle	120°
Mounting Option	Side entry, or vertical pole mounted with adapters
Warranty	5 Years
Certification/Report	CE, CB, RoHS,  Zhaga-D4i, LM79, LM80, TM-21, IP65, IK08, IEC62471/62778, IEC60068-2-6, IEC61643-11, ISO9001
Control	Daylightsensor, DALI Dimmable, NEMA / Zhaga Socket, Motion Sensor, 1-10V Dimmable, Zigbee or LORA control



120°

×

Specifications CP02

User manual CPL02

路灯案例（1）

路灯案例（2）

路灯案例（3）

路灯案例（4）

路灯案例（5）

路灯案例（6）

Frequently Asked Questions

What is the typical power of an LED lawn light? What area is suitable for lighting?

Power and Coverage:

3W-5W: A single lamp has a 1.5-2m illumination radius, suitable for path edges or decorative areas (e.g., four lamps in an 8㎡ area);

10W: Covers a 3-4m radius, suitable for accent lighting in the center of a lawn;

Multiple lamps: A total power of 0.5-1W per square meter is recommended to avoid excessive brightness and light pollution.

What is the difference between IP65 and IP67 waterproof ratings for lawn lights?

Waterproof Rating Comparison:

 IP65 | Rainproof (spray test) | Withstands daily water exposure, but prolonged water accumulation may penetrate

IP67 | Withstands temporary immersion up to 1 meter | Suitable for low-lying areas prone to water accumulation (such as around fountains)

✅ Recommendation: Choose IP65 for ordinary lawns, choose IP67 around water features and install drainage holes.

How long can solar lawn lights last in rainy winter weather?

Battery life (based on a 6W lamp with a 2000mAh battery):

Sunny: Charge during the day, stay on for 8 hours at night, for 3 days of continuous operation;

Rainy: Battery life is reduced to 1-2 nights (optional dual photovoltaic panels can increase charging efficiency by 30%).

⚠ Note: Temperatures below -20°C require a low-temperature lithium battery (such as lithium iron phosphate).
