Product details of the solar led street light

Product Introduction

The production of solar led street light adopts innovative technology and superior materials. Shanghai CHZ Lighting Co.,Ltd thinks highly of the performance of solar led street light which is used to be economical and eco-friendly. Shanghai CHZ Lighting Co.,Ltd has a wealth of manufacturing experience.

>> CHZ products are designed for the global market. Please contact our sales team for certification details.

>> Products information is for reference only. Some options may not be available for each configuration. Please contact us for further details.

Model No.	CHZ-GD32 series
Power	20W, 30W, 40W, 50W, 60W, 90W, 120W
Efficacy	>130lm/W or above
Input Voltage	100-240/277 VAC, 50/60 Hz
Power Factor	>0.95
Surge Protection	10KV (Default) / 20KV (available on request) with IEC61643-11
IP Rating	IP66
IK Rating	IK08 or IK09
CCT	2200K, 3000K, 4000K, 5000K, 5700K, 6500K
CRI	Ra>70 (Default) / Ra>80
Operating Temperature	-40°C to + 50°C
Beam Angle	Type II, Type III, Type V
Mounting Option	Side entry, or vertical pole mounted with adapters
Warranty	5 Years
Certification/Report	CE, RoHS, ENEC, ENEC+, CB, Zhaga-D4i, LM79, LM80, TM-21, IP66, IK09/IK10, IEC62471/62778, IEC60068-2-6, IEC61643-11, ISO9227, CISPR15:2018
Control	Daylightsensor, DALI Dimmable, NEMA / Zhaga Socket, Motion Sensor, 1-10V Dimmable, Zigbee or LORA control

TYPE II

150°×70°

TYPE III

140°×80°

TYPE V

140°×40°

Specifications GD32

User manual GD32

庭院灯案例08

庭院灯案例07

庭院灯案例06

庭院灯案例05

庭院灯案例04

庭院灯案例03

Frequently Asked Questions

How deep does the foundation of the garden light need to be? How to mix the concrete ratio?

Foundation standard:

3m light pole: pit depth ≥0.6m, flange size 200×200mm (with 4 M16 bolts);

5m light pole: pit depth ≥1.2m, concrete volume ≥0.3m³ (C25 ratio: cement: sand: gravel = 1:1.5:3);

Special soil: 1.5m steel pipe piles need to be driven into the silt layer to enhance stability.

Maintenance suggestions: Avoid vibration within 72 hours after pouring, and add antifreeze in winter (applicable to -15℃ environment).

How to choose the pole height of the garden light?

Golden ratio:

Trail/path: 2.5-3.5m (with 15-30W LED);

Plaza/parking area: 4-5m (with 40-60W LED);

Landscape sculpture lamp: 1.2-1.8m (mainly decorative).

Formula: Lamp pole height ≈ 0.6 × irradiation area width (e.g. 3.5m pole for 6m wide road).

What are the materials of garden lamps? Which is better, aluminum alloy or cast iron?

Comparative analysis:

✔ Die-cast aluminum alloy: lightweight (40% lighter than cast iron), corrosion-resistant (salt spray test 1000h), good heat dissipation (thermal conductivity 237W/mK), recommended for mainstream use;

✖ Cast iron: heavy and anti-destructive, but easy to rust (need galvanizing), suitable for special security places.

High-end option: stainless steel 304 (cost 30% higher, but life span 20 years+).

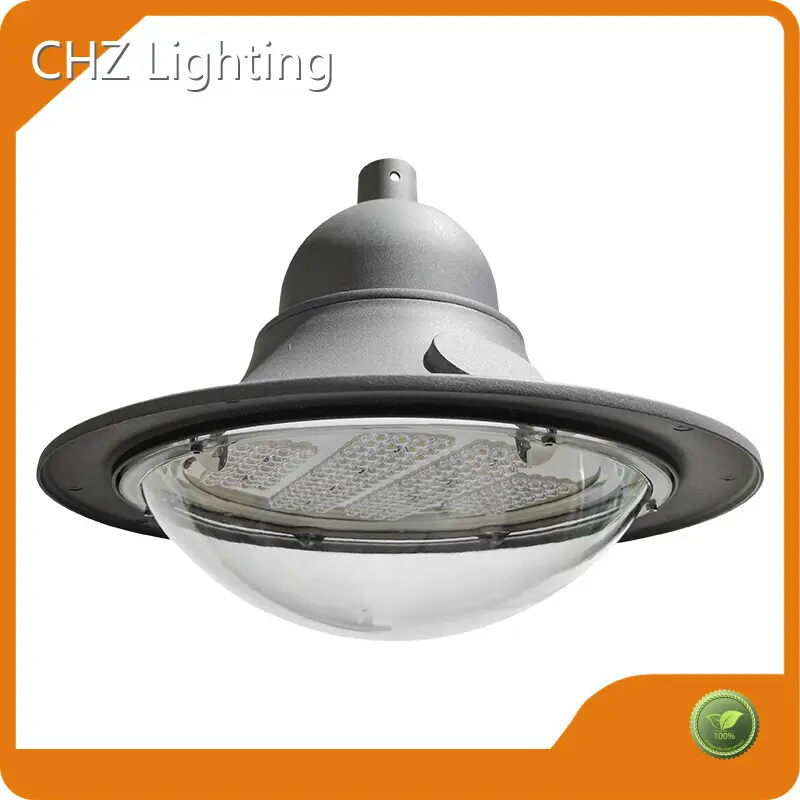

GD32 LED garden light is designed to imitate lanterns, and the installation holes are designed according to the installation method of street lights, which is convenient for construction and installation.

GD32 garden light is made of precision die-cast aluminum ADC12, and the die-casting manufacturing process has a stable structure. The surface is treated with hot-dip galvanizing and spraying, which has strong corrosion resistance and adapts to harsh and complex environments. The heat dissipation design of the power supply compartment and radiator effectively prolongs the life of the LED chip. GD32 garden light has a variety of beam angles, TYPE II, TYPE III/TYPE V optional, suitable for different application scenarios. GD32 garden light can choose timing, 0-10V, DALI dimming control mode; at the same time, NEMA and ZHAGA can be selected according to different application occasions. GD32 garden light is widely used in outdoor environments such as urban parks, rural roads, slow lanes, industrial parks, and leisure squares because of its beautiful shape, ultra-high light efficiency of 150lm/W, a service life of more than 50,000 hours, and intelligent control energy saving and consumption reduction.
