Product details of the wholesale led street lights

Product Description

CHZ Lighting wholesale led street lights is manufactured as per the industry laid guidelines. This product delivers optimum efficiency to the users. All international certificates required for wholesale led street lights exporting are available.

>> CHZ products are designed for the global market. Please contact our sales team for certification details.

>> Products information is for reference only. Some options may not be available for each configuration. Please contact us for further details.

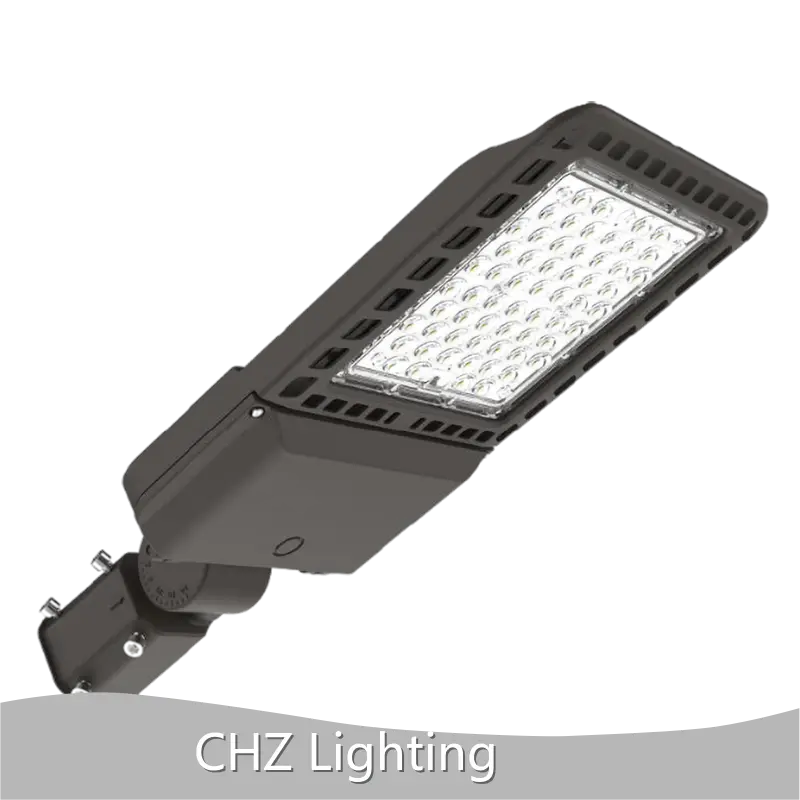

ST34 LED Road Light is a modern and beautiful outdoor lighting product with unique appearance, reliable performance, high cost performance and service life of more than 50,000 hours. It provides the ultimate solution for lighting places such as local roads, residential streets, public places, sidewalks, parking lots, tennis courts, pedestrian paths, bicycle paths, etc. It is one of CHZ's hot-selling LED road light products.

Model No.	CHZ-ST34 series
Power	20W, 30W, 40W, 50W, 60W, 80W, 100W, 120W, 150W, 160W, 180W, 200W, 240W, 250W, 300W
Efficacy	>160lm/W
Input Voltage	100-240/277 VAC, 50/60 Hz
Power Factor	>0.95
Surge Protection	10KV (Default) / 20KV (available on request) with IEC61643-11
IP Rating	IP66
IK Rating	IK09
CCT	2200K, 3000K, 4000K, 5000K, 5700K, 6500K
CRI	Ra>70 (Default) / Ra>80
Operating Temperature	-40°C to + 50°C
Beam Angle	Type I, Type II, Type III, Type IV, Type V
Mounting Option	Side entry, or vertical pole mounted with adapters
Warranty	5 Years
Certification/Report	CE, RoHS, ENEC, CB, Zhaga-D4i, LM79, LM80, TM-21, IP66, IK09, IEC62471/62778, IEC60068-2-6, IEC61643-11, ISO9001
Control	Daylightsensor, DALI Dimmable, NEMA / Zhaga Socket, Motion Sensor, 1-10V Dimmable, Zigbee or LORA control

TYPE I

TYPE II

TYPE III

TYPE IV

TYPE V

Wholesale Led Street Lights by CHZ Lighting-1 22

Specifications ST34

Wholesale Led Street Lights by CHZ Lighting-1 23

User manual ST34

路灯案例（1）

路灯案例（2）

路灯案例（3）

路灯案例（4）

路灯案例（5）

路灯案例（6）

Frequently Asked Questions

Compared with traditional sodium lamps, how is the energy saving effect?

Energy saving is more than 60%. The brightness of 100W LED street lamp is ≈ 250W sodium lamp. The electricity fee is calculated at US$0.8/kWh, and the annual saving is about US$700/lamp.

Are there any requirements for the height of the lamp pole during installation?

The recommended installation height is 6-8 meters (power ≤100W) and 8-12 meters (power ≥150W). We provide free installation solution design services.

Can the street lamp be dimmed remotely?

Support 4G/WiFi intelligent control system, and the APP can set the time-sharing dimming (such as automatically reducing to 50% brightness after 23 o'clock).

Related Products

Wholesale Led Street Lights by CHZ Lighting-1 30

CHZ-ST42 LED street light easy to install and maintain

CHZ-ST43 LED Street Lights Economical and quality-assured

CHZ-ST44 Economical LED Street Luminaires

Wholesale Led Street Lights by CHZ Lighting-1 33

CHZ-ST45 Smart Street Light with NEMA or ZHAGA , 0-10v DALI2 D4i

Related Blogs

Wholesale Led Street Lights by CHZ Lighting-1 34

Why Select LED Light for Outdoor Streets?

Wholesale Led Street Lights by CHZ Lighting-1 35

Choosing the Right LED Parking Lot Lights for Maximum Security and Efficiency

The Future of Urban Illumination: The Benefits of LED Street Lights

Why LED Street Light Fixtures are the Smarter Choice?

What do You Need to Know about LED Street Lighting Fixtures?

A Guide to Choosing the Perfect LED Street Light Manufacturer

Illuminating the Path: Explaining Modern Road Lighting Solutions

Illuminating the Future: Integrating Solar Energy into Roadway Lights

Best led street light manufacturer, factory, and supplier in China

We are a led street light manufacturer, factory, and supplier in China since 2013 and also a high-tech enterprise in Shanghai. The factory is ISO9001, ISO14001, ISO45001, and ISO50001 certified. We are very good at designing, producing, and developing various high-quality road lights.

OEM/ODM is acceptable for us. All the smart street light is made of good materials for up to 100,000hrs, ENEC, CB, and CE RoHS certificates. The Photocell, NEMA/ZHAGA socket, smart control, 0-10V, DALI, DALI2, and DC12V-48V low voltage can be available.

Please feel free to consult all questions about street lighting projects. We will provide free road lighting design, the best products, the best service, and the price you like.

Why choose us as your street lights supply in China?

Wholesale Led Street Lights by CHZ Lighting-1 43

OEM/ODM

Available to do OEM/ODM for all street luminaire. No MOQ limits for led street lights retailers, wholesalers, and engineering companies.

Wholesale Led Street Lights by CHZ Lighting-1 44

FAST DELIVERY TIME

As a reliable street light supplier, we have stocks of raw materials for street lights, regular delivery time is 5~7 working days for samples and 20~25 working days for bulk.

Wholesale Led Street Lights by CHZ Lighting-1 45

BEST QUALITY&PRICE

We use top stable quality led driver and chips like Philips driver and chips for all road lights. Providing 5/7 years warranty at the cheapest price.

Wholesale Led Street Lights by CHZ Lighting-1 46

CERTIFICATES

Our smart street light are ENEC, ENEC+, CB, CE, RoHS, IECEE, SAA, and ETL approved, and our factory ISO9001, ISO14001, ISO45001, and ISO50001 certified.

Certification Show

As a professional manufacturer of led street light luminaire, our street luminaire have rich certification and test reports, such as ENEC, ENEC+, CE, CB, ROHS, IEC62471, LM80, LM79, and so on

ISO9001

ISO14001

ISO45001

ISO50001

ENEC

ENEC+

CCC

ETL

SAA

COMPONENT	STANDARDS	TEST REPORT	CERTIFICATIONS
LED chips	LM80	✔
SMD2835SMD3030SMD5050SMD3535SMD3737	EN/IEC 60598-1 y 60598-2-3	✔	✔
	IEC 62471	✔
	EN/IEC 60529	✔
	EN/IEC 62262	✔
	EN/IEC 60068-2-75	✔
	EN/IEC 55015	✔	✔
	EN/IEC 61000-3-2	✔	✔
	EN 61547	✔	✔
	EN 61000-3-3	✔	✔
	LM79	✔
	ISTMT	✔
	TM-21	✔
	LM82	✔
	LM84	✔
	ISO9007 /ASTM B117	✔
	IEC 60068-2-6/ANSI C136.31	✔
LED MODULE	EN/IEC 62031	✔
LED DRIVER	IEC 62384,IEC 61347-1,IEC 61347-2-13	✔	✔
SPD	EN/IEC 61643-11	✔	✔
FACTORY	ISO9001,ISO14001,ISO50001,ISO45001		✔

R & D Team

研发图片 (1).png

研发图片 (6).png

研发图片 (7).png

研发图片 (2).png

研发图片 (4).png

研发图片 (5).png

Product Testing

In order to ensure the high quality of each product, we will conduct more than 30 different aspects of testing in our own laboratory before the product goes on the market. After all the tests are passed, the product can be approved for marketing. In mass production, for some basic safety and performance tests, we will conduct 100% testing to ensure that every product delivered to the customer is perfect.





Production Process

生产图片 (3).png

生产图片 (2).png

生产图片 (1).png

生产图片 (6).png

生产图片 (5).png

生产图片 (4).png

Company Advantage

• After years of stable development, CHZ Lighting has gained a good recognition and support in the industry.
• CHZ Lighting has a professional R&D team and an experienced technical team to promote the production of high-quality products.
• We provide quality and perfect service for the vast number of customers with our sincere attitude. And we have received great acclaim from customers because of that.
Our products are of high quality and great safety. Besides, they are packed tightly and shockproof. Customers can rest assured to purchase our products and are warmly welcomed to contact us for details.

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
