    Overview
    Quick Details
    Lighting solutions service:
    DIALux evo layout
    CRI (Ra>):
    70
    Beam Angle(°):
    60°/90°/120° /140*100°
    Working Lifetime(Hour):
    50000
    Lamp Body Material:
    Aluminum Alloy and PC
    IP Rating:
    IP66
    Certification:
    ce, EMC, LVD, RoHS
    Place of Origin:
    Shanghai, China
    Brand Name:
    CHZ
    Model Number:
    CHZ-FL31
    Application:
    Sports Stadiums
    Light Source:
    LED
    Lamp Luminous Flux(lm):
    139200
    Working Temperature(℃):
    -20℃~+50℃
    Warranty(Year):
    5-YEAR
    LED Chip:
    SMD 3030
    Lumen:
    145lm/w
    Power Factor:
    PF>0.95
    CCT:
    4000k - 5700K
    Surge Protection:
    4KV
    Working Humidity:
    10%~90%
    Warranty:
    50000hrs/5years
    Luminous Efficacy(lm/w):
    145
    Input Voltage(V):
    AC100-277V
    Supply Ability
    Supply Ability:
    10000 Piece/Pieces per Month
    Product Description

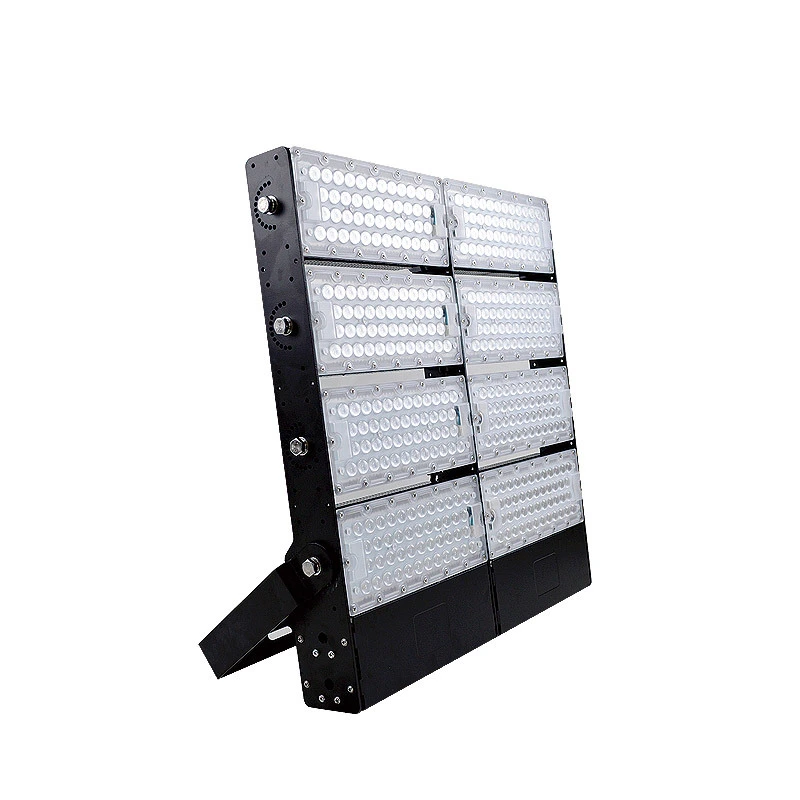

    100-277v input explosion proof 1000w led floodlight dmx china flood lighting for sale



    Specification sheet of high power led stadium lights CHZ-FL31:

    Model

    FL31-240W2

    FL31-480W4

    FL31-720W6

    FL31-960W8

    FL31-1200W10

    Power

    240W

    480W

    720W

    960W

    1200W

    LED type

    SMD3030

    LED's

    2x184

    4x184

    6x184

    8x184

    10x184

    Serialization

    1*48P8S

    2*48P8S

    3*48P8S

    2*48P8S

    3*48P8S

    Light effect

    >145LM/W

    CCT

    4000K~5700K

    CRI

    >70

    Operating Voltage

    100-277V

    Drive type

    No dimming/ 0-10V dimming/ Dali dimming, for options

    PF

    >0.95

    Protection level

    IP66 / IK10

    Lamp size (mm)

    572x272x117

    616x542x182

    752x542x225

    616x542x182

    752x542x225

    Beam angle

    60° /90° /120°/140°x100°,Optional

    Lamp body material

    Die-cast aluminum lamp housing + high light transmission lens

    Operating temperature

    —30~+50

    Working humidity

    -10%~90%

    Life/warranty period

    50,000hrs / 5 Yrs
