CHZ Lighting New cob led street light factory for road

Inquiry

cob led street light description

The quality of this product is always guaranteed by our QC team. With light source well encapsulated, it has high safety performance

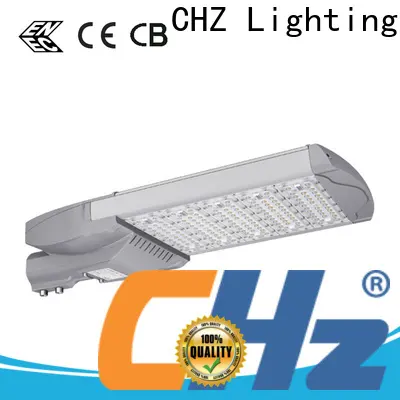

CHZ Lighting New cob led street light factory for road

cob led street light SPECIFICATIONS

MODEL	CHZ-ST12
LED CHIPS	LUMILEDS 5050 / LUMILEDS 3030
COLOR TEMPERATURE	3000K / 4000K / 5000K / 5700K / 6500K
DRIVERS	SOSEN / INVENTRONICS
REGULATION	0-10V /1-10V / Timer / DALI
VOLTAGE	100 - 277V / 200~240V
POWER FACTOR	> 0.95
ELECTRICAL CATEGORY	Class I / Class II
BEAM ANGLE	TYPE I TYPE II TYPE III TYPE V
MATERIALS	AL housing / AL heatsink / PC lens
PROTECTION(IP / IK)	IP66 - IK10
INSTALLATION	Ø 60 mm / Ø 50 mm
LIFETIME / WARRANTY	90,000 hours / 5 years
WORKING ENVIRONMENT	- 40ºC ~ + 50ºC / 10%-90%RH
CERTIFICATIONS	UL CB ENEC TUV ROHS ISO9001 ISO14001 ISO50001 ISO45001

Designed with quality heat sink fins, it features good heat dissipation. It is widely exported to over 60 countries and regions. With the housing painted and anodized, it is not prone to rust or oxidized.

Suggested Videos

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
