CHZ wholesale led street light suppliers bulk production
1. CHZ has great quality. It is produced through a series of rigorous quality inspections which is in line with EMI, IEC, and RoHS standards. With light source well encapsulated, it has high safety performance
2. Being a reliable wholesale led street light supplier, CHZ also focuses on the quality of the service. Going through salt spray test up to hundreds of hours, it is highly resistant to corrosion
3. The product has good temperature resistance. It's not susceptible to deform under high temperatures or low temperatures conditions. It is widely exported to over 60 countries and regions

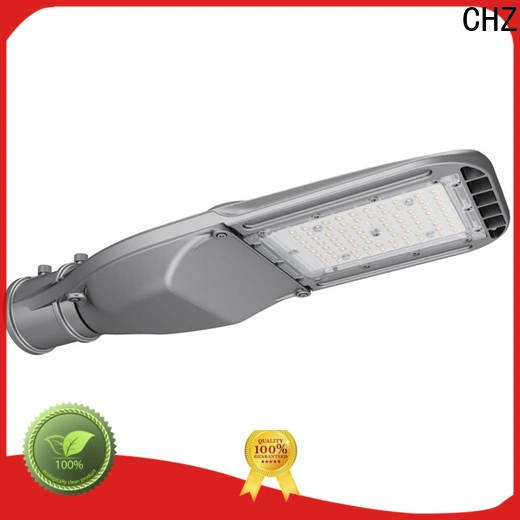

Professional competitive price outdoor public lighting mini led street light class ii road lamp 7 years warranty With
Product details
Model | ST25-28W | ST25-38W | ST25-57W |
Power | 28W | 38W | 57W |
LED type | Lumileds 2D 3030 | Lumileds 2D 3030 | Lumileds 2D 3030 |
LED Qty | 40 PCS | 56 PCS | 80 PCS |
Connection | 5P8S | 7P8S | 10P8S |
Chips Volt | 48V | 48V | 48V |
Chips Current | 500mA | 700mA | 1050mA |
Input Volt | 100-244V/277V | 100-244V/277V | 100-244V/277V |
Power factor | >0.95 | >0.95 | >0.95 |
Lumen | >135 lm/w | >130 lm/w | >130 lm/w |
Color temperature | 3000K/4000K/5000K/5700K | ||
Color Render | >70 | >70 | >70 |
Beam Angle | 145°x 75°(TYPE II) | 145°x 75°(TYPE II) | 145°x 75°(TYPE II) |
Product size | 447X179X77(mm) | 447X179X77(mm) | 447X179X77(mm) |
Light material | Diecast body AL + PC lens | ||
Degree of protection | IP66&IK10 | ||
Working temp | —40℃~+50℃ | ||
Work humidity | 10%~90% | ||
Lifetime/Warranty | 50,000 hours / 5 years | ||
Features:
Light shell integrated cooling technology, efficient heat dissipation performance;
Dual couping IP68 protection, high waterproof rating;
Intelligent constant current drive technology, breakthrough power supply life bottlenecks;
Use high-quality SMD3030 &5050 chips and intelligent drive, to reach high luminous efficiency, stable performance, long life. Performance-cost rate is pretty high, warranty time is 7 years.
Applications:
Wilely used in trunk roads, higways, elevated roads, streets, bridges, sidewalks and other rad ligting, as well as squares, schools, parks and other outdoor lighting needs.
Company Features
1. Shanghai CHZ Lighting Co.,Ltd is experienced in the industry and is the [OD Keyword] global ODM/OEM manufacturer. In order to become one of the most influential companies, CHZ has been committed to producing wholesale led street light with high quality.
2. CHZ masters highly advantageous production technology.
3. CHZ carries out technological innovation and maintains competitiveness in the all in one street light industry. Shanghai CHZ Lighting Co.,Ltd has accumulated a lot of OEM and ODM customization experience. Get more info!
Shanghai CHZ Lighting Co.,Ltd
Founded in 2013, it is a high-tech enterprise engaged in the research and development and production of LED lighting products.
