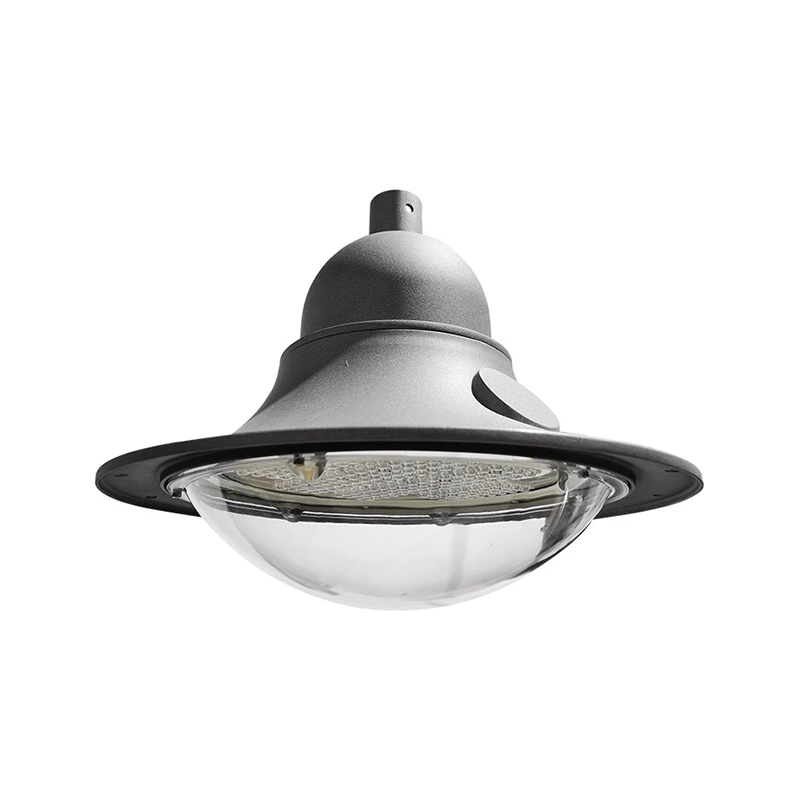

CHZ-GD32 round led garden lamp

Product Features
Wide power range: 20W~120W
High luminaire efficiency up to 130lm/W or above
Full die-casting aluminum housing(ADC12)
Class I, and Class II are optional
IP66 & IK08 or IK09
A variety of asymmetrical or symmetrical light distributions
Driver and SPD are easy to take off for replacement
0-10V+T /DALI+T Dimming
Surge Protection: 10 KV or 20KV

Inquiry

Write a Review

>> CHZ products are designed for the global market. Please contact our sales team for certification details.

>> Products information is for reference only. Some options may not be available for each configuration. Please contact us for further details.

Model No.	CHZ-GD32 series
Power	20W, 30W, 40W, 50W, 60W, 90W, 120W
Efficacy	>130lm/W or above
Input Voltage	100-240/277 VAC, 50/60 Hz
Power Factor	>0.95
Surge Protection	10KV (Default) / 20KV (available on request) with IEC61643-11
IP Rating	IP66
IK Rating	IK08 or IK09
CCT	2200K, 3000K, 4000K, 5000K, 5700K, 6500K
CRI	Ra>70 (Default) / Ra>80
Operating Temperature	-40°C to + 50°C
Beam Angle	Type II, Type III, Type V
Mounting Option	Side entry, or vertical pole mounted with adapters
Warranty	5 Years
Certification/Report	CE, RoHS, ENEC, ENEC+, CB, Zhaga-D4i, LM79, LM80, TM-21, IP66, IK09/IK10, IEC62471/62778, IEC60068-2-6, IEC61643-11, ISO9227, CISPR15:2018
Control	Daylightsensor, DALI Dimmable, NEMA / Zhaga Socket, Motion Sensor, 1-10V Dimmable, Zigbee or LORA control

TYPE II

150°×70°

TYPE III

140°×80°

TYPE V

140°×40°

Specifications GD32

User manual GD32

庭院灯案例08

庭院灯案例07

庭院灯案例06

庭院灯案例05

庭院灯案例04

庭院灯案例03

Frequently Asked Questions

What's customized dimming profile?

The so-called dimming profile refers to a specific timer dimming function. Rural roads and urban roads have different needs for dimming configurations. At the same time, the timer dimming function of lamps can be customized. For example, rural roads usually have fewer people after 10 p.m., and the dimming curve can be maintained at 100% brightness from 18:00 to 22:00, and adjusted to 50% brightness from 22:00 to 06:00; while the situation on urban roads may require delaying the time by 1-2 hours. The dimming curve can be set to maintain 100% brightness from 18:00 to 24:00, and adjust to 50% brightness from 24:00 to 06:00. CHZ can customize such a dimming curve for you, please contact us for more information.

Dali +timer dimming or 0-10V+timer dimming?

Dimming profile uses the dimming function of the lamp. For example, if 0-10V + timer dimming is used, after setting the timer dimming of the lamp, the controller sends a 0-10V dimming signal to the power supply of the lamp, but the power supply will not perform the dimming operation. And if your lamp is configured with Dali + timer dimming, then after setting the timer dimming, the controller sends a Dali dimming signal to the power supply of the lamp, and the power supply can still execute the instructions of the Dali signal. However, it should be noted that the cost of lamps in the latter is often much higher than that in the former. If your budget is limited, it is recommended to choose the former; if your budget is sufficient, it is best to choose the latter.

Which power supplies can be configured with timer dimming function?

Power supply manufacturers such as Inventronics, Osram, Philips, Done, and Meanwell all provide scheduled dimming functions. CHZ recommends using the timed dimming function of Inventronics, because Inventronics is comparable to Philips and Osram in terms of dimming and product quality, and the price is more affordable. If your budget is limited, Dong’s power supply is also a good choice.

Related Products

CHZ-GD01A outdoor garden light

CHZ-GD02 LED Garden Lighting

CHZ-GD35 Series LED Garden Light Fixture Waterproof IP66

CHZ-GD36 Series LED Garden Lights IP66 with photocell

Related Blogs

CHZ garden lighting case | led garden lights GD01 in the town of Valladolid Olmedo

CHZ lighting case garden street light wholesale | Garden Lights lighting up San Diego

CHZ courtyard lightingLighting completed the road renovation project of a small town in Spain

CHZ Lighting Technology case | led luminaire street light of lighting in Palenciana (Cordoba)

CHZ-GD01A garden lights are widely used on the streets of Greece

New Garden Light Replacement Project in Spain |CHZ-GD30 garden lamp

CHZ CASE |GD34A Street light in Urban Road in URUGUAY

Courtyard lamp GD09 adds glory to Lagos hotel

Best led garden light manufacturer, factory and supplier in China

We are a LED garden light manufacturer, factory, and supplier in China since 2013. The factory is ISO9001, ISO14001, ISO45001, and ISO50001 certified. We are very good at designing, producing, and developing various high-quality led lights and we are also a high-tech enterprise in Shanghai.

OEM/ODM is acceptable for us. All garden light is made of good materials for up to 100,000hrs, ENEC, CB, and CE RoHS certificates. The Photocell, NEMA/ZHAGA socket, smart control, 0-10V, DALI, DALI2 can be available.

Please feel free to consult all questions about garden lighting projects. We will provide free garden lighting design, the best products, the best service, and the price you like.

Why choose us as your led garden light supply in China?

OEM/ODM

Available to do OEM/ODM for all garden luminaire. No MOQ limits for led garden lights retailers, wholesalers, and engineering companies.

FAST DELIVERY TIME

As a reliable garden light supplier, we have stocks of raw materials for street lights, regular delivery time is 5~7 working days for samples order and 20~25 working days for bulk order.

BEST QUALITY&PRICE

We use top stable quality led driver and chips like Philips driver and chips for all road lights. Providing 5/7 years warranty at the cheapest price.

CERTIFICATES

Our smart street light are ENEC, ENEC+, CB, CE, RoHS, IECEE, SAA, and ETL approved, and our factory ISO9001, ISO14001, ISO45001, and ISO50001 certified.

Certification Show

As a professional manufacturer of led garden light luminaire, our garden luminaire have rich certification and test reports, such as ENEC, ENEC+, CE, CB, ROHS, IEC62471, LM80, LM79, and so on

ISO9001

ISO14001

ISO45001

ISO50001

ENEC

ENEC+

CCC

ETL

SAA

COMPONENT	STANDARDS	TEST REPORT	CERTIFICATIONS
LED	LM80	✔
SMD2835 SMD3030 SMD5050 SMD3535 SMD3737	EN/IEC 60598-1 y 60598-2-3	✔	✔
	IEC 62471	✔	✔
	EN/IEC 60529	✔	✔
	EN/IEC 62262	✔
	EN/IEC 60068-2-75	✔	✔
	EN/IEC 55015	✔	✔
	EN/IEC 61000-3-2	✔	✔
	EN 61547	✔	✔
	EN 61000-3-3	✔	✔
	LM79	✔	✔
	ISTMT	✔	✔
	TM-21	✔
	LM82	✔	✔
	LM84	✔	✔
	ISO9007 /ASTM B117	✔	✔
	IEC 60068-2-6/ANSI C136.31	✔	✔
LED MODULE	EN/IEC 62031	✔	✔
LED DRIVER	IEC 62384,IEC 61347-1,IEC 61347-2-13	✔	✔
SPD	EN/IEC 61643-11	✔	✔
FACTORY	ISO9001,ISO14001,ISO50001,ISO45001		✔

R & D Team

研发图片 (1).png

研发图片 (6).png

研发图片 (7).png

研发图片 (2).png

研发图片 (4).png

研发图片 (5).png

Product Testing

In order to ensure the high quality of each product, we will conduct more than 30 different aspects of testing in our own laboratory before the product goes on the market. After all the tests are passed, the product can be approved for marketing. In mass production, for some basic safety and performance tests, we will conduct 100% testing to ensure that every product delivered to the customer is perfect.





Production Process

生产图片 (3).png

生产图片 (2).png

生产图片 (1).png

生产图片 (6).png

生产图片 (5).png

生产图片 (4).png

Parameters

Model No.	Power(W)	Chips	Chips Qty	Chips S/P	Protection Class	Lumen(LM/W)	Size(L×W×H)mm
GD32-30W	30W	SMD3030	144	8S18P	Class I	>130	φ441×357
GD32-40W	40W	SMD3030	144	8S18P	Class I	>130	φ441×357
GD32-50W	50W	SMD3030	144	8S18P	Class I	>130	φ441×357
GD32-60W	60W	SMD3030	144	8S18P	Class I	>130	φ441×357
GD32-90W	90W	SMD3030	192	8S24P	Class I	>130	φ441×357
GD32-120W	120W	SMD3030	192	8S24P	Class I / II	>130	φ441×357
GD32-30W	30W	SMD3030	192	8S24P	Class II	>130	φ441×357
GD32-40W	40W	SMD3030	192	8S24P	Class II	>130	φ441×357
GD32-50W	50W	SMD3030	192	8S24P	Class II	>130	φ441×357
GD32-60W	60W	SMD3030	192	8S24P	Class II	>130	φ441×357
GD32-80W	80W	SMD3030	192	8S24P	Class II	>130	φ441×357
GD32-100W	100W	SMD3030	192	8S24P	Class II	>130	φ441×357

Product Features

1) The simple design of the whole lamp is beautiful and generous; at the same time it can be disassembled, the package is small in size and convenient for transportation;
2) The lamp body is made of aluminum die-casting material, galvanized and surface electrostatically sprayed. The conventional colors are gray and black (Color Reference, RAL 9005/7015 RAL), the surface is smooth and corrosion-resistant;
3) The dual diffuser illuminance diffuser makes the light more uniform, no glare, and the light is more comfortable;
4) The whole lamp has good protection performance and reaches IP66 and IK09. It has reliable performance and is not easy to be damaged.
5) Imported 3030E light source and high performance drive, stable operation, high luminous efficiency and long service life;
6) It can be installed with photocell so that it easily realizes intelligent control.
