Product details of the high mast led light

Product Description

CHZ Lighting high mast led light has a rather appealing appearance due to the efforts of our own professional and innovative designers. Its design is reliable and time-tested enough to meet the challenges of the market. Our rigorous testing ensures high quality production of our products. Shanghai CHZ Lighting Co.,Ltd's commitment is to provide new high mast led light technologies to customers.

>> CHZ products are designed for the global market. Please contact our sales team for certification details.

>> Products information is for reference only. Some options may not be available for each configuration. Please contact us for further details.

Model No.	CHZ-FL32 series
Power	250W, 500W, 750W, 1000W, 1250W
Efficacy	>160lm/W or above
Input Voltage	100-240/277 VAC, 50 / 60 Hz
Power Factor	>0.95
Surge Protection	10KV (Default) / 20KV (available on request) with IEC61643-11
IP Rating	IP66
IK Rating	IK08 or IK09
CCT	2200K, 3000K, 4000K, 5000K, 5700K, 6500K
CRI	Ra>70 (Default) / Ra>80
Operating Temperature	-40°C to + 50°C
Beam Angle	10°, 25°, 45°, 60°, 90°
Mounting Option	Side entry, or vertical pole mounted with adapters
Warranty	5 Years
Certification/Report	CE, RoHS, ENEC, ENEC+, CB, Zhaga-D4i, LM79, LM80, TM-21, IP66, IK09/IK10, IEC62471/62778, IEC60068-2-6, IEC61643-11, ISO9227, CISPR15:2018
Control	Daylightsensor, DALI Dimmable, NEMA / Zhaga Socket, Motion Sensor, 1-10V Dimmable, Zigbee or LORA control

10°

25°

45°

60°

90°

CHZ Lighting High Mast Led Light Price List 30

Specifications FL32

User manual FL32

CHZ Lighting High Mast Led Light Price List 32

CHZ Lighting High Mast Led Light Price List 33

CHZ Lighting High Mast Led Light Price List 34

CHZ Lighting High Mast Led Light Price List 35

CHZ Lighting High Mast Led Light Price List 36

CHZ Lighting High Mast Led Light Price List 37

Frequently Asked Questions

What's customized dimming profile?

The so-called dimming profile refers to a specific timer dimming function. Rural roads and urban roads have different needs for dimming configurations. At the same time, the timer dimming function of lamps can be customized. For example, rural roads usually have fewer people after 10 p.m., and the dimming curve can be maintained at 100% brightness from 18:00 to 22:00, and adjusted to 50% brightness from 22:00 to 06:00; while the situation on urban roads may require delaying the time by 1-2 hours. The dimming curve can be set to maintain 100% brightness from 18:00 to 24:00, and adjust to 50% brightness from 24:00 to 06:00. CHZ can customize such a dimming curve for you, please contact us for more information.

Dali +timer dimming or 0-10V+timer dimming?

Dimming profile uses the dimming function of the lamp. For example, if 0-10V + timer dimming is used, after setting the timer dimming of the lamp, the controller sends a 0-10V dimming signal to the power supply of the lamp, but the power supply will not perform the dimming operation. And if your lamp is configured with Dali + timer dimming, then after setting the timer dimming, the controller sends a Dali dimming signal to the power supply of the lamp, and the power supply can still execute the instructions of the Dali signal. However, it should be noted that the cost of lamps in the latter is often much higher than that in the former. If your budget is limited, it is recommended to choose the former; if your budget is sufficient, it is best to choose the latter.

Which power supplies can be configured with timer dimming function?

Power supply manufacturers such as Inventronics, Osram, Philips, Done, and Meanwell all provide scheduled dimming functions. CHZ recommends using the timed dimming function of Inventronics, because Inventronics is comparable to Philips and Osram in terms of dimming and product quality, and the price is more affordable. If your budget is limited, Dong’s power supply is also a good choice.

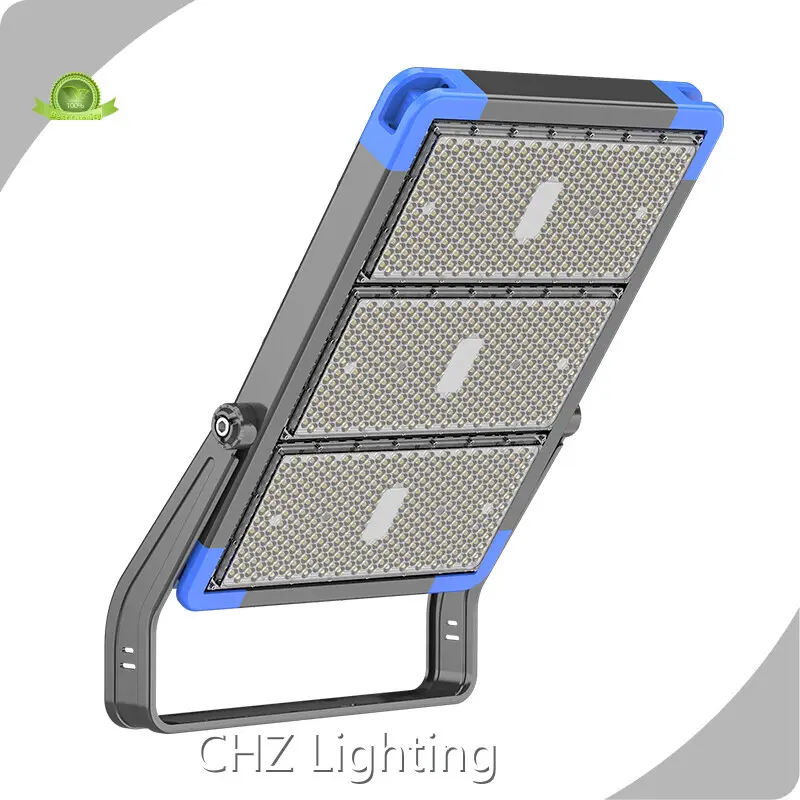

FL32 stadium lighting led floodlight is available in 250W, 500W, 750W, 1000W and 1250W. Its ultra-high luminous flux can reach 200,000 lumens, making it suitable for lighting large areas such as large sports fields, docks, airports, etc. Up to five different beam angles ensure uniform field lighting and reduce glare. Its unique finned aluminum heat sink effectively increases the heat dissipation area and airflow channel, reduces the operating temperature of the LED chip, and thus slows down light decay. In addition, accessories such as glare shields and aiming devices are also available, making it an ideal sports field lighting fixture.

FL32 stadium lighting led floodlight is our benchmark for high-end stadium light. Not only does it feature a radiator made of 6063 aviation aluminum for optimized heat dissipation, it also has a special coating sprayed on for weather-proofing and rust/salt corrosion protection, while having IP66.

The build quality is no doubt great, but for a light, the lighting effect is surely important. With over 160 lm/W, the FL32's modulated design can stack up to 5 modules, bringing the total wattage to 1250W, and total lumen of 200,000. Making it perfect for commercial stadiums and fields.

LED lights are gradually replacing conventional lighting fixtures nowadays because of its low maintenance and low energy cost. And with CE/CB/ROHS/ENEC/ENEC+ certifications, FL32 stadium lighting led floodlight will be a great choice to fit big project requirements.
