>> CHZ products are designed for the global market. Please contact our sales team for certification details.

>> Products information is for reference only. Some options may not be available for each configuration. Please contact us for further details.

Model No.	CHZ-GD02 series
Power	20W, 30W, 40W, 50W, 60W, 90W, 120W
Efficacy	>130lm/W
Input Voltage	100-240/277 VAC, 50/60 Hz
Power Factor	>0.95
Surge Protection	10KV (Default) / 20KV (available on request) with IEC61643-11
IP Rating	IP65
IK Rating	IK08
CCT	2200K, 3000K, 4000K, 5000K, 5700K, 6500K
CRI	Ra>70 (Default) / Ra>80
Operating Temperature	-40°C to + 50°C
Beam Angle	Type II, Type III, Type V
Mounting Option	Side entry, or vertical pole mounted with adapters
Warranty	5 Years
Certification/Report	CE, RoHS, ENEC, ENEC+, CB, Zhaga-D4i, LM79, LM80, TM-21, IP66, IK08, IEC62471/62778, IEC60068-2-6, IEC61643-11, ISO9001
Control	Daylightsensor, DALI Dimmable, NEMA / Zhaga Socket, Motion Sensor, 1-10V Dimmable, Zigbee or LORA control

TYPE I

TYPE II

TYPE III

CHZ Lighting Outdoor Garden Lights Price List 19

Specifications GD02

User manual GD02

庭院灯案例08

庭院灯案例07

庭院灯案例06

庭院灯案例05

庭院灯案例04

庭院灯案例03

Frequently Asked Questions

How to choose the pole height of the garden light?

Golden ratio:

Trail/path: 2.5-3.5m (with 15-30W LED);

Plaza/parking area: 4-5m (with 40-60W LED);

Landscape sculpture lamp: 1.2-1.8m (mainly decorative).

Formula: Lamp pole height ≈ 0.6 × irradiation area width (e.g. 3.5m pole for 6m wide road).

How to prevent glare and avoid dazzling lights?

Technical solution:

① Use frosted lens (UGR<19);

② Installation height ≥2.5m, tilted downward 10°-15°;

③ Sunshade design (light-cutting optical system);

④ Choose bat-wing light distribution (uniform light spot, no central strong light spot).

What is the difference between the waterproof grades of IP65 and IP66 for lamps?

IP65: dustproof + low-pressure water spray (suitable for ordinary outdoor areas, such as areas without heavy rain);

IP66: dustproof + strong water spray (rainstorm/washing environment, such as next to a fountain);

IP67: can be temporarily immersed in water (long-term humid environment is not recommended).

Recommendation: Choose IP66 in coastal or rainy areas, and install a lightning protection module (10kA flow rate).

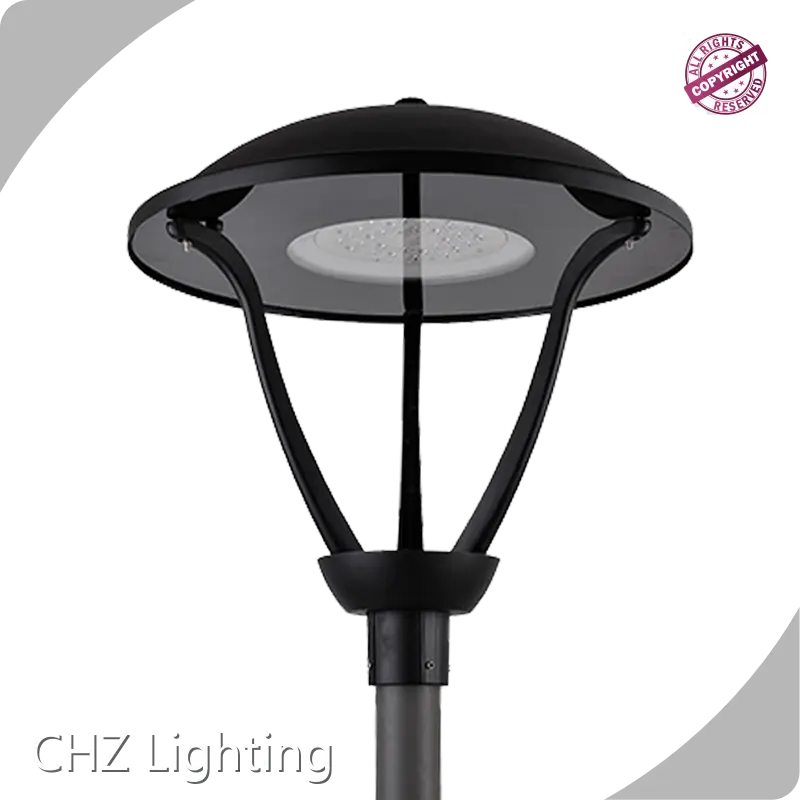

GD02 LED Garden Lighting beautiful design light

GD02 LED Garden Lighting beautiful design light is a beautiful garden lamp shaped like a mushroom. The power range is 30-80W, made of die-cast aluminum, and the surface is treated with electrostatic powder spraying, self-cleaning and not easy to stick to dust. Waterproof grade IP65, service life up to more than 50,000 hours.

GD02 LED Garden Lighting beautiful design light is widely used in roads, parks, communities, bicycle paths, etc.

Related Products

CHZ Lighting Outdoor Garden Lights Price List 27

CHZ-GD01A outdoor garden light

CHZ Lighting Outdoor Garden Lights Price List 28

CHZ-GD01B Classic design led garden light lamp

CHZ Lighting Outdoor Garden Lights Price List 29

CHZ-GD32 round led garden lamp

CHZ Lighting Outdoor Garden Lights Price List 30

CHZ-GD35 Series LED Garden Light Fixture Waterproof IP66

Related Blogs

CHZ Lighting Outdoor Garden Lights Price List 31

CHZ garden lighting case | led garden lights GD01 in the town of Valladolid Olmedo

CHZ Lighting Outdoor Garden Lights Price List 32

CHZ lighting case garden street light wholesale | Garden Lights lighting up San Diego

CHZ courtyard lightingLighting completed the road renovation project of a small town in Spain

CHZ Lighting Technology case | led luminaire street light of lighting in Palenciana (Cordoba)

CHZ-GD01A garden lights are widely used on the streets of Greece

New Garden Light Replacement Project in Spain |CHZ-GD30 garden lamp

CHZ CASE |GD34A Street light in Urban Road in URUGUAY

Courtyard lamp GD09 adds glory to Lagos hotel

Best led garden light manufacturer, factory and supplier in China

We are a LED garden light manufacturer, factory, and supplier in China since 2013. The factory is ISO9001, ISO14001, ISO45001, and ISO50001 certified. We are very good at designing, producing, and developing various high-quality led lights and we are also a high-tech enterprise in Shanghai.

OEM/ODM is acceptable for us. All garden light is made of good materials for up to 100,000hrs, ENEC, CB, and CE RoHS certificates. The Photocell, NEMA/ZHAGA socket, smart control, 0-10V, DALI, DALI2 can be available.

Please feel free to consult all questions about garden lighting projects. We will provide free garden lighting design, the best products, the best service, and the price you like.

Why choose us as your led garden light supply in China?

CHZ Lighting Outdoor Garden Lights Price List 40

OEM/ODM

Available to do OEM/ODM for all garden luminaire. No MOQ limits for led garden lights retailers, wholesalers, and engineering companies.

CHZ Lighting Outdoor Garden Lights Price List 41

FAST DELIVERY TIME

As a reliable garden light supplier, we have stocks of raw materials for street lights, regular delivery time is 5~7 working days for samples order and 20~25 working days for bulk order.

CHZ Lighting Outdoor Garden Lights Price List 42

BEST QUALITY&PRICE

We use top stable quality led driver and chips like Philips driver and chips for all road lights. Providing 5/7 years warranty at the cheapest price.

CHZ Lighting Outdoor Garden Lights Price List 43

CERTIFICATES

Our smart street light are ENEC, ENEC+, CB, CE, RoHS, IECEE, SAA, and ETL approved, and our factory ISO9001, ISO14001, ISO45001, and ISO50001 certified.

Certification Show

As a professional manufacturer of led garden light luminaire, our garden luminaire have rich certification and test reports, such as ENEC, ENEC+, CE, CB, ROHS, IEC62471, LM80, LM79, and so on

ISO9001

ISO14001

ISO45001

ISO50001

ENEC

ENEC+

CCC

ETL

SAA

COMPONENT	STANDARDS	TEST REPORT	CERTIFICATIONS
LED	LM80	✔
SMD2835SMD3030SMD5050SMD3535SMD3737	EN/IEC 60598-1 y 60598-2-3	✔	✔
	IEC 62471	✔	✔
	EN/IEC 60529	✔	✔
	EN/IEC 62262	✔
	EN/IEC 60068-2-75	✔	✔
	EN/IEC 55015	✔	✔
	EN/IEC 61000-3-2	✔	✔
	EN 61547	✔	✔
	EN 61000-3-3	✔	✔
	LM79	✔	✔
	ISTMT	✔	✔
	TM-21	✔
	LM82	✔	✔
	LM84	✔	✔
	ISO9007 /ASTM B117	✔	✔
	IEC 60068-2-6/ANSI C136.31	✔	✔
LED MODULE	EN/IEC 62031	✔	✔
LED DRIVER	IEC 62384,IEC 61347-1,IEC 61347-2-13	✔	✔
SPD	EN/IEC 61643-11	✔	✔
FACTORY	ISO9001,ISO14001,ISO50001,ISO45001		✔

R & D Team

研发图片 (1).png

研发图片 (6).png

研发图片 (7).png

研发图片 (2).png

研发图片 (4).png

研发图片 (5).png

Product Testing

In order to ensure the high quality of each product, we will conduct more than 30 different aspects of testing in our own laboratory before the product goes on the market. After all the tests are passed, the product can be approved for marketing. In mass production, for some basic safety and performance tests, we will conduct 100% testing to ensure that every product delivered to the customer is perfect.





Production Process

生产图片 (3).png

生产图片 (2).png

生产图片 (1).png

生产图片 (6).png

生产图片 (5).png

生产图片 (4).png

Company Advantages

· outdoor garden lights adopts new environmentally-friendly material.

· outdoor garden lights is well easily cleaned.

· With precise strategic positioning and excellent implementation efficiency, Shanghai CHZ Lighting Co.,Ltd has achieved sustained high-speed growth.

Company Features

· As the leader of outdoor garden lights industry, CHZ Lighting owns mature technology to produce competitive products.

· Shanghai CHZ Lighting Co.,Ltd has introduced advanced measurement equipment for outdoor garden lights from overseas.

· CHZ Lighting provides customers with quality products and services; CHZ Lighting creates value for customers!

Application of the Product

The outdoor garden lights produced by CHZ Lighting is widely used in many industry sectors.

CHZ Lighting has an excellent team consisting of R&D, production, operation and management. According to actual needs of different customers, we could provide customers with practical solutions.

Parameters

Model No.	Power(W)	Chips	Chips Qty	Chips S/P	Protection Class	Lumen(LM/W)	Size(LWH)mm
GD02-40W	40W	SMD5050	16	2S8P	Class I / II	>110	Ф650xH674
GD02-50W	50W	SMD5050	20	2S10P	Class I / II	>110	Ф650xH674
GD02-60W	60W	SMD5050	24	2S12P	Class I / II	>110	Ф650xH674
GD02-70W	70W	SMD5050	28	2S14P	Class I / II	>110	Ф650xH674
GD02-80W	80W	SMD5050	32	2S16P	Class I / II	>110	Ф650xH674

Product Features

1. Made by die casting aluminum, electrostatic powder coating for surface treatment.
2. More added dispersing agent to diffusion and makes the lights more even.
3. Silicone washer for the sealer.
4. Classic design, be the scenery of garden.

CHZ Lighting Outdoor Garden Lights Price List 73

CHZ Lighting Outdoor Garden Lights Price List 74

CHZ Lighting Outdoor Garden Lights Price List 75

CHZ Lighting Outdoor Garden Lights Price List 76

CHZ Lighting Outdoor Garden Lights Price List 77

Light distribution curve：

CHZ Lighting Outdoor Garden Lights Price List 78

Applications

Urban Road, Parking, bike path and etc.

Different road, super white linen finish glass can reduce the glare.

CHZ Lighting Outdoor Garden Lights Price List 79

CHZ Lighting Outdoor Garden Lights Price List 80

CHZ Lighting Outdoor Garden Lights Price List 81

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
