High Mast Solar Street Light High Mast Lighting Wholesale - CHZ Lighting

Inquiry

Product details of the high mast solar street light

Quick Overview

high mast solar street light has been made reinforcements at every weak points. Now the performance of this product is improved at every turn by powerful technologies. CHZ Lighting's high mast solar street light can be used in multiple industries. Our company mission for high mast solar street light is that quality and service go side by side.

Product Description

Compared with its peer products, high mast solar street light produced by CHZ Lighting has the following advantages.

>> CHZ products are designed for the global market. Please contact our sales team for certification details.

>> Products information is for reference only. Some options may not be available for each configuration. Please contact us for further details.

Model No.	CHZ-FL43 series
Power	50W, 60W, 100W, 120W, 150W, 180W, 200W, 240W, 250W, 300W, 400W, 480W, 500W, 600W
Efficacy	>150lm/W or above
Input Voltage	100-240/277 VAC, 50 / 60 Hz
Power Factor	>0.95
Surge Protection	10KV (Default) / 20KV (available on request) with IEC61643-11
IP Rating	IP66
IK Rating	IK08 or IK09
CCT	2200K, 3000K, 4000K, 5000K, 5700K, 6500K
CRI	Ra>70 (Default) / Ra>80
Operating Temperature	-40°C to + 50°C
Beam Angle	25°, 45°, 60°, 90°, 60°×120°, TYPE III
Mounting Option	Side entry, or vertical pole mounted with adapters
Warranty	5 Years
Certification/Report	CE, RoHS, ENEC, ENEC+, CB, Zhaga-D4i, LM79, LM80, TM-21, IP66, IK09/IK10, IEC62471/62778, IEC60068-2-6, IEC61643-11, ISO9227, CISPR15:2018
Control	Daylightsensor, DALI Dimmable, NEMA / Zhaga Socket, Motion Sensor, 1-10V Dimmable, Zigbee or LORA control

High Mast Solar Street Light High Mast Lighting Wholesale - CHZ Lighting 20

25°

45°

60°

90°

90°×120°

High Mast Solar Street Light High Mast Lighting Wholesale - CHZ Lighting 25

TYPE I

140°×70°

High Mast Solar Street Light High Mast Lighting Wholesale - CHZ Lighting 26

Specifications FL43

User manual FL43

High Mast Solar Street Light High Mast Lighting Wholesale - CHZ Lighting 28

High Mast Solar Street Light High Mast Lighting Wholesale - CHZ Lighting 29

High Mast Solar Street Light High Mast Lighting Wholesale - CHZ Lighting 30

High Mast Solar Street Light High Mast Lighting Wholesale - CHZ Lighting 31

High Mast Solar Street Light High Mast Lighting Wholesale - CHZ Lighting 32

High Mast Solar Street Light High Mast Lighting Wholesale - CHZ Lighting 33

Frequently Asked Questions

What's customized dimming profile?

The so-called dimming profile refers to a specific timer dimming function. Rural roads and urban roads have different needs for dimming configurations. At the same time, the timer dimming function of lamps can be customized. For example, rural roads usually have fewer people after 10 p.m., and the dimming curve can be maintained at 100% brightness from 18:00 to 22:00, and adjusted to 50% brightness from 22:00 to 06:00; while the situation on urban roads may require delaying the time by 1-2 hours. The dimming curve can be set to maintain 100% brightness from 18:00 to 24:00, and adjust to 50% brightness from 24:00 to 06:00. CHZ can customize such a dimming curve for you, please contact us for more information.

Dali +timer dimming or 0-10V+timer dimming?

Dimming profile uses the dimming function of the lamp. For example, if 0-10V + timer dimming is used, after setting the timer dimming of the lamp, the controller sends a 0-10V dimming signal to the power supply of the lamp, but the power supply will not perform the dimming operation. And if your lamp is configured with Dali + timer dimming, then after setting the timer dimming, the controller sends a Dali dimming signal to the power supply of the lamp, and the power supply can still execute the instructions of the Dali signal. However, it should be noted that the cost of lamps in the latter is often much higher than that in the former. If your budget is limited, it is recommended to choose the former; if your budget is sufficient, it is best to choose the latter.

Which power supplies can be configured with timer dimming function?

Power supply manufacturers such as Inventronics, Osram, Philips, Done, and Meanwell all provide scheduled dimming functions. CHZ recommends using the timed dimming function of Inventronics, because Inventronics is comparable to Philips and Osram in terms of dimming and product quality, and the price is more affordable. If your budget is limited, Dong’s power supply is also a good choice.

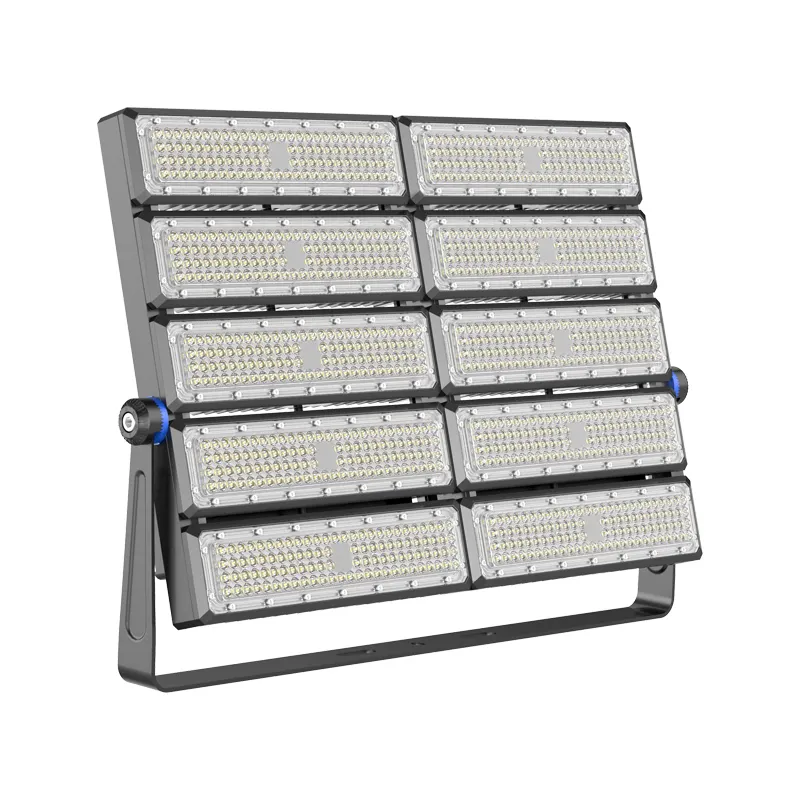

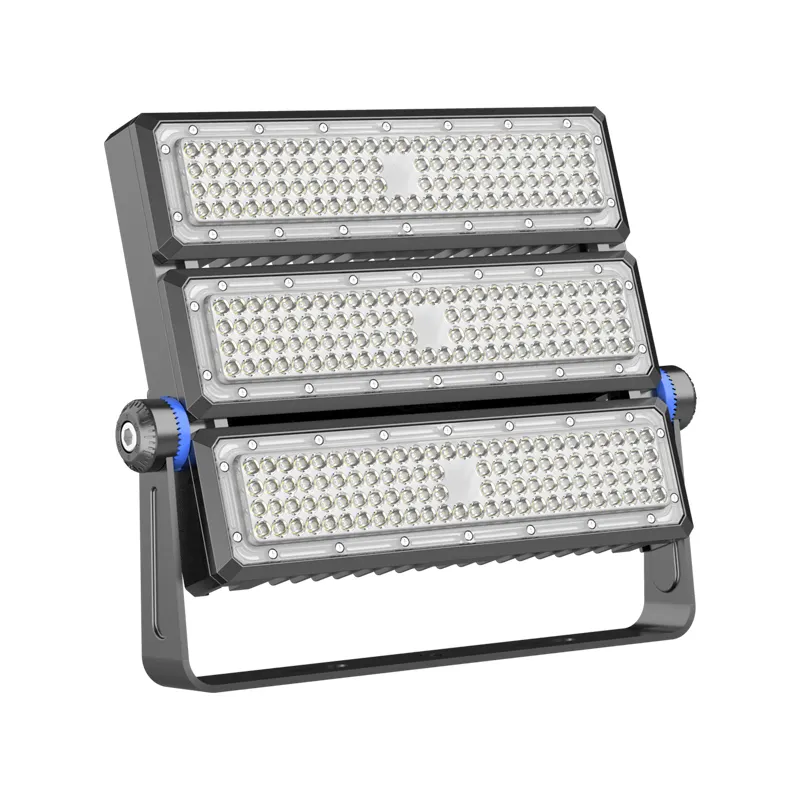

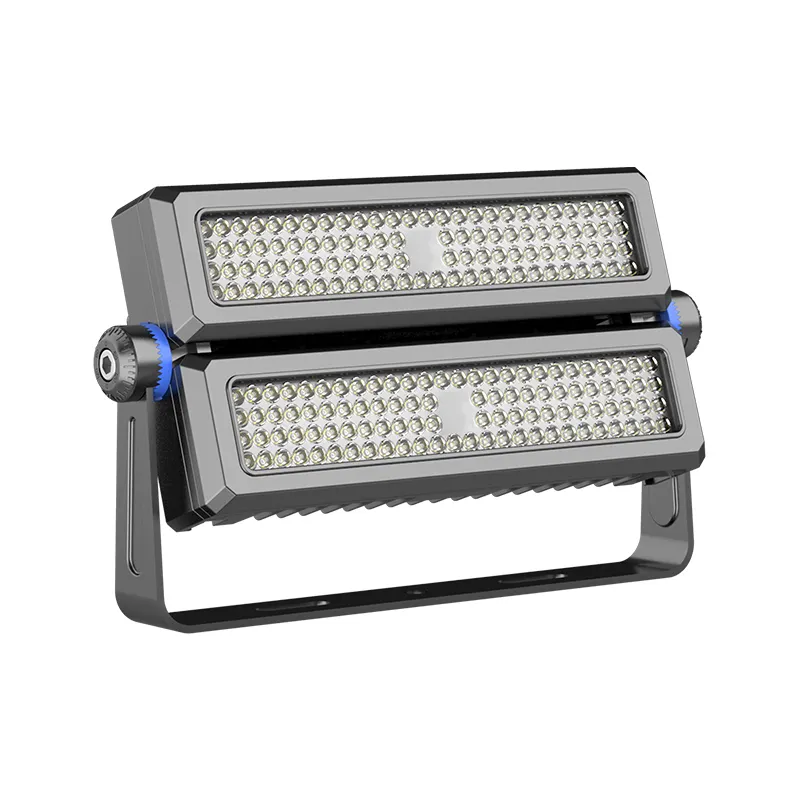

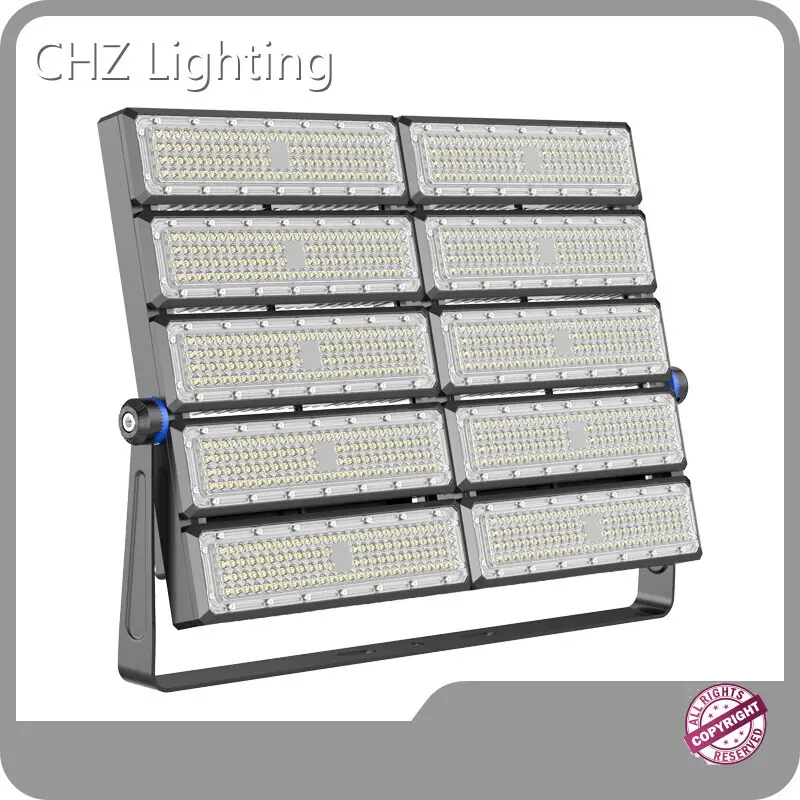

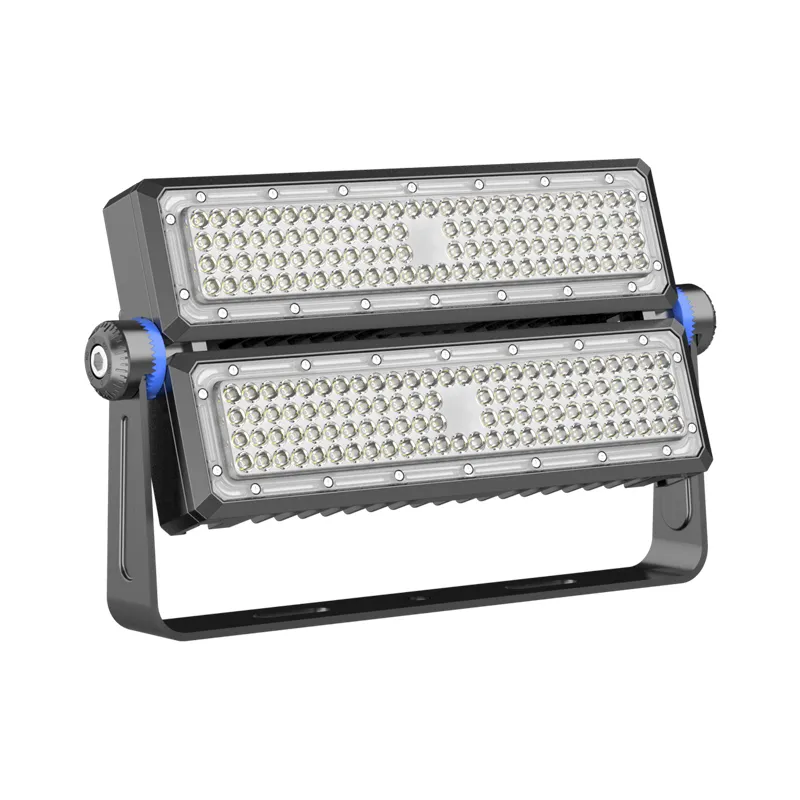

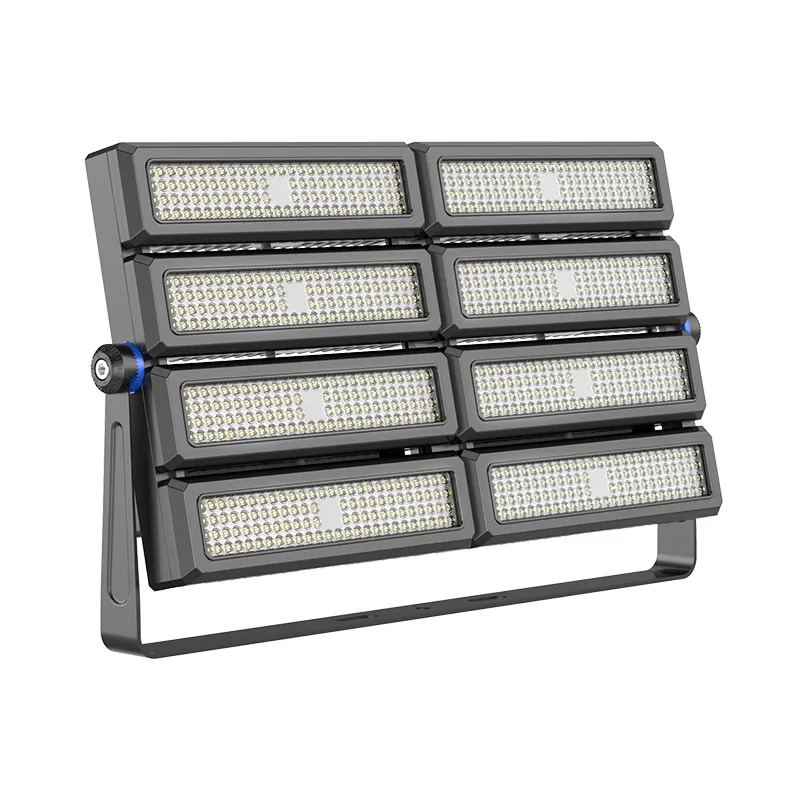

FL43 sports field lighting is available in 50W, 100W, 150W, 200W, 250W, 400W and 500W. Its ultra-high luminous flux can reach 75,000 lumens, making it suitable for lighting large areas such as large sports fields, docks, airports, etc. Up to five different beam angles ensure uniform field lighting and reduce glare. Its unique finned aluminum heat sink effectively increases the heat dissipation area and airflow channel, reduces the operating temperature of the LED chip, and thus slows down light decay. In addition, accessories such as glare shields and aiming devices are also available, making it an ideal sports field lighting fixture.

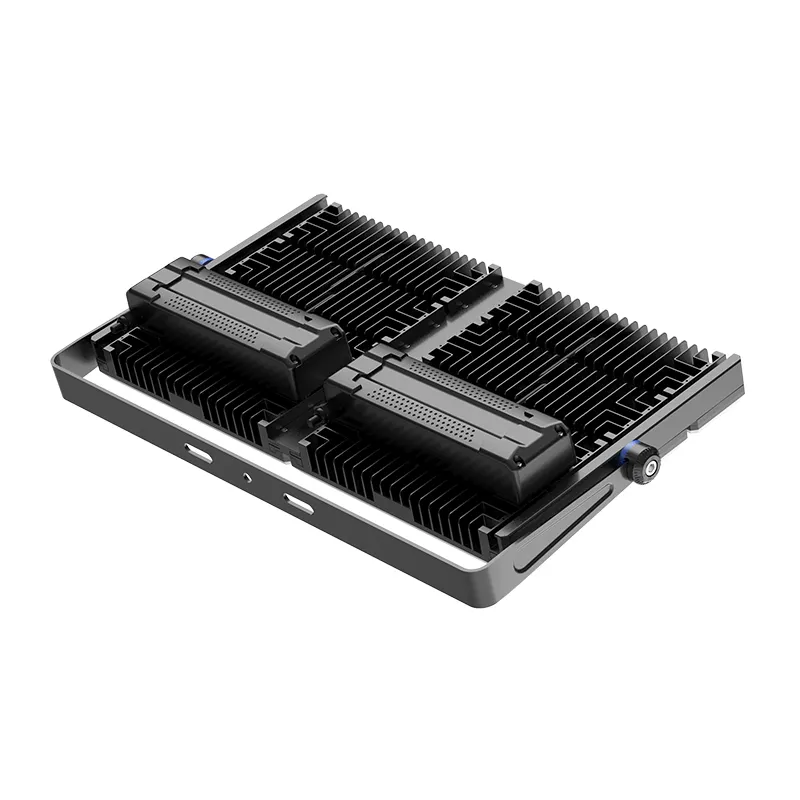

The FL43 is a great LED Stadium light with an optimized design for heat dissipation, the large grills on the back ensure that the overall lifespan of the light reaches over 50000 hours.

As for retrofitting, the FL43 is a lightweight product that can fit on a lot of our client's current poles without having to update, since 500W will be plenty when it comes with over 150lm/W of lumen efficiency. Not to mention, it can also be made into special beam angles of 80°*140° and 90°*120°, ensuring the lighting effect for the project.

That makes the FL43 suitable for junctions, elevated roads, and a lot of other places, including indoor/outdoor sport fields and complexes, resorts and etc.

Related Products

High Mast Solar Street Light High Mast Lighting Wholesale - CHZ Lighting 34

CHZ-FL21A led floodlight for football fields

High Mast Solar Street Light High Mast Lighting Wholesale - CHZ Lighting 35

CHZ-FL22 aluminum led floodlight outdoor with ce rohs

CHZ-FL32 modules assembly stadium led sports floodlights

CHZ-FL38 New arrival LED best stadium lighting

Related Blogs

High Mast Solar Street Light High Mast Lighting Wholesale - CHZ Lighting 38

What are the Basketball Court Lighting Standards?

Flood Light's Buying Guide

High Mast Solar Street Light High Mast Lighting Wholesale - CHZ Lighting 40

How are LED Stadium Lights Beneficial for Green Sports Events?

Why are Football Field Lights Important to a Football Match?

What are the Uses of LED High Mast Lighting?

High Mast Solar Street Light High Mast Lighting Wholesale - CHZ Lighting 43

Brightening the Game: Essential Tips for Football Field Lighting

What is the Illumination & Colour Temperature for Athletic Field Lighting?

Light Up Your Game: The Ultimate Guide to Basketball Court Lighting

Best led high mast light manufacturer, factory, and supplier in China

We are a led high mast light manufacturer, factory, and supplier in China since 2013 and also a high-tech enterprise in Shanghai. The factory is ISO9001, ISO14001, ISO45001, and ISO50001 certified. We are very good at designing, producing, and developing various high-quality road lights.

OEM/ODM is acceptable for us. All the LED high mast light is made of good materials for up to 50,000hrs, ENEC, CB, and CE RoHS certificates. The Photocell, NEMA/ZHAGA socket, smart control, 0-10V, DALI, DALI2, and DC12V-48V low voltage can be available.

Please feel free to consult all questions about high mast lighting projects. We will provide free high mast lighting design, the best products, the best service, and the price you like.

Why choose us as your high mast lights supply in China?

High Mast Solar Street Light High Mast Lighting Wholesale - CHZ Lighting 47

OEM/ODM

Available to do OEM/ODM for all high mast lighting luminaire. No MOQ limits for led high mast lights retailers, wholesalers, and engineering companies.

High Mast Solar Street Light High Mast Lighting Wholesale - CHZ Lighting 48

FAST DELIVERY TIME

As a reliable high mast light supplier, we have stocks of raw materials for flood lights, regular delivery time is 5~7 working days for samples and 20~25 working days for bulk.

High Mast Solar Street Light High Mast Lighting Wholesale - CHZ Lighting 49

BEST QUALITY&PRICE

We use top stable quality led driver and chips like Philips driver and chips for all road lights. Providing 5/7 years warranty at the cheapest price.

High Mast Solar Street Light High Mast Lighting Wholesale - CHZ Lighting 50

CERTIFICATES

Our smart high mast light are ENEC, ENEC+, CB, CE, RoHS, IECEE, SAA, and ETL approved, and our factory ISO9001, ISO14001, ISO45001, and ISO50001 certified.

Certification Show

As a professional manufacturer of led high mast light luminaire, our flood luminaires have rich certification and test reports, such as ENEC, ENEC+, CE, CB, ROHS, IEC62471, LM80, LM79, and so on

ISO9001

ISO14001

ISO45001

ISO50001

ENEC

ENEC+

CCC

ETL

SAA

COMPONENT	STANDARDS	TEST REPORT	CERTIFICATIONS
LED chips	LM80	✔
SMD2835SMD3030SMD5050SMD3535SMD3737	EN/IEC 60598-1 y 60598-2-3	✔	✔
	IEC 62471	✔
	EN/IEC 60529	✔
	EN/IEC 62262	✔
	EN/IEC 60068-2-75	✔
	EN/IEC 55015	✔	✔
	EN/IEC 61000-3-2	✔	✔
	EN 61547	✔	✔
	EN 61000-3-3	✔	✔
	LM79	✔
	ISTMT	✔
	TM-21	✔
	LM82	✔
	LM84	✔
	ISO9007 /ASTM B117	✔
	IEC 60068-2-6/ANSI C136.31	✔
LED MODULE	EN/IEC 62031	✔
LED DRIVER	IEC 62384,IEC 61347-1,IEC 61347-2-13	✔	✔
SPD	EN/IEC 61643-11	✔	✔
FACTORY	ISO9001,ISO14001,ISO50001,ISO45001		✔

R & D Team

研发图片 (1).png

研发图片 (6).png

研发图片 (7).png

研发图片 (2).png

研发图片 (4).png

研发图片 (5).png

Product Testing

In order to ensure the high quality of each product, we will conduct more than 30 different aspects of testing in our own laboratory before the product goes on the market. After all the tests are passed, the product can be approved for marketing. In mass production, for some basic safety and performance tests, we will conduct 100% testing to ensure that every product delivered to the customer is perfect.





Production Process

生产图片 (3).png

生产图片 (2).png

生产图片 (1).png

生产图片 (6).png

生产图片 (5).png

生产图片 (4).png

Company Introduction

Shanghai CHZ Lighting Co.,Ltd (CHZ Lighting), is a company located in shang hai. Our main business is the production and sales of flood light,flood light factory,led flood light china,led street light manufacturers,Street lighting,Garden lighting,Sport lighting. Our company adheres to the tenet of 'integrity-oriented, customer first', and follows the management concept of 'striving for high-quality and excellence'. We have the professional research and development team and experienced technical personnel, which provides a powerful force for the production of high quality products. CHZ Lighting provides comprehensive and reasonable solutions based on customer's specific situations and needs.
We look forward to working with you to move towards a more brilliant era.

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
