CHZ Lighting - LED Street Light Manufacturer and LED Flood Light Factory Since 2013

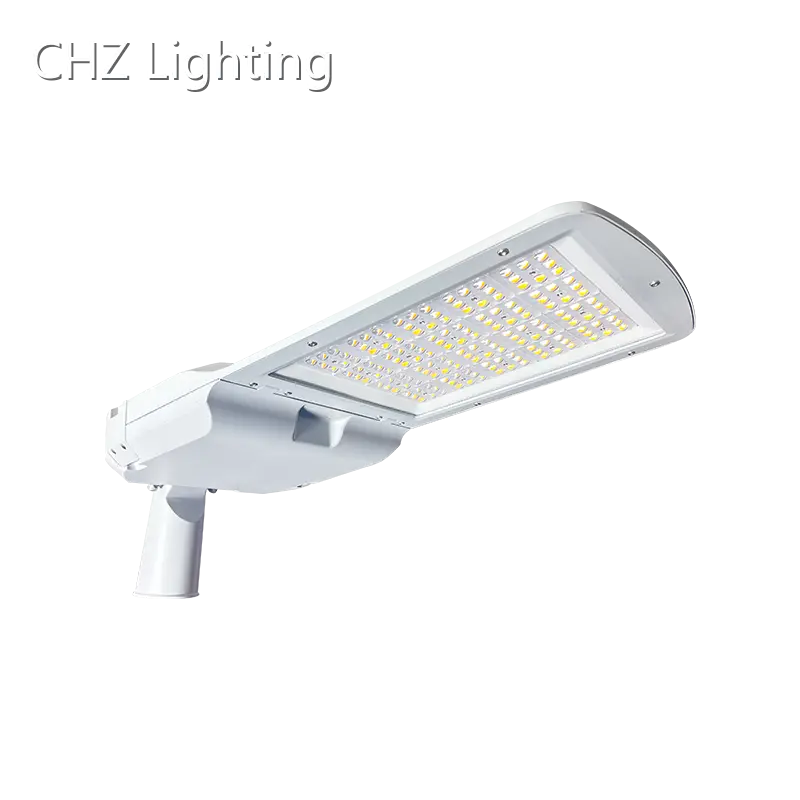

Led Street Lamp by CHZ Lighting

Inquiry

Product details of the led street lamp

Product Information

The appearance design of CHZ Lighting led street lamp conforms to the industrial standard. The quality of this product is always put in the first place by our strict QC team. Supported by our creative service team, the popularity of Shanghai CHZ Lighting Co.,Ltd has been improving.

>> CHZ products are designed for the global market. Please contact our sales team for certification details.

>> Products information is for reference only. Some options may not be available for each configuration. Please contact us for further details.

ST29B series is one of the most popular models in CHZ street lights, using full die-cast aluminum, high light efficiency and low glare, combined with the latest management and intelligent lighting control systems. With excellent design and very competitive price, and ENEC+ CE CB certification, it has become a popular and preferred model in CHZ street lights.

ST29B series LED street lights provide different optical configurations to meet the needs of urban lighting to the greatest extent. The excellent appearance design solves the problems of waterproofing and wind resistance to the greatest extent, and can be installed and used in harsh climate conditions.

Model No.	CHZ-ST29B series
Power	20W, 30W, 40W, 50W, 60W, 80W, 100W, 120W, 150W, 160W, 180W, 200W, 240W
Efficacy	>160lm/W
Input Voltage	100-240/277 VAC, 50/60 Hz
Power Factor	>0.95
Surge Protection	10KV (Default) / 20KV (available on request) with IEC61643-11
IP Rating	IP66
IK Rating	IK09
CCT	2200K, 3000K, 4000K, 5000K, 5700K, 6500K
CRI	Ra>70 (Default) / Ra>80
Operating Temperature	-40°C to + 50°C
Beam Angle	Type II, Type III, Type V
Mounting Option	Side entry, or vertical pole mounted with adapters
Warranty	5 Years
Certification/Report	CE, RoHS, ENEC, ENEC+, CB, ETL, Zhaga-D4i, LM79, LM80, TM-21, IP66, IK09, IEC62471/62778, IEC60068-2-6, IEC61643-11, ISO9001
Control	Daylightsensor, DALI Dimmable, NEMA / Zhaga Socket, Motion Sensor, 1-10V Dimmable, Zigbee or LORA control

TYPE II

TYPE III

TYPE V

Specifications ST29B

路灯案例（1）

路灯案例（2）

路灯案例（3）

路灯案例（4）

路灯案例（5）

路灯案例（6）

Frequently Asked Questions

What is the input voltage range of ST29? Can it be used in areas with unstable voltage?

Wide voltage design (AC100-277V), built-in automatic voltage regulator module, fluctuation within ±15% does not affect brightness (available for Middle East/African customers).

What is the luminous flux (Lumen) of ST29 street lights? How to calculate the actual illumination?

The luminous flux of 50W model is 7500LM, and the 100W model is 15000LM (measured value). Illuminance calculation announcement: Illuminance (lux) = luminous flux (LM) / irradiated area (m²), we can provide free lighting simulation report.

Can the logo or appearance color be customized?

Yes! Provide matte black/industrial gray standard colors, logo can be customized labeling and laser engraving, minimum order quantity 50 units.

Related Products

CHZ-ST42 LED street light easy to install and maintain

CHZ-ST43 LED Street Lights Economical and quality-assured

CHZ-ST44 Economical LED Street Luminaires

CHZ-ST45 Smart Street Light with NEMA or ZHAGA , 0-10v DALI2 D4i

Related Blogs

Why Select LED Light for Outdoor Streets?

Choosing the Right LED Parking Lot Lights for Maximum Security and Efficiency

The Future of Urban Illumination: The Benefits of LED Street Lights

Why LED Street Light Fixtures are the Smarter Choice?

What do You Need to Know about LED Street Lighting Fixtures?

A Guide to Choosing the Perfect LED Street Light Manufacturer

Illuminating the Path: Explaining Modern Road Lighting Solutions

Illuminating the Future: Integrating Solar Energy into Roadway Lights

Best led street light manufacturer, factory, and supplier in China

We are a led street light manufacturer, factory, and supplier in China since 2013 and also a high-tech enterprise in Shanghai. The factory is ISO9001, ISO14001, ISO45001, and ISO50001 certified. We are very good at designing, producing, and developing various high-quality road lights.

OEM/ODM is acceptable for us. All the smart street light is made of good materials for up to 100,000hrs, ENEC, CB, and CE RoHS certificates. The Photocell, NEMA/ZHAGA socket, smart control, 0-10V, DALI, DALI2, and DC12V-48V low voltage can be available.

Please feel free to consult all questions about street lighting projects. We will provide free road lighting design, the best products, the best service, and the price you like.

Why choose us as your street lights supply in China?

OEM/ODM

Available to do OEM/ODM for all street luminaire. No MOQ limits for led street lights retailers, wholesalers, and engineering companies.

FAST DELIVERY TIME

As a reliable street light supplier, we have stocks of raw materials for street lights, regular delivery time is 5~7 working days for samples and 20~25 working days for bulk.

BEST QUALITY&PRICE

We use top stable quality led driver and chips like Philips driver and chips for all road lights. Providing 5/7 years warranty at the cheapest price.

CERTIFICATES

Our smart street light are ENEC, ENEC+, CB, CE, RoHS, IECEE, SAA, and ETL approved, and our factory ISO9001, ISO14001, ISO45001, and ISO50001 certified.

Certification Show

As a professional manufacturer of led street light luminaire, our street luminaire have rich certification and test reports, such as ENEC, ENEC+, CE, CB, ROHS, IEC62471, LM80, LM79, and so on

ISO9001

ISO14001

ISO45001

ISO50001

ENEC

ENEC+

CCC

ETL

SAA

COMPONENT	STANDARDS	TEST REPORT	CERTIFICATIONS
LED chips	LM80	✔
SMD2835SMD3030SMD5050SMD3535SMD3737	EN/IEC 60598-1 y 60598-2-3	✔	✔
	IEC 62471	✔
	EN/IEC 60529	✔
	EN/IEC 62262	✔
	EN/IEC 60068-2-75	✔
	EN/IEC 55015	✔	✔
	EN/IEC 61000-3-2	✔	✔
	EN 61547	✔	✔
	EN 61000-3-3	✔	✔
	LM79	✔
	ISTMT	✔
	TM-21	✔
	LM82	✔
	LM84	✔
	ISO9007 /ASTM B117	✔
	IEC 60068-2-6/ANSI C136.31	✔
LED MODULE	EN/IEC 62031	✔
LED DRIVER	IEC 62384,IEC 61347-1,IEC 61347-2-13	✔	✔
SPD	EN/IEC 61643-11	✔	✔
FACTORY	ISO9001,ISO14001,ISO50001,ISO45001		✔

R & D Team

研发图片 (1).png

研发图片 (6).png

研发图片 (7).png

研发图片 (2).png

研发图片 (4).png

研发图片 (5).png

Product Testing

In order to ensure the high quality of each product, we will conduct more than 30 different aspects of testing in our own laboratory before the product goes on the market. After all the tests are passed, the product can be approved for marketing. In mass production, for some basic safety and performance tests, we will conduct 100% testing to ensure that every product delivered to the customer is perfect.





Production Process

生产图片 (3).png

生产图片 (2).png

生产图片 (1).png

生产图片 (6).png

生产图片 (5).png

生产图片 (4).png

Company Feature

• CHZ Lighting's talents are high in quality and rich in industry experience. They are the solid foundation for long-term development.
• Founded in our company has been continuously developed in the years. With strong management, technology and service strength, we have successfully entered the leading position in the industry.
• CHZ Lighting enjoys developed telecommunication and traffic convenience. The geographic location is superior and the natural conditions are good.
• Our company follows the tenet of serving consumers. While making products, we strive to explore a humanized and diversified service model. With this, we can meet all-round, all-process, multi-level and personalized service requirements of customers.
Our products are reliable in quality, various in type and affordable in price. Customers in need are welcomed to contact us. We sincerely hope to reach friendly cooperation, common development and mutual benefit with you!

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
