Professional High Mast Flood Light Supplier for Airport Parking Areas

Inquiry

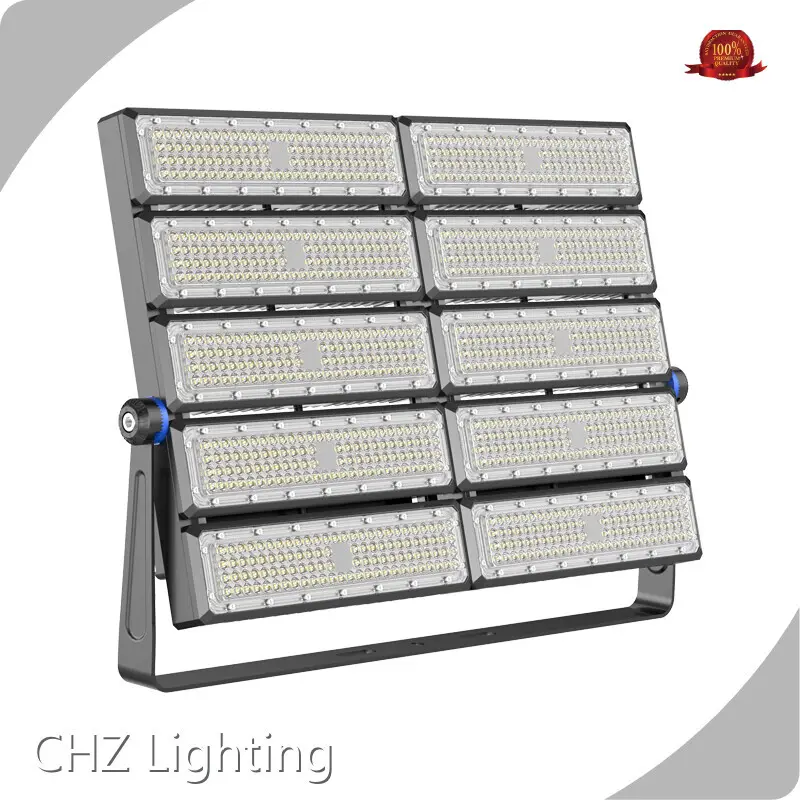

Product details of the high mast flood light

Product Introduction

CHZ Lighting high mast flood light is dealt with advanced technology. CHZ Lighting delivers high performance products that are cost-effective, customer-need specific. Shanghai CHZ Lighting Co.,Ltd has the most economical and reasonable price for high mast flood light.

>> CHZ products are designed for the global market. Please contact our sales team for certification details.

>> Products information is for reference only. Some options may not be available for each configuration. Please contact us for further details.

Model No.	CHZ-FL43 series
Power	50W, 60W, 100W, 120W, 150W, 180W, 200W, 240W, 250W, 300W, 400W, 480W, 500W, 600W
Efficacy	>150lm/W or above
Input Voltage	100-240/277 VAC, 50 / 60 Hz
Power Factor	>0.95
Surge Protection	10KV (Default) / 20KV (available on request) with IEC61643-11
IP Rating	IP66
IK Rating	IK08 or IK09
CCT	2200K, 3000K, 4000K, 5000K, 5700K, 6500K
CRI	Ra>70 (Default) / Ra>80
Operating Temperature	-40°C to + 50°C
Beam Angle	25°, 45°, 60°, 90°, 60°×120°, TYPE III
Mounting Option	Side entry, or vertical pole mounted with adapters
Warranty	5 Years
Certification/Report	CE, RoHS, ENEC, ENEC+, CB, Zhaga-D4i, LM79, LM80, TM-21, IP66, IK09/IK10, IEC62471/62778, IEC60068-2-6, IEC61643-11, ISO9227, CISPR15:2018
Control	Daylightsensor, DALI Dimmable, NEMA / Zhaga Socket, Motion Sensor, 1-10V Dimmable, Zigbee or LORA control

Professional High Mast Flood Light Supplier for Airport Parking Areas 20

25°

45°

60°

90°

90°×120°

Professional High Mast Flood Light Supplier for Airport Parking Areas 25

TYPE I

140°×70°

Professional High Mast Flood Light Supplier for Airport Parking Areas 26

Specifications FL43

User manual FL43

Professional High Mast Flood Light Supplier for Airport Parking Areas 28

Professional High Mast Flood Light Supplier for Airport Parking Areas 29

Professional High Mast Flood Light Supplier for Airport Parking Areas 30

Professional High Mast Flood Light Supplier for Airport Parking Areas 31

Professional High Mast Flood Light Supplier for Airport Parking Areas 32

Professional High Mast Flood Light Supplier for Airport Parking Areas 33

Frequently Asked Questions

What's customized dimming profile?

The so-called dimming profile refers to a specific timer dimming function. Rural roads and urban roads have different needs for dimming configurations. At the same time, the timer dimming function of lamps can be customized. For example, rural roads usually have fewer people after 10 p.m., and the dimming curve can be maintained at 100% brightness from 18:00 to 22:00, and adjusted to 50% brightness from 22:00 to 06:00; while the situation on urban roads may require delaying the time by 1-2 hours. The dimming curve can be set to maintain 100% brightness from 18:00 to 24:00, and adjust to 50% brightness from 24:00 to 06:00. CHZ can customize such a dimming curve for you, please contact us for more information.

Dali +timer dimming or 0-10V+timer dimming?

Dimming profile uses the dimming function of the lamp. For example, if 0-10V + timer dimming is used, after setting the timer dimming of the lamp, the controller sends a 0-10V dimming signal to the power supply of the lamp, but the power supply will not perform the dimming operation. And if your lamp is configured with Dali + timer dimming, then after setting the timer dimming, the controller sends a Dali dimming signal to the power supply of the lamp, and the power supply can still execute the instructions of the Dali signal. However, it should be noted that the cost of lamps in the latter is often much higher than that in the former. If your budget is limited, it is recommended to choose the former; if your budget is sufficient, it is best to choose the latter.

Which power supplies can be configured with timer dimming function?

Power supply manufacturers such as Inventronics, Osram, Philips, Done, and Meanwell all provide scheduled dimming functions. CHZ recommends using the timed dimming function of Inventronics, because Inventronics is comparable to Philips and Osram in terms of dimming and product quality, and the price is more affordable. If your budget is limited, Dong’s power supply is also a good choice.
