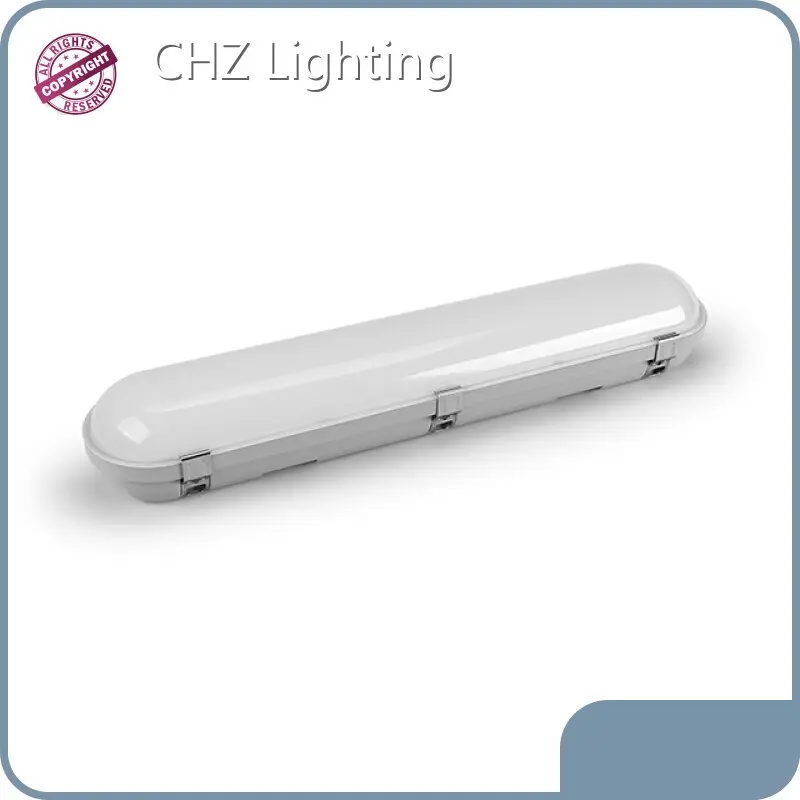

Tri Proof Lighting by CHZ Lighting

Inquiry

Company Advantages

· The entire production process of CHZ Lighting tri proof lighting is strictly executed by our professionals.

· Quality is key to CHZ Lighting, so quality control is strictly implemented.

· Our tri proof lighting products can be customized according to customers' drawings and samples.

Parameters

Model No.Power(W)ChipsChips QtyChips S/PSize(L×W×H)mm
SF04-600-20W20WSMD283512010P12S600×95×80
SF04-600-30W30WSMD283512010P12S600×95×80
SF04-1200-40W40WSMD283524020P12S1200×95×80
SF04-1200-50W50WSMD283524020P12S1200×95×80
SF04-1500-50W50WSMD283536030P12S1500×95×80
SF04-1500-60W60WSMD283536030P12S1500×95×80

Product Features

1. The light source directly adopts the light board, and the T8/T5 tube is not needed, and the luminous efficiency is higher;

2. High-quality shell is durable, protection upgrade, trust guarantee, and flame retardant technology can be used safely;

3. The lamp body and the translucent cover are made of fireproof PC material, which has good flame retardancy; the protection grade is up to P65;

4. The lamp body and the transparent cover can be packaged separately, which effectively reduces the packaging volume and saves freight;

5. Available with transparent cover and opal cover; transparent cover, light transmittance 93%; milky white cover, light transmittance 83%;

6. The lamp body has two types: wide side and narrow side. The wide side light is soft and the glare is small; the narrow side cost is relatively low;

7. PC material has good wear resistance, folding resistance and pressure resistance; it can bend at 180 degrees without crack; the buckle has PC and stainless steel materials;

8. Using high-quality SMD2835 chip, high-quality constant current drive, stable and reliable performance, high luminous efficiency, long life and low maintenance cost;

Tri Proof Lighting by CHZ Lighting 8
Tri Proof Lighting by CHZ Lighting 9
Tri Proof Lighting by CHZ Lighting 10
Tri Proof Lighting by CHZ Lighting 11

Installation diagram

Tri Proof Lighting by CHZ Lighting 12

A

Applications

Widely used in factories, warehouses, walkways, schools, restaurants, underground parking lots and other places.

Tri Proof Lighting by CHZ Lighting 13

Details

Tri Proof Lighting by CHZ Lighting 14
Tri Proof Lighting by CHZ Lighting 15
Tri Proof Lighting by CHZ Lighting 16
Tri Proof Lighting by CHZ Lighting 17
Tri Proof Lighting by CHZ Lighting 18


Company Features

· Shanghai CHZ Lighting Co.,Ltd wins big trust from customers for manufacturing tri proof lighting with reliable quality.

· Backed by our rich industrial experience in this domain, we are devotedly engaged in offering a wide gamut of tri proof lighting. With immense market knowledge, we have been able to provide optimum quality tri proof lighting to the exact demand of customers. Highly durable and easy to install, CHZ Lighting tri proof lighting are designed by using the finest material and leading technology.

· We adopt eco-friendly manufacturing approaches to promote sustainability. We have replaced some aging manufacturing equipment with energy-saving ones, such as electricity-saving equipment to help cut down electricity consumption.


Application of the Product

tri proof lighting developed and produced by CHZ Lighting is widely applied to many industries and fields. It can fully meet the diversified needs of customers.

CHZ Lighting is dedicated to solving your problems and providing you with one-stop and comprehensive solutions.

Contact us
we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
