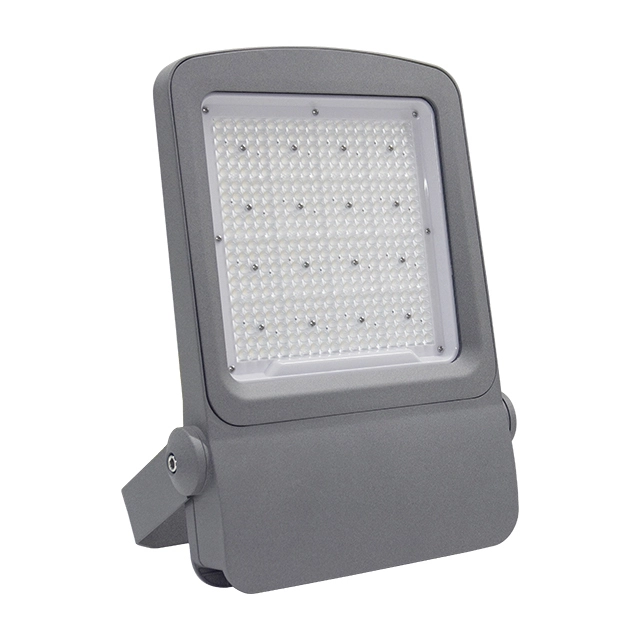

CHZ-FL27A LED Flood Lighting

Product features
Power: 30-500W
Light efficiency 140 lumens/watt
Protection level: Class I or Class II
IP66 and IK08/IK10 protection level
Die-cast housing and tempered glass
Multiple optical angles available: 30°, 45°, 60°, 90°, 120° or TYPE II, TYPE III
CE, CB, ROHS certification
Intelligent control: 1-10V dimming, DALI control, photoelectric sensor, motion sensor

Inquiry

Write a Review

Parameters

Model No.	Power(W)	Chips	Chips Qty	Chips S/P	Size(L×W×H)mm
FL27A-50W	50W	SMD3030	72	8S9P	256×261×78
FL27A-100WMi	100W	SMD3030	144	8S18P	286×316×78
FL27A-150WS	150W	SMD3030	288	8S36P	330×414×78
FL27A-200WS	200W	SMD3030	288	8S36P	330×414×78
FL27A-250WM	250W	SMD3030	576	8S72P	431×525×79
FL27A-300WM	300W	SMD3030	576	8S72P	431×525×79
FL27A-400WL	400W	SMD3030	960	8S120P	567×643×79
FL27A-500WL	500W	SMD3030	960	8S120P	567×643×79

Product Feature

1. Special integrated structure, avant-garde design and stable and reliable quality;

2. Precision aluminum die-casting process, stable structure, good heat dissipation effect of the lamp body;

3. The surface of the lamp body is specially sprayed with plastic treatment, which has strong resistance to salt spray and corrosion, and is suitable for harsh and complex environments;

4. Using high-efficiency SMD3030 lamp beads, and high-quality constant current drive, reliable performance and long life;

5. This series has 4 different sizes, power from 50W-500W, wide coverage, cost-effective, and can widely replace other high-power lamps;

6. Using PC lens with high light transmittance, there are various light distribution angles such as 30°/60°/90°/TYPE II/TYPE III, etc., suitable for different application scenarios.
