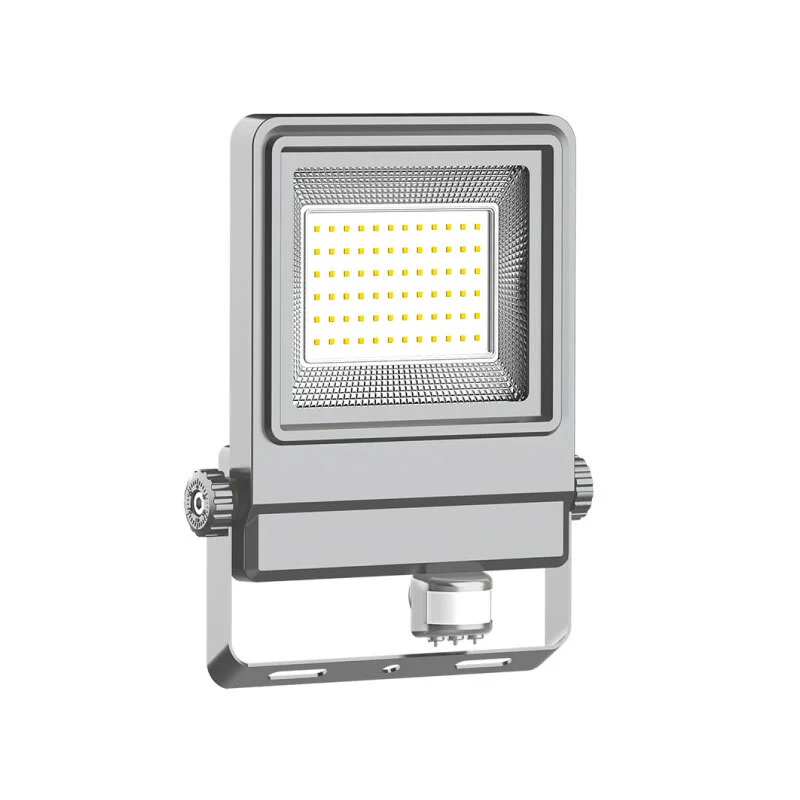

LED Flood Light Superior Quality & High Brightness CHZ-FL39 Series
Product Description
1. Special integrated structure, avant-garde design and stable and reliable quality;
2. Precision aluminum die-casting process, stable structure, good heat dissipation effect of the lamp body;
3. The surface of the lamp body is specially sprayed with plastic treatment, which has strong resistance to salt spray and corrosion, and is suitable for harsh and complex environments;
4. Using high-efficiency SMD3030 lamp beads, and high-quality constant current drive, reliable performance and long life;
5. This series has 4 different sizes, power from 50W-500W, wide coverage, cost-effective, and can widely replace other high-power lamps;
6. Using PC lens with high light transmittance, there are various light distribution angles such as 30°/60°/90°/TYPE II/TYPE III, etc., suitable for different application scenarios.
Die-Casting AI Heat Sink
ADC 12 technology,
thermal conductivity 96W/m@25°C
result in excellent thermal management
Adjustable Bracket
Rotatable土150°
Offset Bracket
make the installation easier, allow the installation process without
removing the bracket， save timeand labor cost
A
Applications
Widely used in factories, mines, squares,
transportation hubs, stadiums, golf
courses and docks, etc
| Model No. | Power(W) | Chips | Chips Qty | Chips S/P | Lumen(Lm/W) | Beam Angle | Size(L×W×H)mm |
| FL39-50W | 50W | SMD2835 | 120 | 12S10P | >150 | 120° | 293×237×47 |
| FL39-100W | 100W | SMD2835 | 240 | 24S10P | >150 | 120° | 343×280×55 |
| FL39-150W | 150W | SMD2835 | 351 | 27S13P | >150 | 120° | 424×320×61 |
| FL39-200W | 200W | SMD2835 | 476 | 28S17P | >150 | 120° | 476×366×63 |
| FL39-250W | 250W | SMD2835 | 600 | 25S24P | >150 | 120° | 569×406×69 |
| FL39-300W | 300W | SMD2835 | 725 | 25S29P | >150 | 120° | 569×406×69 |
| FL39-50W | 50W | SMD2835 | 120 | 24S5P | >150 | 120° | 293×237×47 |
| FL39-50W | 50W | SMD2835 | 144 | 12S12P | >120 | 25°/45° /60°/90° /50°×120°/80°×150° | 293×237×47 |
| FL39-100W | 100W | SMD2835 | 216 | 24S9P | >120 | 25°/45° /60°/90° /50°×120°/80°×150° | 343×280×55 |
| FL39-150W | 150W | SMD2835 | 384 | 24S16P | >120 | 25°/45° /60°/90° /50°×120°/80°×150° | 424×320×61 |
| FL39-200W | 200W | SMD2835 | 480 | 24S20P | >120 | 25°/45° /60°/90° /50°×120°/80°×150° | 476×366×63 |
| FL39-250W | 250W | SMD2835 | 600 | 24S25P | >120 | 25°/45° /60°/90° /50°×120°/80°×150° | 569×406×69 |
| FL39-300W | 300W | SMD2835 | 600 | 24S25P | >120 | 25°/45° /60°/90° /50°×120°/80°×150° | 569×406×69 |
| FL39-10WS | 10W | SMD2835 | 12 | 4S3P | >110 | 120° | 159×127×44 |
| FL39-20WS | 20W | SMD2835 | 24 | 8S3P | >110 | 120° | 188×147×44 |
| FL39-30WS | 30W | SMD2835 | 40 | 8S5P | >120 | 120° | 242×193×46 |
| FL39-50WS | 50W | SMD2835 | 72 | 8S9P | >120 | 120° | 293×237×47 |
| FL39-100WS | 100W | SMD2835 | 144 | 8S18P | >120 | 120° | 343×280×55 |
Details
