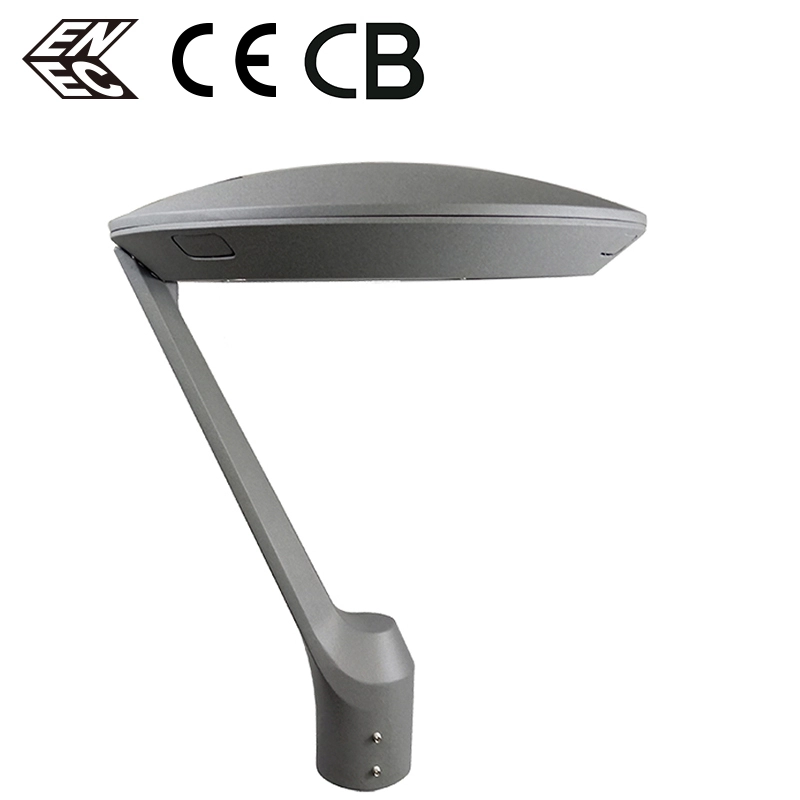

Garden Light Led CHZ-GD34 Yard Lighting 1

Garden Light Led CHZ-GD34 Yard Lighting 2

Garden Light Led CHZ-GD34 Yard Lighting 3

Garden Light Led CHZ-GD34 Yard Lighting 4

Garden Light Led CHZ-GD34 Yard Lighting 5

Garden Light Led CHZ-GD34 Yard Lighting 6

Garden Light Led CHZ-GD34 Yard Lighting

Inquiry

Write a Review

Parameters

Model No.	Power(W)	Chips	Chips Qty	Chips S/P	Protection Class	Lumen(LM/W)	Size(L×W×H)mm
GD34A-30W	30W	SMD3030	144	8S18P	Class I	>130	φ479×589
GD34A-40W	40W	SMD3030	144	8S18P	Class I	>130	φ479×589
GD34A-50W	50W	SMD3030	144	8S18P	Class I	>130	φ479×589
GD34A-60W	60W	SMD3030	144	8S18P	Class I	>130	φ479×589
GD34A-90W	90W	SMD3030	192	8S24P	Class I	>130	φ479×589
GD34A-120W	120W	SMD3030	192	8S24P	Class I / II	>130	φ479×589
GD34A-30W	30W	SMD3030	192	8S24P	Class II	>130	φ479×589
GD34A-40W	40W	SMD3030	192	8S24P	Class II	>130	φ479×589
GD34A-50W	50W	SMD3030	192	8S24P	Class II	>130	φ479×589
GD34A-60W	60W	SMD3030	192	8S24P	Class II	>130	φ479×589
GD34A-80W	80W	SMD3030	192	8S24P	Class II	>130	φ479×589
GD34A-100W	100W	SMD3030	192	8S24P	Class II	>130	φ479×589

Product Features

1) The simple design of the whole lamp is beautiful and generous; at the same time it can be disassembled, the package is small in size and convenient for transportation;
2) The lamp body is made of aluminum die-casting material, galvanized and surface electrostatically sprayed. The conventional colors are gray and black (Color Reference, RAL 9005/7015 RAL), the surface is smooth and corrosion-resistant;
3) The dual diffuser illuminance diffuser makes the light more uniform, no glare, and the light is more comfortable;
4) The whole lamp has good protection performance and reaches IP66 and IK09. It has reliable performance and is not easy to be damaged.
5) Imported 3030E light source and high performance drive, stable operation, high luminous efficiency and long service life;
6) Easily handled by hand, tool free. When operation, it will be switched off. Make sure safety of the technicians.
7) It can be matched with photocell on the top. So that intelligent control can be realized.

Garden Light Led CHZ-GD34 Yard Lighting 7

Light distribution curve：

Garden Light Led CHZ-GD34 Yard Lighting 8

145°x80°

Garden Light Led CHZ-GD34 Yard Lighting 9

150°x150°

Garden Light Led CHZ-GD34 Yard Lighting 10

Garden Light Led CHZ-GD34 Yard Lighting 11

Garden Light Led CHZ-GD34 Yard Lighting 12

Garden Light Led CHZ-GD34 Yard Lighting 13

Applications

Widely used in urban roads, parking lots, bicycle lanes, gardens, plazas, residential areas and other outdoor venues.

Garden Light Led CHZ-GD34 Yard Lighting 14

Garden Light Led CHZ-GD34 Yard Lighting 15

>> CHZ products are designed for the global market. Please contact our sales team for certification details.

>> Products information is for reference only. Some options may not be available for each configuration. Please contact us for further details.

Model No.	CHZ-GD34A, CHZ-GD34B, CHZ-GD34C, CHZ-GD34D, CHZ-GD34E, CHZ-GD34F
Power	30W, 40W, 50W, 60W, 90W, 120W
Efficacy	>130lm/W
Input Voltage	100-240/277 VAC, 50 / 60 Hz
Power Factor	>0.95
Surge Protection	10KV (Default) / 20KV (available on request) with IEC61643-11
IP Rating	IP66
IK Rating	IK09
CCT	3000K, 4000K, 5000K, 5700K, 6500K
CRI	Ra>70 (Default) / Ra>80
Operating Temperature	-40°C to + 50°C
Beam Angle	Type II, Type V
Mounting Option	Side entry, or vertical pole mounted with adapters
Warranty	5 Years
Certification	CE, RoHS, ENEC, ENEC+, CB, Zhaga-D4i, LM79, LM80, TM-21, IP66, IK09/IK10, IEC62471/62778, IEC60068-2-6, IEC61643-11, ISO9227, CISPR15:2018
Control	Daylightsensor, DALI Dimmable, NEMA / Zhaga Socket, Motion Sensor, 1-10V Dimmable, Zigbee or LORA control

TYPE II

150°×70°

TYPE V

140°×40°

Garden Light Led CHZ-GD34 Yard Lighting 26

Specifications GD34

User manual GD34A CLASS I

User manual GD34A CLASS II

庭院灯案例08

庭院灯案例07

庭院灯案例06

庭院灯案例05

庭院灯案例04

庭院灯案例03

Frequently Asked Questions

What's customized dimming profile?

The so-called dimming profile refers to a specific timer dimming function. Rural roads and urban roads have different needs for dimming configurations. At the same time, the timer dimming function of lamps can be customized. For example, rural roads usually have fewer people after 10 p.m., and the dimming curve can be maintained at 100% brightness from 18:00 to 22:00, and adjusted to 50% brightness from 22:00 to 06:00; while the situation on urban roads may require delaying the time by 1-2 hours. The dimming curve can be set to maintain 100% brightness from 18:00 to 24:00, and adjust to 50% brightness from 24:00 to 06:00. CHZ can customize such a dimming curve for you, please contact us for more information.

Dali +timer dimming or 0-10V+timer dimming?

Dimming profile uses the dimming function of the lamp. For example, if 0-10V + timer dimming is used, after setting the timer dimming of the lamp, the controller sends a 0-10V dimming signal to the power supply of the lamp, but the power supply will not perform the dimming operation. And if your lamp is configured with Dali + timer dimming, then after setting the timer dimming, the controller sends a Dali dimming signal to the power supply of the lamp, and the power supply can still execute the instructions of the Dali signal. However, it should be noted that the cost of lamps in the latter is often much higher than that in the former. If your budget is limited, it is recommended to choose the former; if your budget is sufficient, it is best to choose the latter.

Which power supplies can be configured with timer dimming function?

Power supply manufacturers such as Inventronics, Osram, Philips, Done, and Meanwell all provide scheduled dimming functions. CHZ recommends using the timed dimming function of Inventronics, because Inventronics is comparable to Philips and Osram in terms of dimming and product quality, and the price is more affordable. If your budget is limited, Dong’s power supply is also a good choice.
