High Mast Lamp Price List

Inquiry

>> CHZ products are designed for the global market. Please contact our sales team for certification details.

>> Products information is for reference only. Some options may not be available for each configuration. Please contact us for further details.

Model No.	CHZ-FL44 series
Power	250W, 500W, 750W, 1000W, 1250W
Efficacy	>160lm/W or above
Input Voltage	100-240/277 VAC, 50 / 60 Hz
Power Factor	>0.95
Surge Protection	10KV (Default) / 20KV (available on request) with IEC61643-11
IP Rating	IP66
IK Rating	IK08 or IK09
CCT	2200K, 3000K, 4000K, 5000K, 5700K, 6500K
CRI	Ra>70 (Default) / Ra>80
Operating Temperature	-40°C to + 50°C
Beam Angle	10°, 15°, 25°, 45°, 60°, 90°, 65°×25°
Mounting Option	Side entry, or vertical pole mounted with adapters
Warranty	5 Years
Certification/Report	CE, RoHS, ENEC, ENEC+, CB, Zhaga-D4i, LM79, LM80, TM-21, IP66, IK09/IK10, IEC62471/62778, IEC60068-2-6, IEC61643-11, ISO9227, CISPR15:2018
Control	Daylightsensor, DALI Dimmable, NEMA / Zhaga Socket, Motion Sensor, 1-10V Dimmable, Zigbee or LORA control

10°

15°

25°

30°

45°

60°

90°

65°×25°

Specifications FL44

User manual FL44

Frequently Asked Questions

What's customized dimming profile?

The so-called dimming profile refers to a specific timer dimming function. Rural roads and urban roads have different needs for dimming configurations. At the same time, the timer dimming function of lamps can be customized. For example, rural roads usually have fewer people after 10 p.m., and the dimming curve can be maintained at 100% brightness from 18:00 to 22:00, and adjusted to 50% brightness from 22:00 to 06:00; while the situation on urban roads may require delaying the time by 1-2 hours. The dimming curve can be set to maintain 100% brightness from 18:00 to 24:00, and adjust to 50% brightness from 24:00 to 06:00. CHZ can customize such a dimming curve for you, please contact us for more information.

Dali +timer dimming or 0-10V+timer dimming?

Dimming profile uses the dimming function of the lamp. For example, if 0-10V + timer dimming is used, after setting the timer dimming of the lamp, the controller sends a 0-10V dimming signal to the power supply of the lamp, but the power supply will not perform the dimming operation. And if your lamp is configured with Dali + timer dimming, then after setting the timer dimming, the controller sends a Dali dimming signal to the power supply of the lamp, and the power supply can still execute the instructions of the Dali signal. However, it should be noted that the cost of lamps in the latter is often much higher than that in the former. If your budget is limited, it is recommended to choose the former; if your budget is sufficient, it is best to choose the latter.

Which power supplies can be configured with timer dimming function?

Power supply manufacturers such as Inventronics, Osram, Philips, Done, and Meanwell all provide scheduled dimming functions. CHZ recommends using the timed dimming function of Inventronics, because Inventronics is comparable to Philips and Osram in terms of dimming and product quality, and the price is more affordable. If your budget is limited, Dong’s power supply is also a good choice.

Related Products

CHZ-FL21A led floodlight for football fields

CHZ-FL22 aluminum led floodlight outdoor with ce rohs

CHZ-FL32 modules assembly stadium led sports floodlights

CHZ-FL38 New arrival LED best stadium lighting

Related Blogs

What are the Basketball Court Lighting Standards?

Flood Light's Buying Guide

How are LED Stadium Lights Beneficial for Green Sports Events?

Why are Football Field Lights Important to a Football Match?

What are the Uses of LED High Mast Lighting?

Brightening the Game: Essential Tips for Football Field Lighting

What is the Illumination & Colour Temperature for Athletic Field Lighting?

Light Up Your Game: The Ultimate Guide to Basketball Court Lighting

Best led high mast light manufacturer, factory, and supplier in China

We are a led high mast light manufacturer, factory, and supplier in China since 2013 and also a high-tech enterprise in Shanghai. The factory is ISO9001, ISO14001, ISO45001, and ISO50001 certified. We are very good at designing, producing, and developing various high-quality road lights.

OEM/ODM is acceptable for us. All the LED high mast light is made of good materials for up to 50,000hrs, ENEC, CB, and CE RoHS certificates. The Photocell, NEMA/ZHAGA socket, smart control, 0-10V, DALI, DALI2, and DC12V-48V low voltage can be available.

Please feel free to consult all questions about high mast lighting projects. We will provide free high mast lighting design, the best products, the best service, and the price you like.

Why choose us as your high mast lights supply in China?

OEM/ODM

Available to do OEM/ODM for all high mast lighting luminaire. No MOQ limits for led high mast lights retailers, wholesalers, and engineering companies.

FAST DELIVERY TIME

As a reliable high mast light supplier, we have stocks of raw materials for flood lights, regular delivery time is 5~7 working days for samples and 20~25 working days for bulk.

BEST QUALITY&PRICE

We use top stable quality led driver and chips like Philips driver and chips for all road lights. Providing 5/7 years warranty at the cheapest price.

CERTIFICATES

Our smart high mast light are ENEC, ENEC+, CB, CE, RoHS, IECEE, SAA, and ETL approved, and our factory ISO9001, ISO14001, ISO45001, and ISO50001 certified.

Certification Show

As a professional manufacturer of led high mast light luminaire, our flood luminaires have rich certification and test reports, such as ENEC, ENEC+, CE, CB, ROHS, IEC62471, LM80, LM79, and so on

ISO9001

ISO14001

ISO45001

ISO50001

ENEC

ENEC+

CCC

ETL

SAA

COMPONENT	STANDARDS	TEST REPORT	CERTIFICATIONS
LED chips	LM80	✔
SMD2835SMD3030SMD5050SMD3535SMD3737	EN/IEC 60598-1 y 60598-2-3	✔	✔
	IEC 62471	✔
	EN/IEC 60529	✔
	EN/IEC 62262	✔
	EN/IEC 60068-2-75	✔
	EN/IEC 55015	✔	✔
	EN/IEC 61000-3-2	✔	✔
	EN 61547	✔	✔
	EN 61000-3-3	✔	✔
	LM79	✔
	ISTMT	✔
	TM-21	✔
	LM82	✔
	LM84	✔
	ISO9007 /ASTM B117	✔
	IEC 60068-2-6/ANSI C136.31	✔
LED MODULE	EN/IEC 62031	✔
LED DRIVER	IEC 62384,IEC 61347-1,IEC 61347-2-13	✔	✔
SPD	EN/IEC 61643-11	✔	✔
FACTORY	ISO9001,ISO14001,ISO50001,ISO45001		✔

R & D Team

研发图片 (1).png

研发图片 (6).png

研发图片 (7).png

研发图片 (2).png

研发图片 (4).png

研发图片 (5).png

Product Testing

In order to ensure the high quality of each product, we will conduct more than 30 different aspects of testing in our own laboratory before the product goes on the market. After all the tests are passed, the product can be approved for marketing. In mass production, for some basic safety and performance tests, we will conduct 100% testing to ensure that every product delivered to the customer is perfect.





Production Process

生产图片 (3).png

生产图片 (2).png

生产图片 (1).png

生产图片 (6).png

生产图片 (5).png

生产图片 (4).png

Company Advantages

· The new type of high mast lamp designed by our engineers is very ingenious and practical.

· This product conforms to the international quality standard.

· This product is very affordable to meet the requirement as desired.

Company Features

· With years of commitment to high mast lamp production, Shanghai CHZ Lighting Co.,Ltd has been acting flexibly to the market and gained recognition.

· Products offered by us are manufactured under the supervision of our highly experienced professionals in complete compliance with set industry standards using the high grade basic material.

· Our value promising is based on innovative design, impeccable engineering, outstanding execution and quality service within budget and timelines. Check now!

Application of the Product

Our high mast lamp is widely used in various scenarios.

CHZ Lighting always pays attention to customers. According customers' actual needs, we could customize comprehensive and professional solutions for them.

Product Description

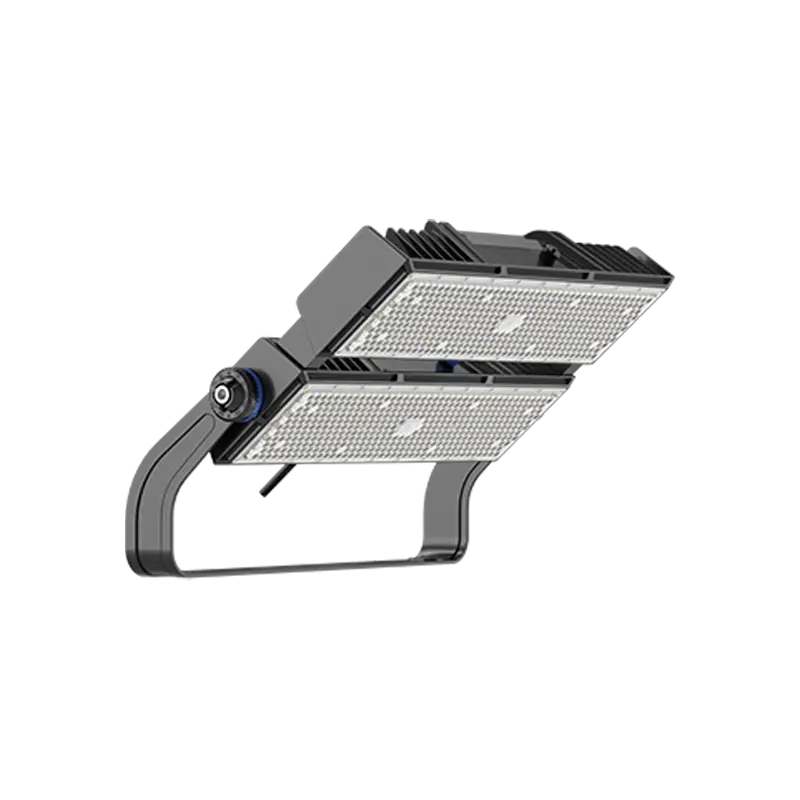

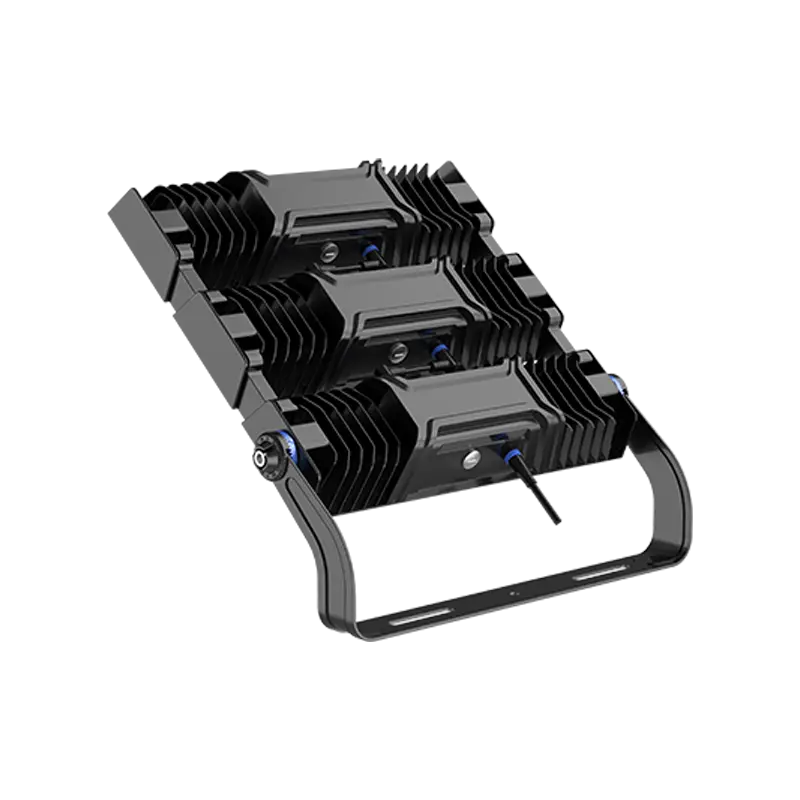

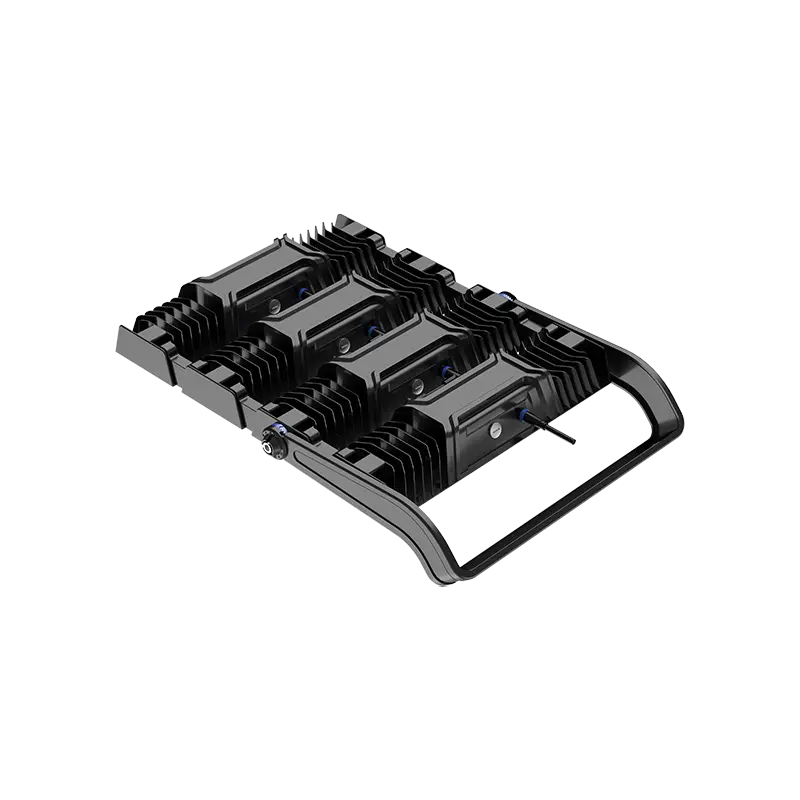

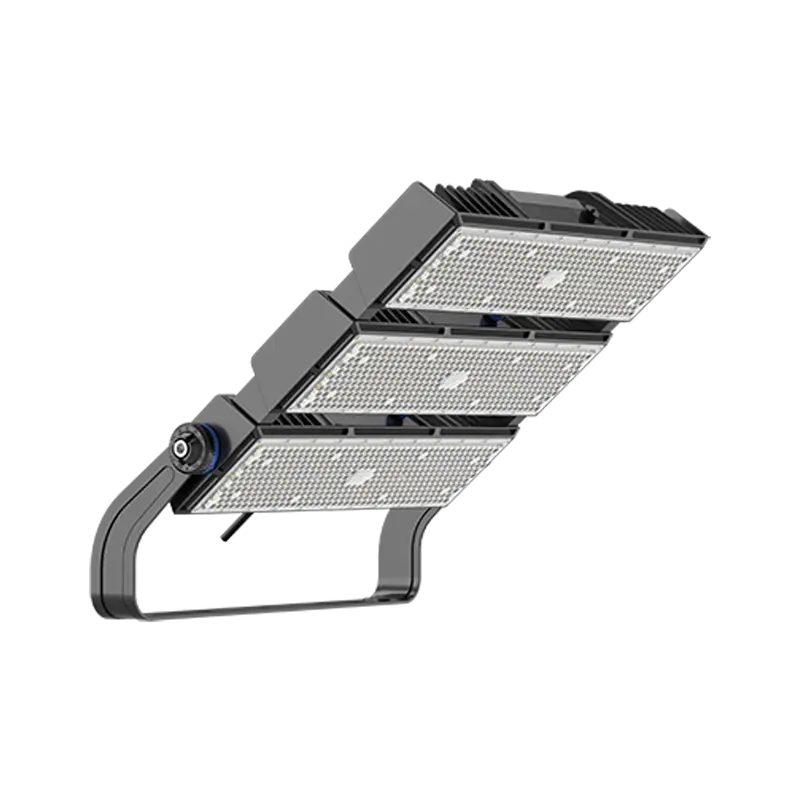

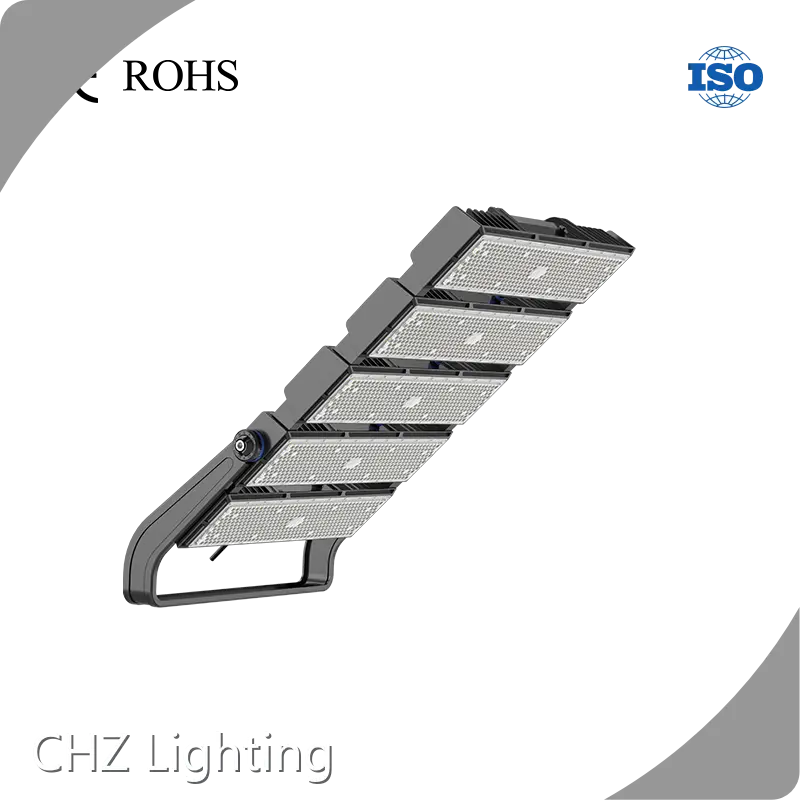

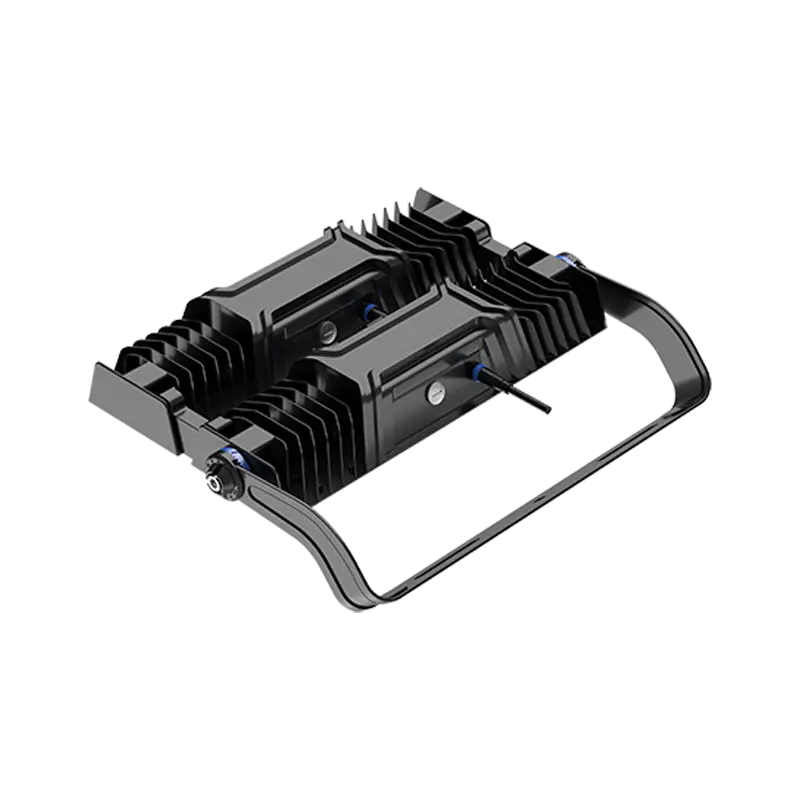

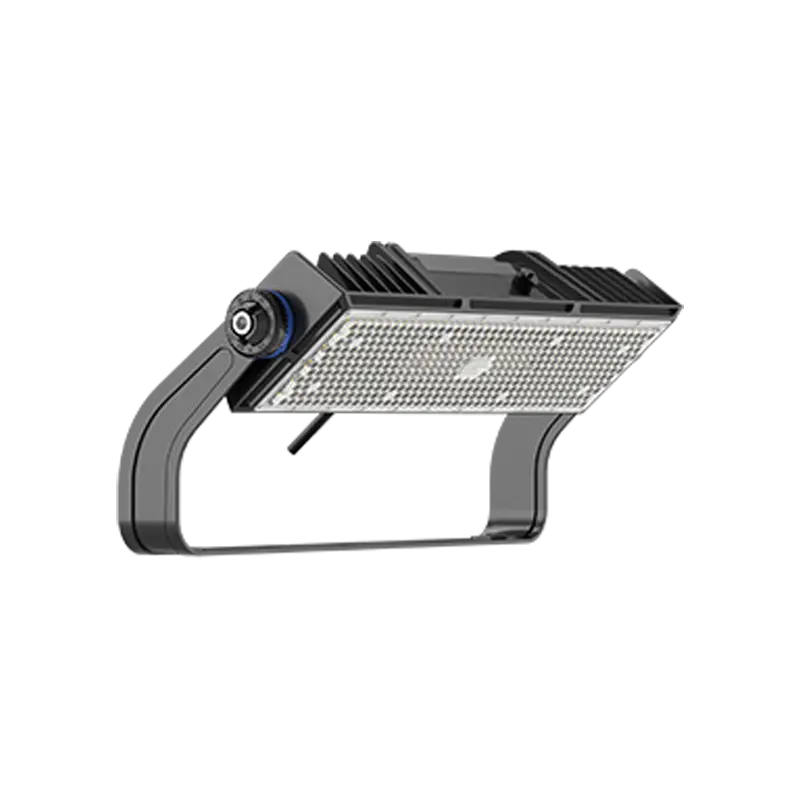

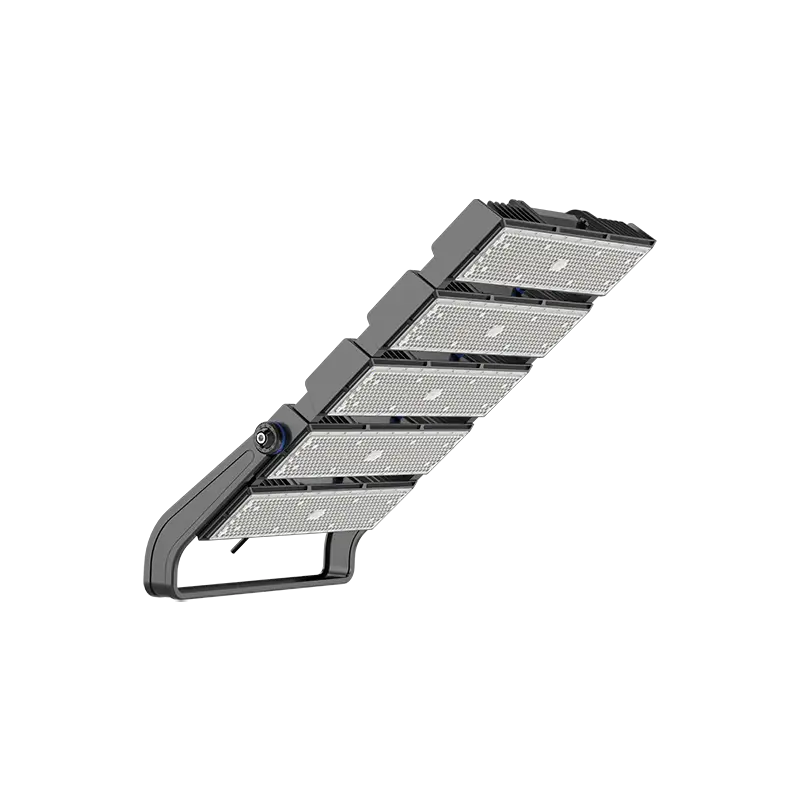

CHZ-FL44 High-power freely assembled module LED floodlight

A. Very innovative design style, realize the assembly of 1 to 5 modules, the assembly and maintenance process is simple.

B. The radiator is made of 6063 aviation aluminum material with good heat dissipation effect.

C. Special spray treatment on the surface of the lamp, strong resistance to salt spray corrosion, suitable for harsh environments.

D. Adapt to high-quality SMD3737 or SMD2835 lamp beads, and high-quality constant current drive, stable performance and long life; the overall protection level reaches IP66.

E. Adopt high transmittance PC lens, vaiours beam angle, such as 10°/25°/40°/60°/90° or 65°x25° are optional, suitable for different application scenarios.

F. The modules can be assembled freely, and the power of each module can be adjusted from 150W to 250W, which is very suitable for customers to do DIY.

Model No.	Power(W)	Chips	Input Volt(V)	Beam Angle	Color Temp	CRI	Lumen(LM/W)
FL44-250W	250	OSRAM3737	100-277	10°/15°25°/45°/60°/90°/65°×25°	3000-6500K	>70	> 160Lm/W
FL44-500W	500	OSRAM3737	100-277	10°/15°25°/45°/60°/90°/65°×25°	3000-6500K	>70	> 160Lm/W
FL44-750W	750	OSRAM3737	100-277	10°/15°25°/45°/60°/90°/65°×25°	3000-6500K	>70	> 160Lm/W
FL44-1000W	1000	OSRAM3737	100-277	10°/15°25°/45°/60°/90°/65°×25°	3000-6500K	>70	> 160Lm/W
FL44-1250W	1250	OSRAM3737	100-277	10°/15°25°/45°/60°/90°/65°×25°	3000-6500K	>70	> 160Lm/W
FL44-250W	250	PHILIPS2835	100-277	10°/15°25°/45°/60°/90°/65°×25°	3000-6500K	>70	＞150Lm/W
FL44-500W	500	PHILIPS2835	100-277	10°/15°25°/45°/60°/90°/65°×25°	3000-6500K	>70	＞150Lm/W
FL44-750W	750	PHILIPS2835	100-277	10°/15°25°/45°/60°/90°/65°×25°	3000-6500K	>70	＞150Lm/W
FL44-1000W	1000	PHILIPS2835	100-277	10°/15°25°/45°/60°/90°/65°×25°	3000-6500K	>70	＞150Lm/W
FL44-1250W	1250	PHILIPS2835	100-277	10°/15°25°/45°/60°/90°/65°×25°	3000-6500K	>70	＞150Lm/W

PHILIPS2835/OSRAM3737 High quality LED wick

Low power consumption and high brightness

SMD LED Chips

High Brightness

AC100-277V

Efficient Cooling

Service life

Die-casting Aluminum housing

High brightness chip

Adjustable module

180° rotation inclined bracket

VDE/UL listed 3*1.0mm² rubber cable

Application Scenario

Widely used in large space lighting places exhibition center, large warehouses, soccer or football field, indoor stadiums and etc.

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
