High Mast Led Street Light Price List

Inquiry

>> CHZ products are designed for the global market. Please contact our sales team for certification details.

>> Products information is for reference only. Some options may not be available for each configuration. Please contact us for further details.

Model No.	CHZ-FL21A series
Power	100W, 200W, 300W, 400W, 480W, 600W, 800W, 900W
Efficacy	>160lm/W or above
Input Voltage	100-240/277 VAC, 50 / 60 Hz
Power Factor	>0.95
Surge Protection	10KV (Default) / 20KV (available on request) with IEC61643-11
IP Rating	IP66
IK Rating	IK08 or IK09
CCT	2200K, 3000K, 4000K, 5000K, 5700K, 6500K
CRI	Ra>70 (Default) / Ra>80
Operating Temperature	-40°C to + 50°C
Beam Angle	30°, 60°, 90°, TYPE II, TYPE III, TYPE IV, TYPE V
Mounting Option	Side entry, or vertical pole mounted with adapters
Warranty	5 Years
Certification/Report	CE, RoHS, ENEC, ENEC+, CB, Zhaga-D4i, LM79, LM80, TM-21, IP66, IK09/IK10, IEC62471/62778, IEC60068-2-6, IEC61643-11, ISO9227, CISPR15:2018
Control	Daylightsensor, DALI Dimmable, NEMA / Zhaga Socket, Motion Sensor, 1-10V Dimmable, Zigbee or LORA control

30°

60°

90°

TYPE II 150°×70°.png

TYPE III 140°×80°.png

TYPE IV 50°×140°.png

TYPE V 140°×40°.png

High Mast Led Street Light Price List 26

Specifications FL21A

User manual FL21A

High Mast Led Street Light Price List 28

High Mast Led Street Light Price List 29

High Mast Led Street Light Price List 30

High Mast Led Street Light Price List 31

High Mast Led Street Light Price List 32

High Mast Led Street Light Price List 33

Frequently Asked Questions

What's customized dimming profile?

The so-called dimming profile refers to a specific timer dimming function. Rural roads and urban roads have different needs for dimming configurations. At the same time, the timer dimming function of lamps can be customized. For example, rural roads usually have fewer people after 10 p.m., and the dimming curve can be maintained at 100% brightness from 18:00 to 22:00, and adjusted to 50% brightness from 22:00 to 06:00; while the situation on urban roads may require delaying the time by 1-2 hours. The dimming curve can be set to maintain 100% brightness from 18:00 to 24:00, and adjust to 50% brightness from 24:00 to 06:00. CHZ can customize such a dimming curve for you, please contact us for more information.

Dali +timer dimming or 0-10V+timer dimming?

Dimming profile uses the dimming function of the lamp. For example, if 0-10V + timer dimming is used, after setting the timer dimming of the lamp, the controller sends a 0-10V dimming signal to the power supply of the lamp, but the power supply will not perform the dimming operation. And if your lamp is configured with Dali + timer dimming, then after setting the timer dimming, the controller sends a Dali dimming signal to the power supply of the lamp, and the power supply can still execute the instructions of the Dali signal. However, it should be noted that the cost of lamps in the latter is often much higher than that in the former. If your budget is limited, it is recommended to choose the former; if your budget is sufficient, it is best to choose the latter.

Which power supplies can be configured with timer dimming function?

Power supply manufacturers such as Inventronics, Osram, Philips, Done, and Meanwell all provide scheduled dimming functions. CHZ recommends using the timed dimming function of Inventronics, because Inventronics is comparable to Philips and Osram in terms of dimming and product quality, and the price is more affordable. If your budget is limited, Dong’s power supply is also a good choice.

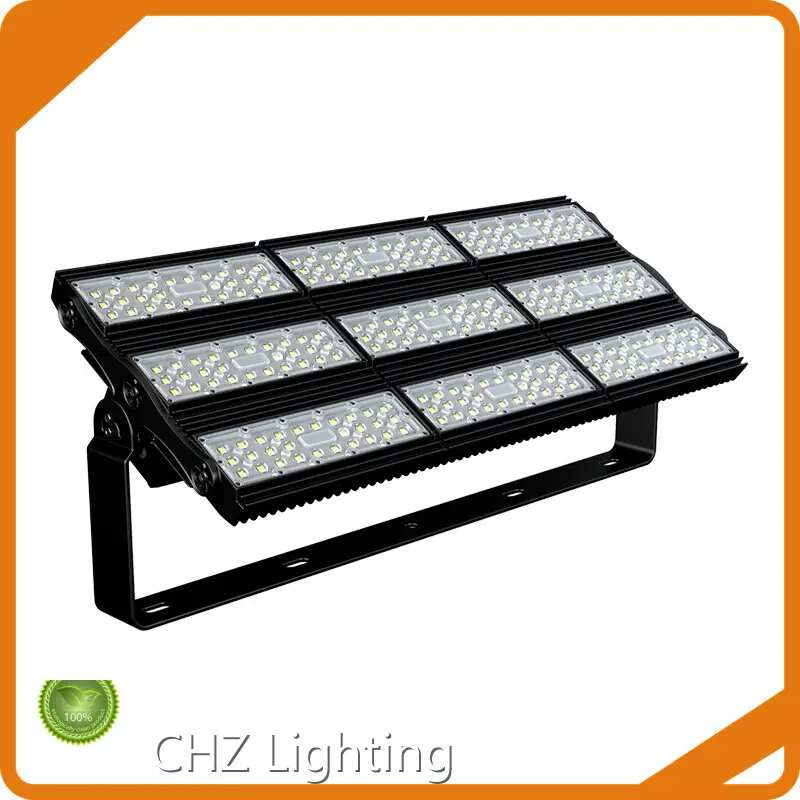

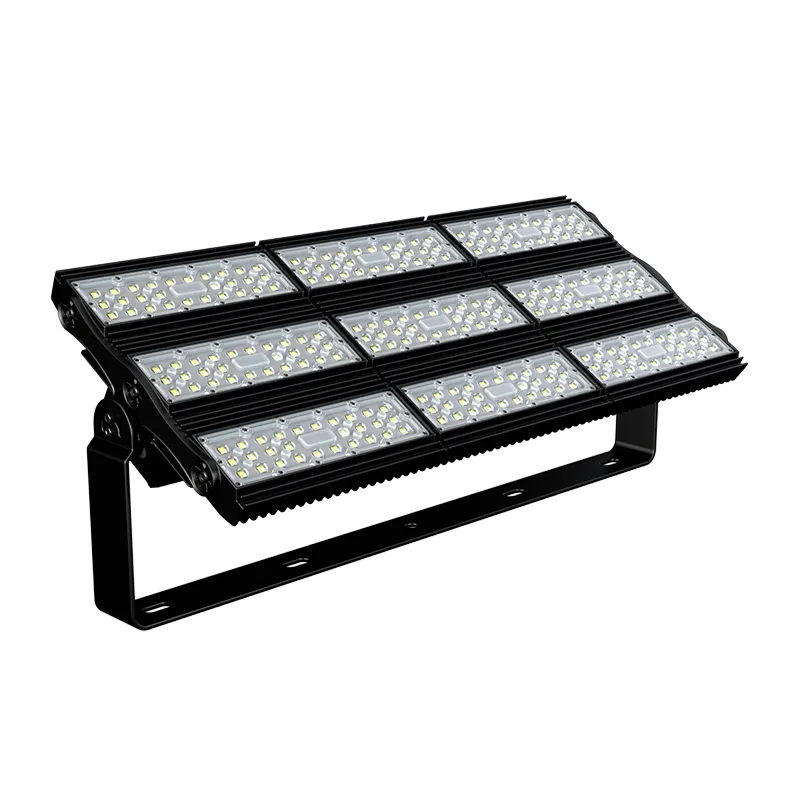

FL21A high power led flood light is available in 100W, 200W, 300W, 400W, 480W, 600W, 800W and 900W. Its ultra-high luminous flux can reach 130,500 lumens, making it suitable for lighting large areas such as large sports fields, docks, airports, etc. Up to five different beam angles ensure uniform field lighting and reduce glare. Its unique finned aluminum heat sink effectively increases the heat dissipation area and airflow channel, reduces the operating temperature of the LED chip, and thus slows down light decay. In addition, accessories such as glare shields and aiming devices are also available, making it an ideal sports field lighting fixture.

FL21A high power led flood light is a stadium light that can be stacked sideways so that it will fit a tight space without compromising the lighting effect. From 100-900W, it will still be as bright as our other lights. Having the vertical design means it can be used in lots of places, from the rooftop or light poles alike.

This stadium light features a light housing of ADC-12 die-cast material, assuring a great heat dissipation effect and long lifespan. Also, the wide range of choices of drivers, LED chips, mounting brackets and baffles allows quick assembly at the client's request.

Not only the build can be upon request, the beam angle as well. 30°, 60°, asymmetric 60°， even type II, type III, IV, and V is available to choose from.

Related Products

High Mast Led Street Light Price List 34

CHZ-FL21 IP66 waterproof 100000 lumen 1200w led floodlight outdoor

CHZ-FL32 modules assembly stadium led sports floodlights

CHZ-FL38 New arrival LED best stadium lighting

High Mast Led Street Light Price List 37

CHZ-FL44 High-power freely assembled module LED floodlight

Related Blogs

High Mast Led Street Light Price List 38

What are the Basketball Court Lighting Standards?

Flood Light's Buying Guide

High Mast Led Street Light Price List 40

How are LED Stadium Lights Beneficial for Green Sports Events?

Why are Football Field Lights Important to a Football Match?

What are the Uses of LED High Mast Lighting?

High Mast Led Street Light Price List 43

Brightening the Game: Essential Tips for Football Field Lighting

What is the Illumination & Colour Temperature for Athletic Field Lighting?

Light Up Your Game: The Ultimate Guide to Basketball Court Lighting

Best led high mast light manufacturer, factory, and supplier in China

We are a led high mast light manufacturer, factory, and supplier in China since 2013 and also a high-tech enterprise in Shanghai. The factory is ISO9001, ISO14001, ISO45001, and ISO50001 certified. We are very good at designing, producing, and developing various high-quality road lights.

OEM/ODM is acceptable for us. All the LED high mast light is made of good materials for up to 50,000hrs, ENEC, CB, and CE RoHS certificates. The Photocell, NEMA/ZHAGA socket, smart control, 0-10V, DALI, DALI2, and DC12V-48V low voltage can be available.

Please feel free to consult all questions about high mast lighting projects. We will provide free high mast lighting design, the best products, the best service, and the price you like.

Why choose us as your high mast lights supply in China?

High Mast Led Street Light Price List 47

OEM/ODM

Available to do OEM/ODM for all high mast lighting luminaire. No MOQ limits for led high mast lights retailers, wholesalers, and engineering companies.

High Mast Led Street Light Price List 48

FAST DELIVERY TIME

As a reliable high mast light supplier, we have stocks of raw materials for flood lights, regular delivery time is 5~7 working days for samples and 20~25 working days for bulk.

High Mast Led Street Light Price List 49

BEST QUALITY&PRICE

We use top stable quality led driver and chips like Philips driver and chips for all road lights. Providing 5/7 years warranty at the cheapest price.

High Mast Led Street Light Price List 50

CERTIFICATES

Our smart high mast light are ENEC, ENEC+, CB, CE, RoHS, IECEE, SAA, and ETL approved, and our factory ISO9001, ISO14001, ISO45001, and ISO50001 certified.

Certification Show

As a professional manufacturer of led high mast light luminaire, our flood luminaires have rich certification and test reports, such as ENEC, ENEC+, CE, CB, ROHS, IEC62471, LM80, LM79, and so on

ISO9001

ISO14001

ISO45001

ISO50001

ENEC

ENEC+

CCC

ETL

SAA

COMPONENT	STANDARDS	TEST REPORT	CERTIFICATIONS
LED chips	LM80	✔
SMD2835SMD3030SMD5050SMD3535SMD3737	EN/IEC 60598-1 y 60598-2-3	✔	✔
	IEC 62471	✔
	EN/IEC 60529	✔
	EN/IEC 62262	✔
	EN/IEC 60068-2-75	✔
	EN/IEC 55015	✔	✔
	EN/IEC 61000-3-2	✔	✔
	EN 61547	✔	✔
	EN 61000-3-3	✔	✔
	LM79	✔
	ISTMT	✔
	TM-21	✔
	LM82	✔
	LM84	✔
	ISO9007 /ASTM B117	✔
	IEC 60068-2-6/ANSI C136.31	✔
LED MODULE	EN/IEC 62031	✔
LED DRIVER	IEC 62384,IEC 61347-1,IEC 61347-2-13	✔	✔
SPD	EN/IEC 61643-11	✔	✔
FACTORY	ISO9001,ISO14001,ISO50001,ISO45001		✔

R & D Team

研发图片 (1).png

研发图片 (6).png

研发图片 (7).png

研发图片 (2).png

研发图片 (4).png

研发图片 (5).png

Product Testing

In order to ensure the high quality of each product, we will conduct more than 30 different aspects of testing in our own laboratory before the product goes on the market. After all the tests are passed, the product can be approved for marketing. In mass production, for some basic safety and performance tests, we will conduct 100% testing to ensure that every product delivered to the customer is perfect.





Production Process

生产图片 (3).png

生产图片 (2).png

生产图片 (1).png

生产图片 (6).png

生产图片 (5).png

生产图片 (4).png

Company Advantages

· high mast led street light is designed by renowned designers in the field.

· To rule out every possibility of defect, the product is subject to the thorough inspection conducted by professional quality inspectors.

· The product is provided as per the precise needs of the customers in the market.

Company Features

· As a manufacturer with years of experience, Shanghai CHZ Lighting Co.,Ltd takes pride in bringing products such as high mast led street light to the markets.

· Our export share occupies 80% to 90%, mainly to countries like North America, Europe, and the Mid East. We have helped our customers stay in a superior position in their market.

· Every one of our CHZ Lighting workers has a frequent aim of serving every client with our experience. Ask online!

Application of the Product

high mast led street light of CHZ Lighting can be used in different industries to meet the needs of customers in different fields.

We understand the actual situation of the market, and then combine the needs of customers. In this way, we develop the most suitable solutions for customers and effectively meet their needs.

Parameters

Model No.	Power(W)	Chips	Chips Qty	Chips S/P	Lumen(Lm/W)	Beam Angle	Size(L×W×H)mm
FL21A-100W	100W	SMD3030	99	11P9S	>120	30° / 60° / 90° / 60×90° / TYPE II / TYPE III / TYPE IV / TYPE V	298×145×94
FL21A-200W	200W	SMD3030	198	11P9S	>120	30° / 60° / 90° / 60×90° / TYPE II / TYPE III / TYPE IV / TYPE V	326×277×118
FL21A-300W	300W	SMD3030	297	11P9S	>120	30° / 60° / 90° / 60×90° / TYPE II / TYPE III / TYPE IV / TYPE V	326×402×118
FL21A-400W	400W	SMD3030	396	11P9S	>120	30° / 60° / 90° / 60×90° / TYPE II / TYPE III / TYPE IV / TYPE V	613×279×118
FL21A-480W	480W	SMD3030	396	11P9S	>120	30° / 60° / 90° / 60×90° / TYPE II / TYPE III / TYPE IV / TYPE V	613×279×118
FL21A-600W	600W	SMD3030	594	11P9S	>120	30° / 60° / 90° / 60×90° / TYPE II / TYPE III / TYPE IV / TYPE V	613×404×118
FL21A-800W	800W	SMD3030	792	11P9S	>120	30° / 60° / 90° / 60×90° / TYPE II / TYPE III / TYPE IV / TYPE V	613×535×156
FL21A-900W	900W	SMD3030	891	11P9S	>120	30° / 60° / 90° / 60×90° / TYPE II / TYPE III / TYPE IV / TYPE V	896×405×156
FL21A-100W	100W	SMD5050	28	14P2S	>145	30° / 60° / 90° / 60×90° / TYPE II / TYPE III / TYPE IV / TYPE V	298×145×94
FL21A-200W	200W	SMD5050	56	14P2S	>145	30° / 60° / 90° / 60×90° / TYPE II / TYPE III / TYPE IV / TYPE V	326×277×118
FL21A-300W	300W	SMD5050	84	14P2S	>145	30° / 60° / 90° / 60×90° / TYPE II / TYPE III / TYPE IV / TYPE V	326×402×118
FL21A-400W	400W	SMD5050	112	14P2S	>145	30° / 60° / 90° / 60×90° / TYPE II / TYPE III / TYPE IV / TYPE V	613×279×118
FL21A-480W	480W	SMD5050	140	14P2S	>145	30° / 60° / 90° / 60×90° / TYPE II / TYPE III / TYPE IV / TYPE V	613×279×118
FL21A-600W	600W	SMD5050	168	14P2S	>145	30° / 60° / 90° / 60×90° / TYPE II / TYPE III / TYPE IV / TYPE V	613×404×118
FL21A-800W	800W	SMD5050	196	14P2S	>145	30° / 60° / 90° / 60×90° / TYPE II / TYPE III / TYPE IV / TYPE V	613×535×156
FL21A-900W	900W	SMD5050	224	14P2S	>145	30° / 60° / 90° / 60×90° / TYPE II / TYPE III / TYPE IV / TYPE V	896×405×156
FL21A-100W	100W	SMD3737	36	2P18S	>120	Asymmetric 60°	298×145×94
FL21A-200W	200W	SMD3737	72	2P18S	>120	Asymmetric 60°	326×277×118
FL21A-300W	300W	SMD3737	108	2P18S	>120	Asymmetric 60°	326×402×118
FL21A-400W	400W	SMD3737	144	2P18S	>120	Asymmetric 60°	613×279×118
FL21A-480W	480W	SMD3737	180	2P18S	>120	Asymmetric 60°	613×279×118
FL21A-600W	600W	SMD3737	216	2P18S	>120	Asymmetric 60°	613×404×118
FL21A-800W	800W	SMD3737	288	2P18S	>120	Asymmetric 60°	613×535×156
FL21A-900W	900W	SMD3737	324	2P18S	>120	Asymmetric 60°	896×405×156

Product Features

1)Adjustable projecting direction;
2)With die-casting ADC-12 material, the new Agility flood light has a superb heat dissipation and long lifespan;
3)VDE/UL listed 3*1.0mm² rubber cable with cold-pressed terminal;
4) Wide range of lumen output package from 11,000lm up to 130,500lm, 50% less power consumption than traditional light;
5)The combinations of different drivers, mounting brackets, modules and baffles allow the quickly assembly at customers' request;
6)With different LED chips for option, SMD3030/ SMD5050/ SMD3737, to reach various optic system, such symmetrical 30°/60°/90°/TYPE V, Asymmetrical 60°, TYPE II/ TYPE III /TYPE IV/ TYPE V to match with different applications.

High Mast Led Street Light Price List 80

High Mast Led Street Light Price List 81

Adjustable projecting direction;

High Mast Led Street Light Price List 82

With die-casting ADC-12 material, the new Agility flood light has a superb heat dissipation and long lifespan;

High Mast Led Street Light Price List 83

VDE/UL listed 3*1.0mm² rubber cable with cold-pressed terminal; Wide range of lumen output package from 11,000lm up to 130,500lm, 50% less power consumption than traditional light sources.

High Mast Led Street Light Price List 84

The combinations of different drivers, mounting brackets, modules and baffles allow the quickly assembly at customers' side as needed;

OUTLINE DRAWING(MM)

High Mast Led Street Light Price List 85

High Mast Led Street Light Price List 86

High Mast Led Street Light Price List 87

High Mast Led Street Light Price List 88

High Mast Led Street Light Price List 89

High Mast Led Street Light Price List 90

High Mast Led Street Light Price List 91

LIGHT DISTRIBUTION CURVE

High Mast Led Street Light Price List 92

Applications

Widely used for some area like square, warehouse, workshop, shelf, supermarket, seaport, indoor or outdoor stadium field and etc.

High Mast Led Street Light Price List 93

Details

High Mast Led Street Light Price List 94

High Mast Led Street Light Price List 95

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
