Product details of the outdoor garden lights

Product Description

Built with solid construction and select quality finishes, CHZ Lighting outdoor garden lights satisfies both the style and budget needs. The product has various quality attributes and high performance. The product is in compliance with the market trend.

>> CHZ products are designed for the global market. Please contact our sales team for certification details.

>> Products information is for reference only. Some options may not be available for each configuration. Please contact us for further details.

Model No.	CHZ-GD30K (K=A, B, C, D, E, F, which means different brackets)
Power	20W, 30W, 40W, 50W, 60W, 90W, 120W
Efficacy	>130lm/W
Input Voltage	100-240/277 VAC, 50/60 Hz
Power Factor	>0.95
Surge Protection	10KV (Default) / 20KV (available on request) with IEC61643-11
IP Rating	IP66
IK Rating	IK09
CCT	2200K, 3000K, 4000K, 5000K, 5700K, 6500K
CRI	Ra>70 (Default) / Ra>80
Operating Temperature	-40°C to + 50°C
Beam Angle	Type II, Type III, Type V
Mounting Option	Side entry, or vertical pole mounted with adapters
Warranty	5 Years
Certification/Report	CE, RoHS, ENEC, ENEC+, CB, Zhaga-D4i, LM79, LM80, TM-21, IP66, IK09, IEC62471/62778, IEC60068-2-6, IEC61643-11, ISO9001
Control	Daylightsensor, DALI Dimmable, NEMA / Zhaga Socket, Motion Sensor, 1-10V Dimmable, Zigbee or LORA control

TYPE II

TYPE III

TYPE V

Specifications GD30

User manual GD30A

User manual GD30B

User manual GD30C

庭院灯案例08

庭院灯案例07

庭院灯案例06

庭院灯案例05

庭院灯案例04

庭院灯案例03

Frequently Asked Questions

What are the installation steps of LED garden lights?

Installation steps:

① Site selection: Make sure the ground is flat and away from trees or building shadows;

② Digging pits: The size of the foundation pit is usually 3 times the diameter of the lamp pole (e.g. a Φ60mm pole requires a Φ180mm pit);

③ Embedded parts: Use M20 bolts to fix the flange and pour C25 concrete (curing for 7 days);

④ Wiring: Connect the live wire (L), neutral wire (N), and ground wire (PE), and wrap with waterproof tape;

⑤ Debugging: After power on, use a lux meter to measure the light uniformity within a radius of 5m ≥0.4.

What control methods does the smart garden light support?

Optional functions:

Human sensing radar: Brightness increases to 100% after detecting a person (standby power consumption <1W);

WiFi/Bluetooth remote control: color temperature adjustment and timer switch by mobile phone APP;

Light control + time control: automatic brightness adjustment (such as turning on 30 minutes after sunset).

Protocol compatibility: DALI, 0-10V, Zigbee 3.0 (can be linked with smart home).

Maintenance cycle and precautions for garden lamps?

Maintenance suggestions:

① Every 6 months: Check the waterproof glue of the junction box (replace the silicone ring if it is aged);

② Every 2 years: Use an infrared thermal imager to detect the temperature of the driving power supply (should be <75℃);

③ Irregularly: Clean the lens (avoid mosquitoes/dust that reduce the light efficiency by 30%).

Maintenance-free design: Our products adopt modular structure, and it only takes 3 minutes to replace the LED module.

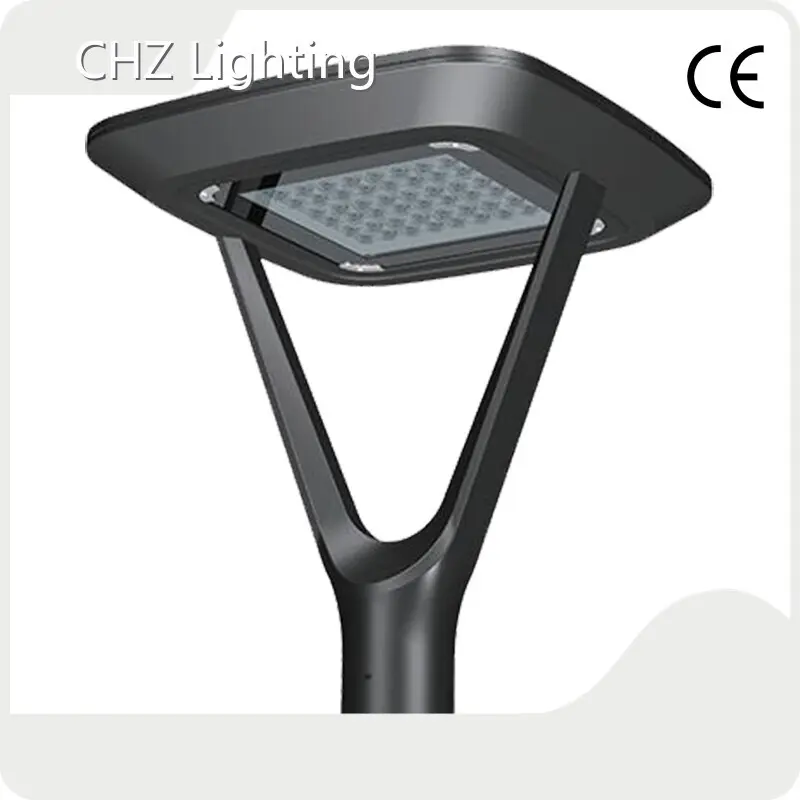

GD30 series garden lights use high-quality die-cast aluminum housing, with super high waterproof and heat dissipation performance, protection level IP66 and IK10. GD30 series garden lights use high-brightness LED chips, with a light efficiency greater than 130lm/W, a warranty period of 5 years, and significant energy saving and consumption reduction. Surge protection 10KV and 20KV. GD30 series has CE, CB, ENEC, ENEC+ and ROHS quality certificates, basically covering the requirements of most markets.

GD30 series garden lights provide conventional, timing, 0-10V and DALI dimming control methods; at the same time, sensors can be selected according to different application scenarios.

GD30 series LED garden lights have 4 styles according to the number of arms: A: one arm; B: 2 arms; C: 4 arms; D no arms. Widely used in outdoor environments such as urban parks, rural roads, slow lanes, industrial parks, leisure squares, etc.

Related Products

CHZ-GD01A outdoor garden light

CHZ-GD02 LED Garden Lighting

CHZ-GD32 round led garden lamp

CHZ-GD35 Series LED Garden Light Fixture Waterproof IP66

Related Blogs

CHZ garden lighting case | led garden lights GD01 in the town of Valladolid Olmedo

CHZ lighting case garden street light wholesale | Garden Lights lighting up San Diego

CHZ courtyard lightingLighting completed the road renovation project of a small town in Spain

CHZ Lighting Technology case | led luminaire street light of lighting in Palenciana (Cordoba)

CHZ-GD01A garden lights are widely used on the streets of Greece

New Garden Light Replacement Project in Spain |CHZ-GD30 garden lamp

CHZ CASE |GD34A Street light in Urban Road in URUGUAY

Courtyard lamp GD09 adds glory to Lagos hotel

Best led garden light manufacturer, factory and supplier in China

We are a LED garden light manufacturer, factory, and supplier in China since 2013. The factory is ISO9001, ISO14001, ISO45001, and ISO50001 certified. We are very good at designing, producing, and developing various high-quality led lights and we are also a high-tech enterprise in Shanghai.

OEM/ODM is acceptable for us. All garden light is made of good materials for up to 100,000hrs, ENEC, CB, and CE RoHS certificates. The Photocell, NEMA/ZHAGA socket, smart control, 0-10V, DALI, DALI2 can be available.

Please feel free to consult all questions about garden lighting projects. We will provide free garden lighting design, the best products, the best service, and the price you like.

Why choose us as your led garden light supply in China?

OEM/ODM

Available to do OEM/ODM for all garden luminaire. No MOQ limits for led garden lights retailers, wholesalers, and engineering companies.

FAST DELIVERY TIME

As a reliable garden light supplier, we have stocks of raw materials for street lights, regular delivery time is 5~7 working days for samples order and 20~25 working days for bulk order.

BEST QUALITY&PRICE

We use top stable quality led driver and chips like Philips driver and chips for all road lights. Providing 5/7 years warranty at the cheapest price.

CERTIFICATES

Our smart street light are ENEC, ENEC+, CB, CE, RoHS, IECEE, SAA, and ETL approved, and our factory ISO9001, ISO14001, ISO45001, and ISO50001 certified.

Certification Show

As a professional manufacturer of led garden light luminaire, our garden luminaire have rich certification and test reports, such as ENEC, ENEC+, CE, CB, ROHS, IEC62471, LM80, LM79, and so on

ISO9001

ISO14001

ISO45001

ISO50001

ENEC

ENEC+

CCC

ETL

SAA

COMPONENT	STANDARDS	TEST REPORT	CERTIFICATIONS
LED	LM80	✔
SMD2835SMD3030SMD5050SMD3535SMD3737	EN/IEC 60598-1 y 60598-2-3	✔	✔
	IEC 62471	✔	✔
	EN/IEC 60529	✔	✔
	EN/IEC 62262	✔
	EN/IEC 60068-2-75	✔	✔
	EN/IEC 55015	✔	✔
	EN/IEC 61000-3-2	✔	✔
	EN 61547	✔	✔
	EN 61000-3-3	✔	✔
	LM79	✔	✔
	ISTMT	✔	✔
	TM-21	✔
	LM82	✔	✔
	LM84	✔	✔
	ISO9007 /ASTM B117	✔	✔
	IEC 60068-2-6/ANSI C136.31	✔	✔
LED MODULE	EN/IEC 62031	✔	✔
LED DRIVER	IEC 62384,IEC 61347-1,IEC 61347-2-13	✔	✔
SPD	EN/IEC 61643-11	✔	✔
FACTORY	ISO9001,ISO14001,ISO50001,ISO45001		✔
