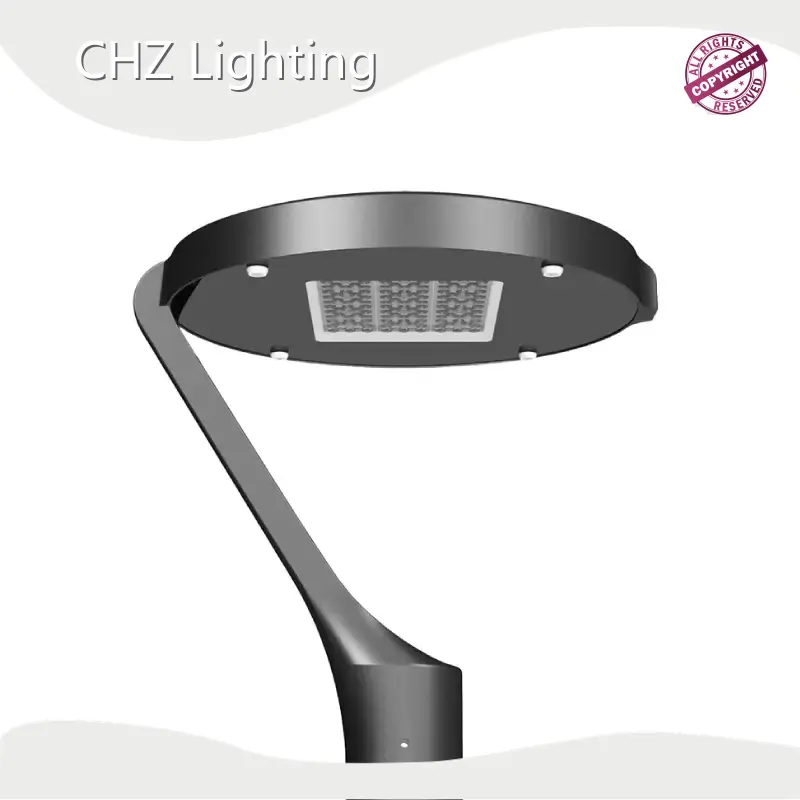

Outdoor Yard Light Price List-1

Product details of the outdoor yard light

Product Overview

CHZ Lighting outdoor yard light is designed as per the consumers' needs and high-quality standards. The product has passed the tests on various quality parameters conducted by our experienced quality control team. CHZ Lighting's outdoor yard light is widely used in the industry. Shanghai CHZ Lighting Co.,Ltd has been adhering to the purpose of providing quality services.

Product Introduction

Next, CHZ Lighting will show you the details of outdoor yard light.

Description

Datasheet

Optics

Videos

Download

Application

FAQ

Model No.	CHZ-GD29K (K=A, B, C, which means different brackets)
Power	20W, 30W, 40W, 50W, 60W, 90W, 120W
Efficacy	>150lm/W or above
Input Voltage	100-240/277 VAC, 50/60 Hz
Power Factor	>0.95
Surge Protection	10KV (Default) / 20KV (available on request) with IEC61643-11
IP Rating	IP66
IK Rating	IK09 or IK10
CCT	2200K, 3000K, 4000K, 5000K, 5700K, 6500K
CRI	Ra>70 (Default) / Ra>80
Operating Temperature	-40°C to + 50°C
Beam Angle	Type II, Type III, Type V
Mounting Option	Side entry, or vertical pole mounted with adapters
Warranty	5 Years
Certification/Report	CE, RoHS, ENEC, ENEC+, CB, Zhaga-D4i, LM79, LM80, TM-21, IP66, IK09/IK10, IEC62471/62778, IEC60068-2-6, IEC61643-11, ISO9227, CISPR15:2018
Control	Daylightsensor, DALI Dimmable, NEMA / Zhaga Socket, Motion Sensor, 1-10V Dimmable, Zigbee or LORA control



TYPE II

150°×70°

TYPE III

140°×80°

TYPE V

140°×40°

×

Specifications GD29

User manual GD29

庭院灯案例08

庭院灯案例07

庭院灯案例06

庭院灯案例05

庭院灯案例04

庭院灯案例03

Frequently Asked Questions

What are the differences between European and American standards (EN60598 vs. UL1598)?

            Project                                                     EN60598 (EU)                                                                          UL1598 (US)

Temperature resistance test                   Ta = 25°C + 5°C abnormality test                                         7 days of aging in a 70°C oven

Wire gauge                                               Minimum 1mm² cross-section                                             18AWG (approximately 0.82mm²)

Waterproof test                                         IPX4 spray (angle adjustable)                                            3 minutes, 3m high-pressure water jet impact

Warranty terms details? What kind of man-made damage is not covered by warranty?

Warranty scope:

✅ 5-year warranty: LED light source, driver power supply (with purchase receipt);

❌ Items not covered by warranty:

Lightning strike/voltage instability burnout (no SPD protector installed);

Self-modified circuit;

Sea salt spray corrosion (no coastal special model selected).

Value-added service: You can purchase an extended warranty of up to 10 years (the cost is about 15% of the product price).

How to prevent moths and other insects from gathering?

Insect Control Technology:

Spectral Optimization: Uses a long-wavelength light source >550nm (insects have weak phototaxis);

Physical Isolation: Adds a nano-oleophobic coating to the lens (insect carcasses are easily rinsed);

Accessory Upgrade: Optional insect trap (replace monthly).

CHZ-GD29 Series LED garden light outdoor ip66
