Product details of the street high mast light

Product Information

The technology CHZ Lighting street high mast light adopts is at the forefront of industry. street high mast light has remarkable performance. The product is trustworthy and believed to has a wider application in the future.

>> CHZ products are designed for the global market. Please contact our sales team for certification details.

>> Products information is for reference only. Some options may not be available for each configuration. Please contact us for further details.

Model No.	CHZ-FL43 series
Power	50W, 60W, 100W, 120W, 150W, 180W, 200W, 240W, 250W, 300W, 400W, 480W, 500W, 600W
Efficacy	>150lm/W or above
Input Voltage	100-240/277 VAC, 50 / 60 Hz
Power Factor	>0.95
Surge Protection	10KV (Default) / 20KV (available on request) with IEC61643-11
IP Rating	IP66
IK Rating	IK08 or IK09
CCT	2200K, 3000K, 4000K, 5000K, 5700K, 6500K
CRI	Ra>70 (Default) / Ra>80
Operating Temperature	-40°C to + 50°C
Beam Angle	25°, 45°, 60°, 90°, 60°×120°, TYPE III
Mounting Option	Side entry, or vertical pole mounted with adapters
Warranty	5 Years
Certification/Report	CE, RoHS, ENEC, ENEC+, CB, Zhaga-D4i, LM79, LM80, TM-21, IP66, IK09/IK10, IEC62471/62778, IEC60068-2-6, IEC61643-11, ISO9227, CISPR15:2018
Control	Daylightsensor, DALI Dimmable, NEMA / Zhaga Socket, Motion Sensor, 1-10V Dimmable, Zigbee or LORA control

Street High Mast Light by CHZ Lighting-1 20

25°

45°

60°

90°

90°×120°

Street High Mast Light by CHZ Lighting-1 25

TYPE I

140°×70°

Street High Mast Light by CHZ Lighting-1 26

Specifications FL43

User manual FL43

Street High Mast Light by CHZ Lighting-1 28

Street High Mast Light by CHZ Lighting-1 29

Street High Mast Light by CHZ Lighting-1 30

Street High Mast Light by CHZ Lighting-1 31

Street High Mast Light by CHZ Lighting-1 32

Street High Mast Light by CHZ Lighting-1 33

Frequently Asked Questions

What's customized dimming profile?

The so-called dimming profile refers to a specific timer dimming function. Rural roads and urban roads have different needs for dimming configurations. At the same time, the timer dimming function of lamps can be customized. For example, rural roads usually have fewer people after 10 p.m., and the dimming curve can be maintained at 100% brightness from 18:00 to 22:00, and adjusted to 50% brightness from 22:00 to 06:00; while the situation on urban roads may require delaying the time by 1-2 hours. The dimming curve can be set to maintain 100% brightness from 18:00 to 24:00, and adjust to 50% brightness from 24:00 to 06:00. CHZ can customize such a dimming curve for you, please contact us for more information.

Dali +timer dimming or 0-10V+timer dimming?

Dimming profile uses the dimming function of the lamp. For example, if 0-10V + timer dimming is used, after setting the timer dimming of the lamp, the controller sends a 0-10V dimming signal to the power supply of the lamp, but the power supply will not perform the dimming operation. And if your lamp is configured with Dali + timer dimming, then after setting the timer dimming, the controller sends a Dali dimming signal to the power supply of the lamp, and the power supply can still execute the instructions of the Dali signal. However, it should be noted that the cost of lamps in the latter is often much higher than that in the former. If your budget is limited, it is recommended to choose the former; if your budget is sufficient, it is best to choose the latter.

Which power supplies can be configured with timer dimming function?

Power supply manufacturers such as Inventronics, Osram, Philips, Done, and Meanwell all provide scheduled dimming functions. CHZ recommends using the timed dimming function of Inventronics, because Inventronics is comparable to Philips and Osram in terms of dimming and product quality, and the price is more affordable. If your budget is limited, Dong’s power supply is also a good choice.

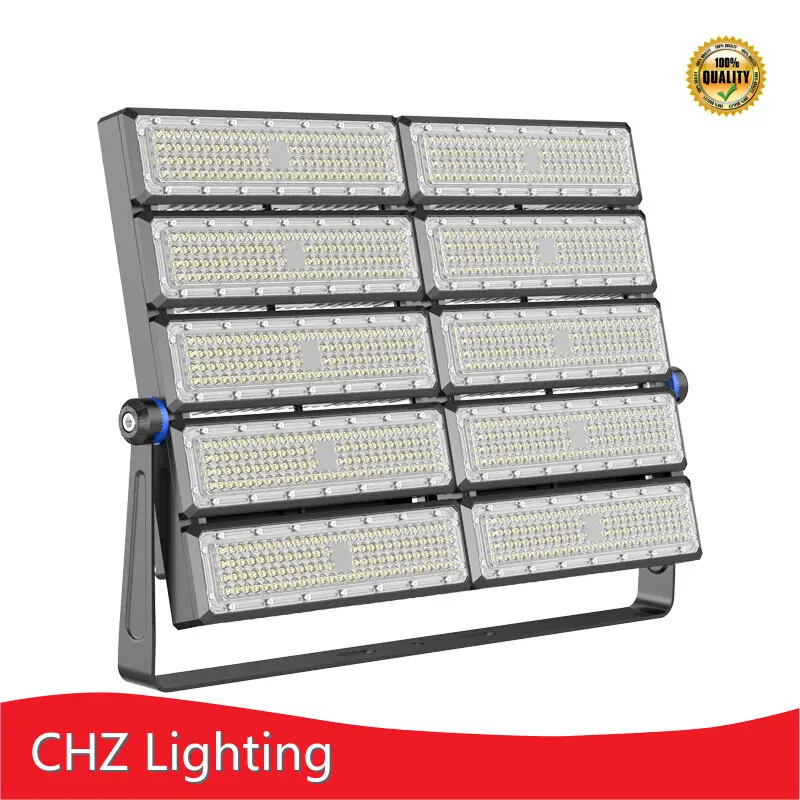

FL43 sports field lighting is available in 50W, 100W, 150W, 200W, 250W, 400W and 500W. Its ultra-high luminous flux can reach 75,000 lumens, making it suitable for lighting large areas such as large sports fields, docks, airports, etc. Up to five different beam angles ensure uniform field lighting and reduce glare. Its unique finned aluminum heat sink effectively increases the heat dissipation area and airflow channel, reduces the operating temperature of the LED chip, and thus slows down light decay. In addition, accessories such as glare shields and aiming devices are also available, making it an ideal sports field lighting fixture.

The FL43 is a great LED Stadium light with an optimized design for heat dissipation, the large grills on the back ensure that the overall lifespan of the light reaches over 50000 hours.

As for retrofitting, the FL43 is a lightweight product that can fit on a lot of our client's current poles without having to update, since 500W will be plenty when it comes with over 150lm/W of lumen efficiency. Not to mention, it can also be made into special beam angles of 80°*140° and 90°*120°, ensuring the lighting effect for the project.

That makes the FL43 suitable for junctions, elevated roads, and a lot of other places, including indoor/outdoor sport fields and complexes, resorts and etc.
