Company Advantages

· CHZ Lighting yard lights is manufactured utilizing quality checked material that are obtained from the most trusted vendors of the industry.

· The product is widely recognized for good reliability and usability.

· The demand for products continues to increase, and the market prospects for products are promising.

>> CHZ products are designed for the global market. Please contact our sales team for certification details.

>> Products information is for reference only. Some options may not be available for each configuration. Please contact us for further details.

Model No.	CHZ-GD30K (K=A, B, C, D, E, F, which means different brackets)
Power	20W, 30W, 40W, 50W, 60W, 90W, 120W
Efficacy	>130lm/W
Input Voltage	100-240/277 VAC, 50/60 Hz
Power Factor	>0.95
Surge Protection	10KV (Default) / 20KV (available on request) with IEC61643-11
IP Rating	IP66
IK Rating	IK09
CCT	2200K, 3000K, 4000K, 5000K, 5700K, 6500K
CRI	Ra>70 (Default) / Ra>80
Operating Temperature	-40°C to + 50°C
Beam Angle	Type II, Type III, Type V
Mounting Option	Side entry, or vertical pole mounted with adapters
Warranty	5 Years
Certification/Report	CE, RoHS, ENEC, ENEC+, CB, Zhaga-D4i, LM79, LM80, TM-21, IP66, IK09, IEC62471/62778, IEC60068-2-6, IEC61643-11, ISO9001
Control	Daylightsensor, DALI Dimmable, NEMA / Zhaga Socket, Motion Sensor, 1-10V Dimmable, Zigbee or LORA control

TYPE II

TYPE III

TYPE V

Yard Lights Garden Lighting Wholesale - CHZ Lighting 22

Specifications GD30

User manual GD30A

User manual GD30B

User manual GD30C

庭院灯案例08

庭院灯案例07

庭院灯案例06

庭院灯案例05

庭院灯案例04

庭院灯案例03

Frequently Asked Questions

What are the installation steps of LED garden lights?

Installation steps:

① Site selection: Make sure the ground is flat and away from trees or building shadows;

② Digging pits: The size of the foundation pit is usually 3 times the diameter of the lamp pole (e.g. a Φ60mm pole requires a Φ180mm pit);

③ Embedded parts: Use M20 bolts to fix the flange and pour C25 concrete (curing for 7 days);

④ Wiring: Connect the live wire (L), neutral wire (N), and ground wire (PE), and wrap with waterproof tape;

⑤ Debugging: After power on, use a lux meter to measure the light uniformity within a radius of 5m ≥0.4.

What control methods does the smart garden light support?

Optional functions:

Human sensing radar: Brightness increases to 100% after detecting a person (standby power consumption <1W);

WiFi/Bluetooth remote control: color temperature adjustment and timer switch by mobile phone APP;

Light control + time control: automatic brightness adjustment (such as turning on 30 minutes after sunset).

Protocol compatibility: DALI, 0-10V, Zigbee 3.0 (can be linked with smart home).

Maintenance cycle and precautions for garden lamps?

Maintenance suggestions:

① Every 6 months: Check the waterproof glue of the junction box (replace the silicone ring if it is aged);

② Every 2 years: Use an infrared thermal imager to detect the temperature of the driving power supply (should be <75℃);

③ Irregularly: Clean the lens (avoid mosquitoes/dust that reduce the light efficiency by 30%).

Maintenance-free design: Our products adopt modular structure, and it only takes 3 minutes to replace the LED module.

GD30 series garden lights use high-quality die-cast aluminum housing, with super high waterproof and heat dissipation performance, protection level IP66 and IK10. GD30 series garden lights use high-brightness LED chips, with a light efficiency greater than 130lm/W, a warranty period of 5 years, and significant energy saving and consumption reduction. Surge protection 10KV and 20KV. GD30 series has CE, CB, ENEC, ENEC+ and ROHS quality certificates, basically covering the requirements of most markets.

GD30 series garden lights provide conventional, timing, 0-10V and DALI dimming control methods; at the same time, sensors can be selected according to different application scenarios.

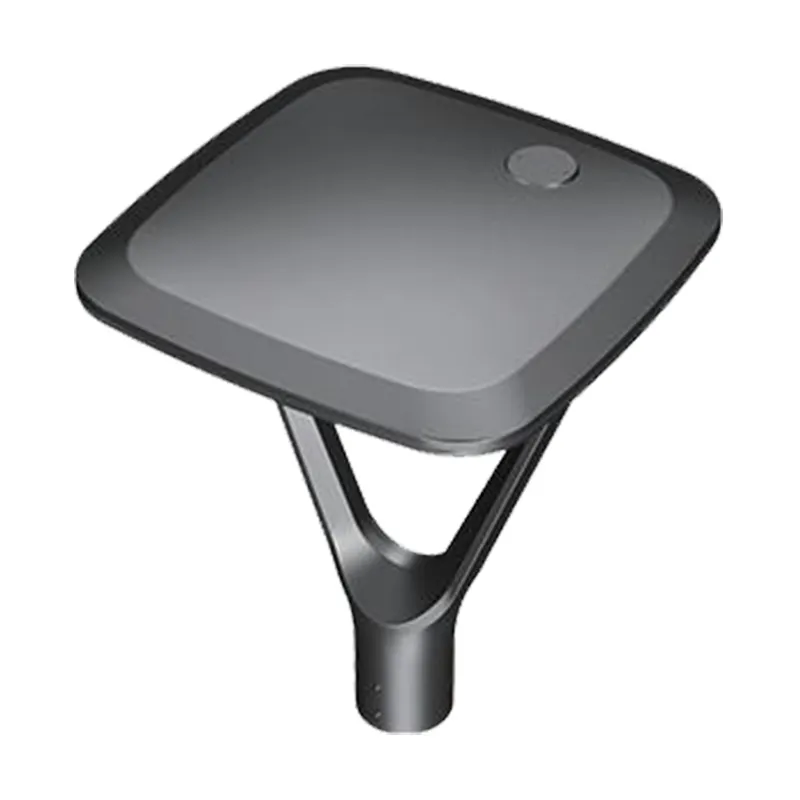

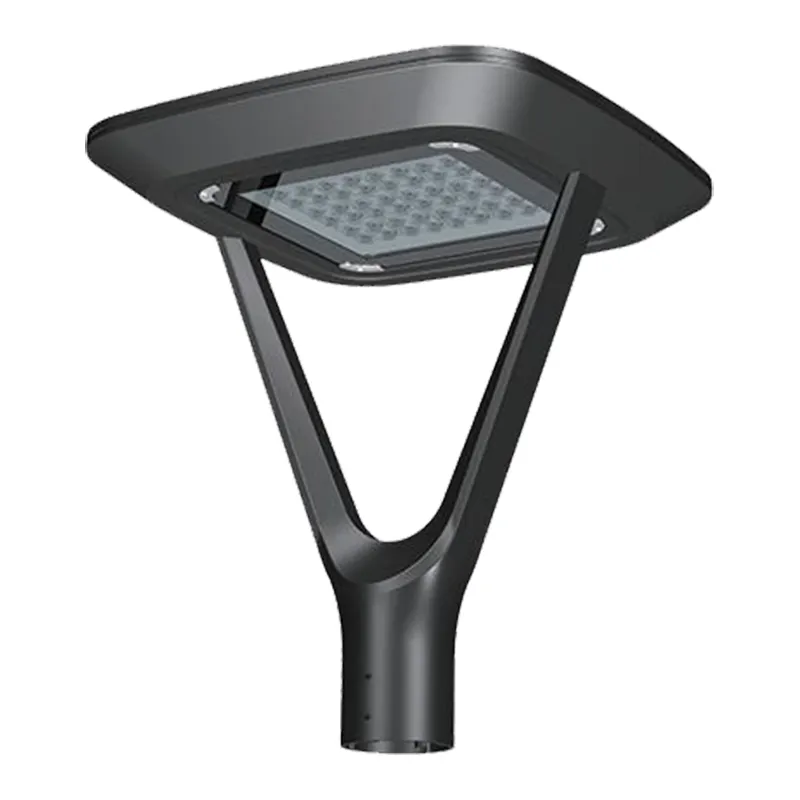

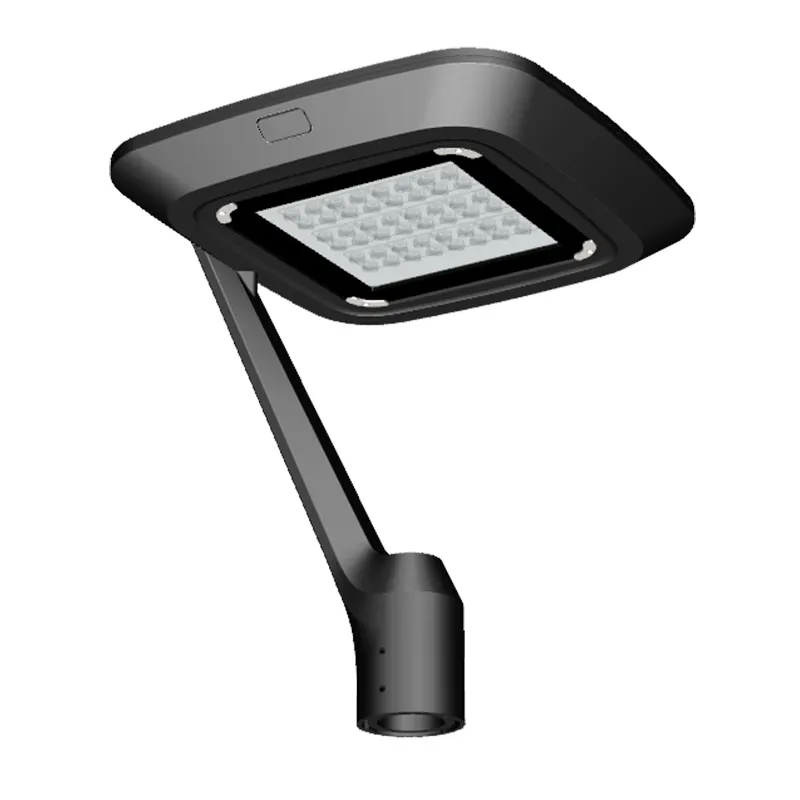

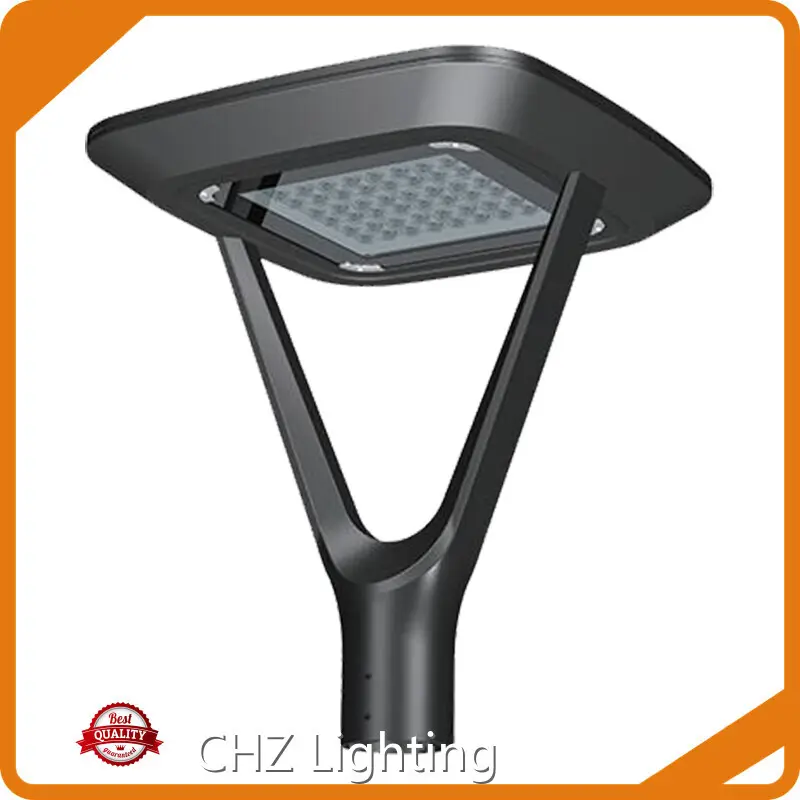

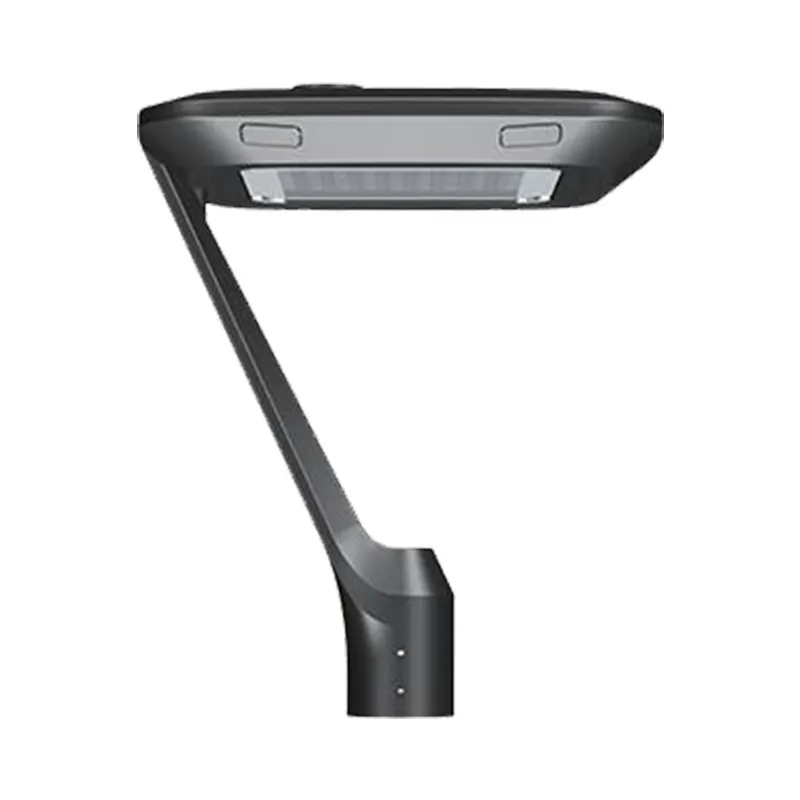

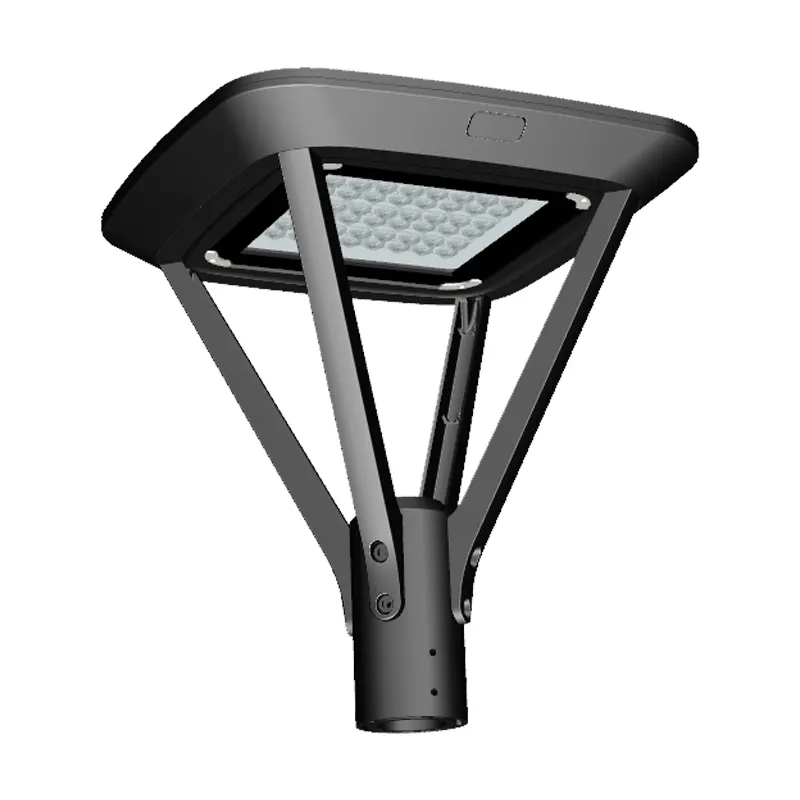

GD30 series LED garden lights have 4 styles according to the number of arms: A: one arm; B: 2 arms; C: 4 arms; D no arms. Widely used in outdoor environments such as urban parks, rural roads, slow lanes, industrial parks, leisure squares, etc.

Related Products

Yard Lights Garden Lighting Wholesale - CHZ Lighting 32

CHZ-GD01A outdoor garden light

Yard Lights Garden Lighting Wholesale - CHZ Lighting 33

CHZ-GD02 LED Garden Lighting

Yard Lights Garden Lighting Wholesale - CHZ Lighting 34

CHZ-GD32 round led garden lamp

Yard Lights Garden Lighting Wholesale - CHZ Lighting 35

CHZ-GD35 Series LED Garden Light Fixture Waterproof IP66

Related Blogs

Yard Lights Garden Lighting Wholesale - CHZ Lighting 36

CHZ garden lighting case | led garden lights GD01 in the town of Valladolid Olmedo

Yard Lights Garden Lighting Wholesale - CHZ Lighting 37

CHZ lighting case garden street light wholesale | Garden Lights lighting up San Diego

CHZ courtyard lightingLighting completed the road renovation project of a small town in Spain

CHZ Lighting Technology case | led luminaire street light of lighting in Palenciana (Cordoba)

CHZ-GD01A garden lights are widely used on the streets of Greece

New Garden Light Replacement Project in Spain |CHZ-GD30 garden lamp

CHZ CASE |GD34A Street light in Urban Road in URUGUAY

Courtyard lamp GD09 adds glory to Lagos hotel

Best led garden light manufacturer, factory and supplier in China

We are a LED garden light manufacturer, factory, and supplier in China since 2013. The factory is ISO9001, ISO14001, ISO45001, and ISO50001 certified. We are very good at designing, producing, and developing various high-quality led lights and we are also a high-tech enterprise in Shanghai.

OEM/ODM is acceptable for us. All garden light is made of good materials for up to 100,000hrs, ENEC, CB, and CE RoHS certificates. The Photocell, NEMA/ZHAGA socket, smart control, 0-10V, DALI, DALI2 can be available.

Please feel free to consult all questions about garden lighting projects. We will provide free garden lighting design, the best products, the best service, and the price you like.

Why choose us as your led garden light supply in China?

Yard Lights Garden Lighting Wholesale - CHZ Lighting 45

OEM/ODM

Available to do OEM/ODM for all garden luminaire. No MOQ limits for led garden lights retailers, wholesalers, and engineering companies.

Yard Lights Garden Lighting Wholesale - CHZ Lighting 46

FAST DELIVERY TIME

As a reliable garden light supplier, we have stocks of raw materials for street lights, regular delivery time is 5~7 working days for samples order and 20~25 working days for bulk order.

Yard Lights Garden Lighting Wholesale - CHZ Lighting 47

BEST QUALITY&PRICE

We use top stable quality led driver and chips like Philips driver and chips for all road lights. Providing 5/7 years warranty at the cheapest price.

Yard Lights Garden Lighting Wholesale - CHZ Lighting 48

CERTIFICATES

Our smart street light are ENEC, ENEC+, CB, CE, RoHS, IECEE, SAA, and ETL approved, and our factory ISO9001, ISO14001, ISO45001, and ISO50001 certified.

Certification Show

As a professional manufacturer of led garden light luminaire, our garden luminaire have rich certification and test reports, such as ENEC, ENEC+, CE, CB, ROHS, IEC62471, LM80, LM79, and so on

ISO9001

ISO14001

ISO45001

ISO50001

ENEC

ENEC+

CCC

ETL

SAA

COMPONENT	STANDARDS	TEST REPORT	CERTIFICATIONS
LED	LM80	✔
SMD2835SMD3030SMD5050SMD3535SMD3737	EN/IEC 60598-1 y 60598-2-3	✔	✔
	IEC 62471	✔	✔
	EN/IEC 60529	✔	✔
	EN/IEC 62262	✔
	EN/IEC 60068-2-75	✔	✔
	EN/IEC 55015	✔	✔
	EN/IEC 61000-3-2	✔	✔
	EN 61547	✔	✔
	EN 61000-3-3	✔	✔
	LM79	✔	✔
	ISTMT	✔	✔
	TM-21	✔
	LM82	✔	✔
	LM84	✔	✔
	ISO9007 /ASTM B117	✔	✔
	IEC 60068-2-6/ANSI C136.31	✔	✔
LED MODULE	EN/IEC 62031	✔	✔
LED DRIVER	IEC 62384,IEC 61347-1,IEC 61347-2-13	✔	✔
SPD	EN/IEC 61643-11	✔	✔
FACTORY	ISO9001,ISO14001,ISO50001,ISO45001		✔

R & D Team

研发图片 (1).png

研发图片 (6).png

研发图片 (7).png

研发图片 (2).png

研发图片 (4).png

研发图片 (5).png

Product Testing

In order to ensure the high quality of each product, we will conduct more than 30 different aspects of testing in our own laboratory before the product goes on the market. After all the tests are passed, the product can be approved for marketing. In mass production, for some basic safety and performance tests, we will conduct 100% testing to ensure that every product delivered to the customer is perfect.





Production Process

生产图片 (3).png

生产图片 (2).png

生产图片 (1).png

生产图片 (6).png

生产图片 (5).png

生产图片 (4).png

Company Features

· CHZ Lighting is developing into a leading yard lights maker.

· We have strong technical support from a work team with years of manufacturing experiences in the yard lights industry. They are capable of customizing and offering products completely in line with customers' requirements. They have never let our clients disappointed. We have our own integrated design team in our factory. This enables us to develop new products and adapt our range of products to customers' specifications. We exporting 90% of our products in overseas markets, such as Japan, the USA, Canada, and Germany. Our competence and presence in overseas market obtain the recognization. This means our products especially yard lights are popular in the overseas market.

· Excellence comes from our professionalism in the industry of yard lights. Check it!

Application of the Product

yard lights of CHZ Lighting has very extensive application in different scenarios.

CHZ Lighting is committed to providing customers with high-quality flood light,flood light factory,led flood light china,led street light manufacturers,Street lighting,Garden lighting,Sport lighting as well as one-stop, comprehensive and efficient solutions.

Parameters

Model No.	Power(W)	Chips	Chips Qty	Chips S/P	Protection Class	Lumen(LM/W)	Size(L×W×H)mm
GD30C-30W	30W	SMD3030	144	8S18P	Class I	>130	D480×538
GD30C-40W	40W	SMD3030	144	8S18P	Class I	>130	D480×538
GD30C-50W	50W	SMD3030	144	8S18P	Class I	>130	D480×538
GD30C-60W	60W	SMD3030	144	8S18P	Class I	>130	D480×538
GD30C-90W	90W	SMD3030	192	8S24P	Class I	>130	D480×538
GD30C-120W	120W	SMD3030	192	8S24P	Class I / II	>130	D480×538
GD30C-30W	30W	SMD3030	192	8S24P	Class II	>130	D480×538
GD30C-40W	40W	SMD3030	192	8S24P	Class II	>130	D480×538
GD30C-50W	50W	SMD3030	192	8S24P	Class II	>130	D480×538
GD30C-60W	60W	SMD3030	192	8S24P	Class II	>130	D480×538
GD30C-80W	80W	SMD3030	192	8S24P	Class II	>130	D480×538
GD30C-100W	100W	SMD3030	192	8S24P	Class II	>130	D480×538

Product Features

1) The simple design of the whole lamp is beautiful and generous; at the same time it can be disassembled, the package is small in size and convenient for transportation;
2) The lamp body is made of aluminum die-casting material, galvanized and surface electrostatically sprayed. The conventional colors are gray and black (Color Reference, RAL 9005/7015 RAL), the surface is smooth and corrosion-resistant;
3) The dual diffuser illuminance diffuser makes the light more uniform, no glare, and the light is more comfortable;
4) The whole lamp has good protection performance and reaches IP66 and IK09. It has reliable performance and is not easy to be damaged.
5) Imported 3030E light source and high performance drive, stable operation, high luminous efficiency and long service life;
6) Easily handled by hand, tool free. When operation, it will be switched off. Make sure safety of the technicians.
7) It can be matched with photocell on the top. So that intelligent control can be realized.

Yard Lights Garden Lighting Wholesale - CHZ Lighting 78

Light distribution curve：

Yard Lights Garden Lighting Wholesale - CHZ Lighting 79

145°x80°

Yard Lights Garden Lighting Wholesale - CHZ Lighting 80

150°x150°

Yard Lights Garden Lighting Wholesale - CHZ Lighting 81

Yard Lights Garden Lighting Wholesale - CHZ Lighting 82

Yard Lights Garden Lighting Wholesale - CHZ Lighting 83

Applications

Widely used in urban roads, parking lots, bicycle lanes, gardens, plazas, residential areas and other outdoor venues.

Yard Lights Garden Lighting Wholesale - CHZ Lighting 84
